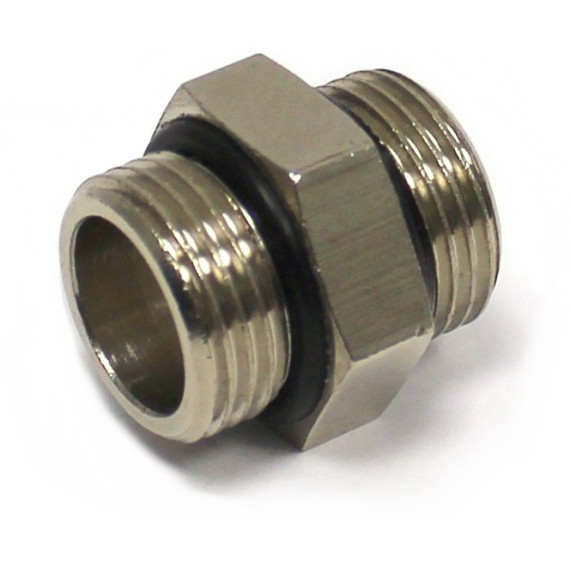

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Do you have any questions about the product?
We will be happy to answer them in messengers

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Name: Bronze fitting of the SF-Z2500 series straight nipple with external thread
Brand: Specialist
SKU: SF-Z2500 M5
Price: 46.02 UAH
Availability: InStock

In Stock

Thread size

M5 G 1/8 G 1/4 G 3/8 G 1/2

Model

SF-Z2500 M5

Manufacturer

Specialist

from 31,44 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 5 variants


Name

Model Price Availability Qty

Action

SF-Z2500 M5

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Thread size=M5

SF-Z2500 M5

46,02 UAH

In Stock

SF-Z2500 1/8

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Thread size=G 1/8

SF-Z2500 1/8

31,44 UAH

In Stock

SF-Z2500 1/4

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Thread size=G 1/4

SF-Z2500 1/4

61,44 UAH

In Stock

SF-Z2500 3/8

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Thread size=G 3/8

SF-Z2500 3/8

84,30 UAH

In Stock

SF-Z2500 1/2

Bronze fitting of the SF-Z2500 series straight nipple with external thread

Thread size=G 1/2

SF-Z2500 1/2

140,04 UAH

In Stock

Technical specifications

Connection type

With external thread

Thread

M5, G 1/8", G 1/4", G 3/8", G 1/2"

Body material

Nickel-plated bronze

Inlet pressure

35 bar

Variations

The connector is straight through, Nipple

Fitting type

Direct

Description

The SF-Z2500 series bronze threaded fitting is a metal straight equal diameter nipple adapter with the same external thread ("male") on both sides. Connection threads can be metric M5, or pipe cylindrical G1/8", G1/4", G3/8", G1/2", G3/4", G1".

Nickel-plated bronze is used for the production of metal threaded fittings. SF-Z2500 series fittings are designed for use with compressed air under high pressure up to 35 bar (3.5 MPa). When used with other working media compatible with the fitting materials, the allowable working pressure and temperature may differ from the table values specified for compressed air.
