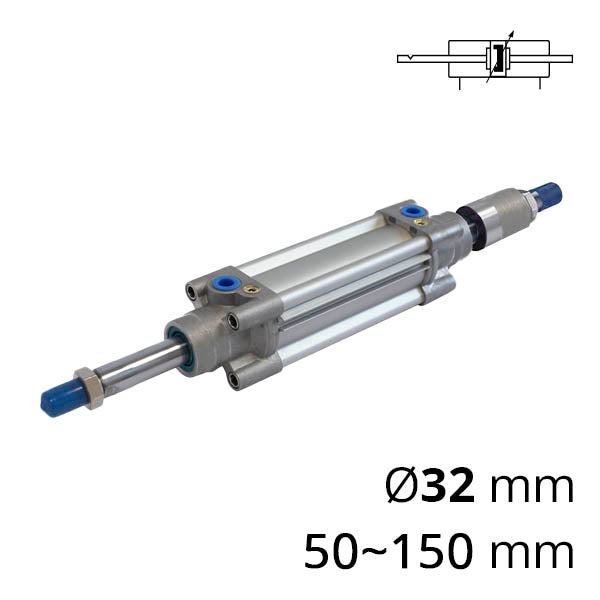

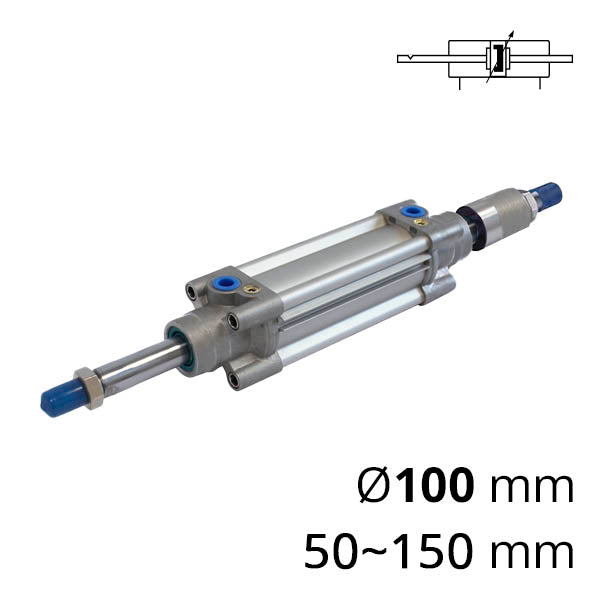

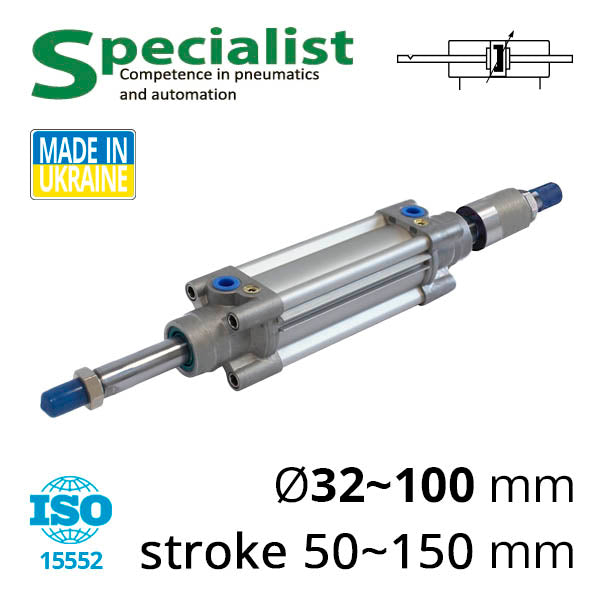

The double-acting pneumatic cylinder of the SC-CPIJ series features a through rod and adjustable stroke length. It includes air cushioning and is capable of tasks such as moving objects or clamping with a high force — up to 48,000 Newton (at Ø320 mm, 7 bar). Interchangeable with pneumatic cylinders from other manufacturers made with standardized dimensions and mounting sizes according to ISO 15552 (ISO 6431, VDMA 24562).
We manufacture pneumatic cylinders with adjustable stroke from 5 to 1500 mm (see table) and piston diameters of from 32 to 320 mm.
| Piston diameter, mm | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Connection thread for air supply | G1/8" | G3/8" | G1/2" | — | |||||||
| Maximum stroke length, mm | 1000 | 1200 | 1500 | — | |||||||
| Cushioning, mm | 24 | 22 | 32 | 42 | — | ||||||
| Action | Double-acting | ||||||||||
| Type | With adjustable stroke | ||||||||||
| Standard | ISO15552, ISO6431 | ||||||||||
| Magnet on piston | With magnet (default), without magnet (on order) | ||||||||||
| Type of magnetic sensor for completion | SC-CMS-E/SC-DMS-E | ||||||||||
| Operating medium | Compressed air, filtration fineness 40 μm | ||||||||||
| Operating pressure range | 0.1-10 bar | ||||||||||
| Maximum input pressure | 12 bar | ||||||||||
| Operating temperature range | -10...70 ℃ (dry air without moisture) | ||||||||||
Based on the SC-CPIJ pneumatic cylinders, we can manufacture tandems, triads of pneumatic cylinders for increased force.
