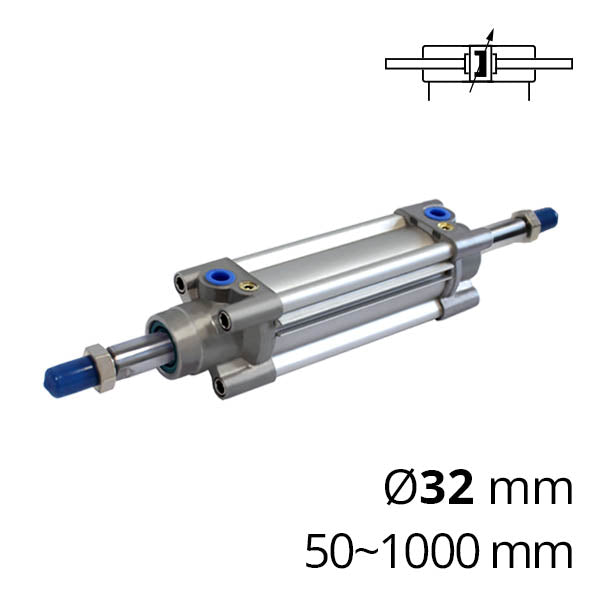

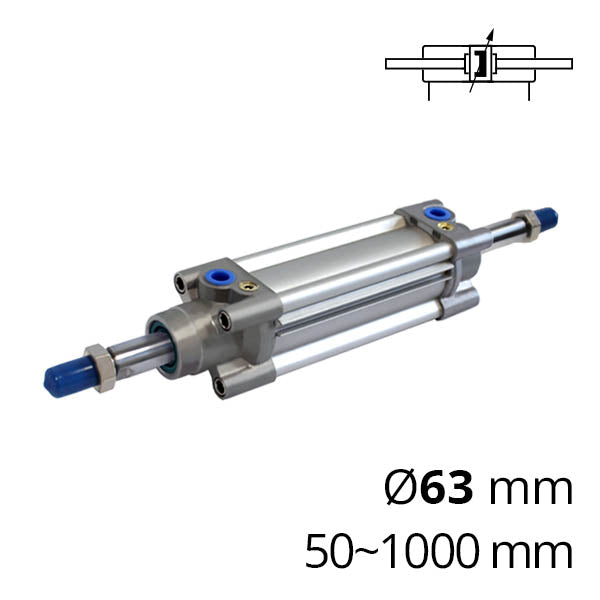

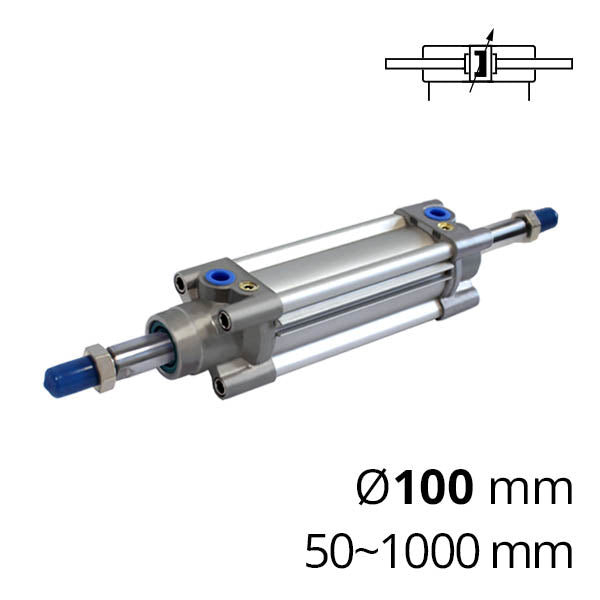

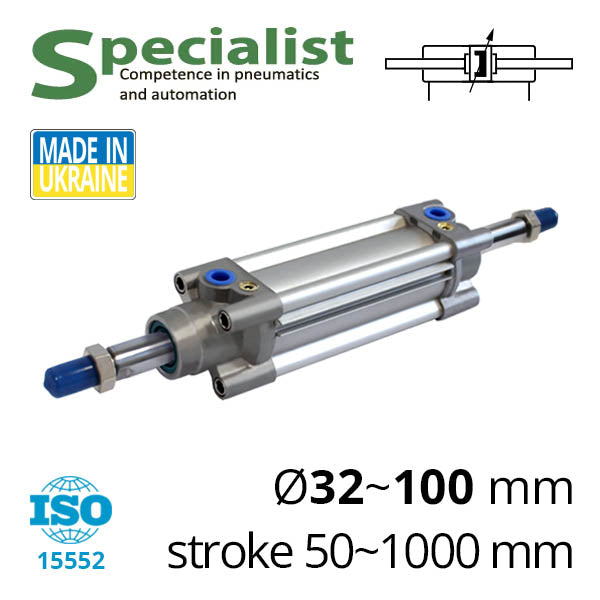

The SC-CPID series two-way pneumatic power cylinder with through rod features a profile tube with T-slot sensor grooves known as 'Mickey Mouse'. They are interchangeable with other through rod pneumatic cylinders manufactured in accordance with ISO 15552 (ISO 6431, VDMA 24562), regardless of the manufacturer.
ISO 15552 specifies standardised mounting dimensions for verified cylinders with a piston diameter from 32 to 320 mm. The stroke length of the linear pneumatic actuator is from 5 to 1500 mm depending on the piston diameter (see table below).
The built-in adjustable cushion ensures a smooth stop of the piston at the end of the stroke to absorb the impact force against the front or rear cover. The damping can be adjusted via a special screw, allowing for higher or lower degrees of braking. This design allows operation at high speed — up to 1 m/s.
The two-way action is achieved by controlling the stroke via compressed air supply and release through two G1/8~1/2" threaded ports. The pressure supply of up to 12 bar is permissible.
| Piston Diameter, mm | 32 | 40 | 50 | 63 | 80 | 125 | 160 | 200 | 250 | 320 |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Connection Thread | G1/8" | G3/8" | G1/2" | — | ||||||
| Maximum Stroke Length, mm | 1000 | 1200 | 1500 | — | ||||||
| Cushioning, mm | 24 | 22 | 32 | 42 | — | |||||
| Action | Two-way action | |||||||||
| Type | With through rod | |||||||||
| Standard | ISO 15552, ISO 6431 | |||||||||
| Magnet on Piston | With magnet (default), without magnet (on request) | |||||||||
| Type of Magnetic Sensor for Completion | SC-CMS-E/SC-DMS-E | |||||||||
| Working Medium | Compressed air, filtration fineness 40 μm | |||||||||
| Working Pressure Range | 0.1-10 bar | |||||||||
| Maximum Inlet Pressure | 12 bar | |||||||||
| Operating Temperature Range | -10...70 ℃ (with dry air without moisture) | |||||||||
