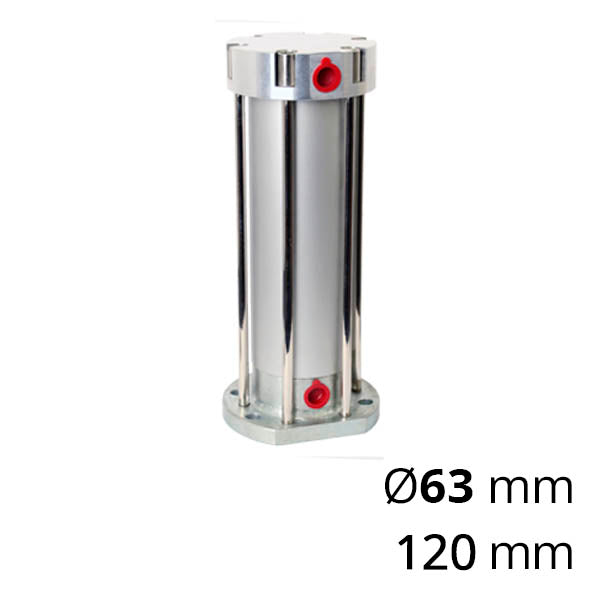

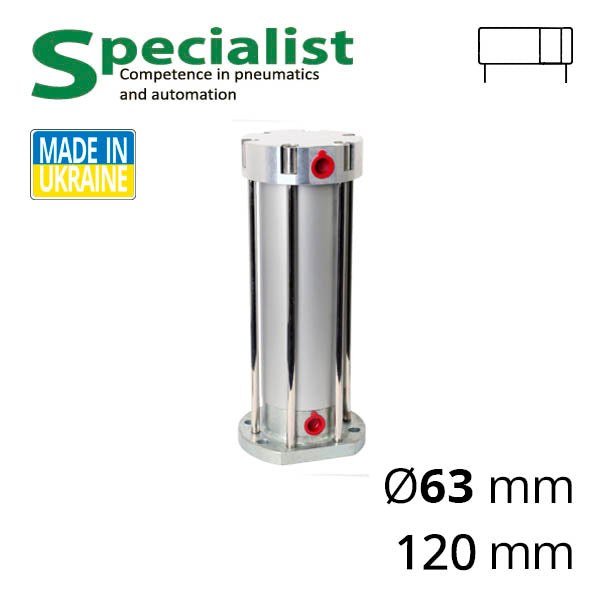

Pneumatic hammer SC-SM-63X120 for silos and bunkers of bulk materials
In Stock
Product Code:
Brand:
Specialist
7 234,00 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The single impact stationary pneumatic hammer SC-SM-63X120 is designed for shaking bulk materials in case of blockage and suspension in the bin or transportation line, as well as for removing hardened adhesion from the walls.
Industrial pneumatic hammers are used both individually and in combination with platform turbine pneumatic vibrators, which generate intense shaking and may lead to the compaction of bulk product and clogging in narrowed sections of silos and pipelines.
| Parameter | Value |
|---|---|
| Piston Diameter | 63 mm |
| Piston Stroke | 120 mm |
| Impact Impulse | 15 N⋅s |
| Operating Pressure | from 1 to 10 bar |
| Operating Medium | Clean compressed air |
| Nominal Air Consumption | 1600 nl/min |
| Connection Thread | 3/8″ |
| Recommended Tubing | ID not less than 10 mm |
These pneumatic hammers are of our own Ukrainian production Specialist. We manufacture them to order with a body made of anodised aluminium, steel studs, rod, and flange, with NBR seals. We can use the materials and sizes selected by you. Call for clarification.
