Solenoid pneumatic valves 3/2 normally closed 12, 24, 220 V SV-A series

Name: Solenoid pneumatic valves 3/2 normally closed 12, 24, 220 V SV-A series
Brand: Specialist
SKU: SV-A-ES-32NC-06-DC12V
Price: 867.06 UAH
Availability: InStock

In Stock

Power Voltage

DC24V DC12V AC220V

Model

Manufacturer

Specialist

from 867,06 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

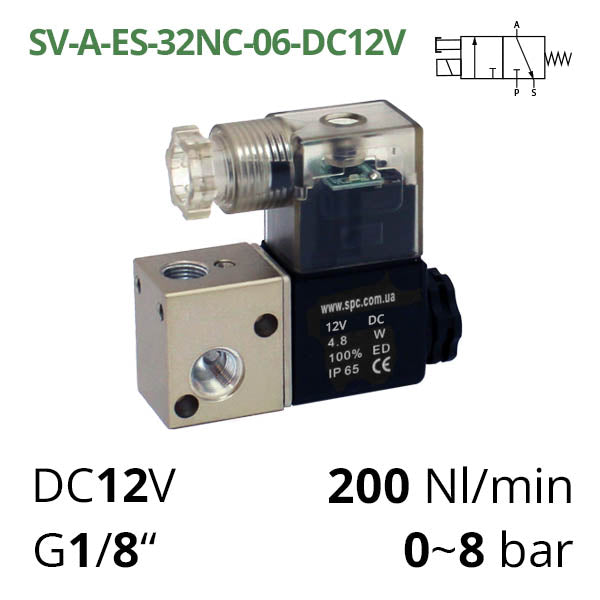

SV-A-ES-32NC-06-DC12V

Solenoid pneumatic valves 3/2 normally closed 12, 24, 220 V SV-A series

Power Voltage=DC12V

SV-A-ES-32NC-06-DC12V

867,06 UAH

In Stock

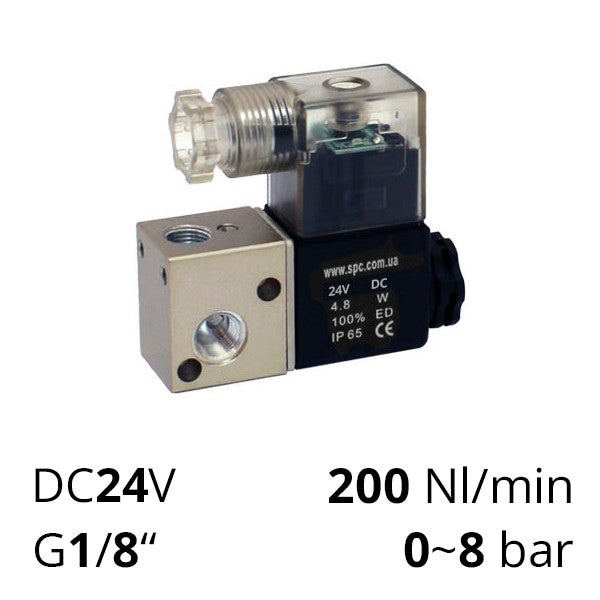

SV-A-ES-32NC-06-DC24V

Solenoid pneumatic valves 3/2 normally closed 12, 24, 220 V SV-A series

Power Voltage=DC24V

SV-A-ES-32NC-06-DC24V

867,06 UAH

In Stock

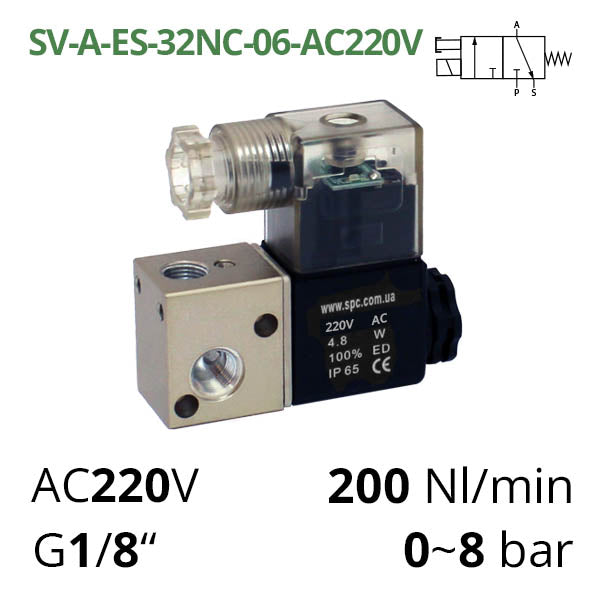

SV-A-ES-32NC-06-AC220V

Solenoid pneumatic valves 3/2 normally closed 12, 24, 220 V SV-A series

Power Voltage=AC220V

SV-A-ES-32NC-06-AC220V

867,06 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1/8″

Coil voltage

AC220V, DC12V, DC24V

Nominal diameter

1.2

Тип контролю

Electromagnetic

Description

SV-A are electromagnetic pneumatic valves with solenoids 12, 24 or 220 Volts, which are shut-off 3/2 NC (three-line two-position normally closed) valves for compressed air supply lines at 0-8 bar or oxygen. They have direct acting electric control.

Several electrovalves SV-A can be assembled in a compact control unit, for example, for controlling pneumatic cylinders and pneumatic actuators. For group assembly, purchase mounting accessories separately.

Connection to the pneumatic line is via input-output ports with a cylindrical pipe thread type of G 1/8″ inches. Upon request, electric valves can be supplied with metric thread M5.

Since aside from the inlet-outlet, pneumatic valves 3/2 have an exhaust port to release pressure from the outlet to the atmosphere when "closed", these valves CANNOT be used for water and other working media.

Technical Specifications of Pneumatic Valves SV-A
Model	SV-A-ES-32NC-M5	SV-A-ES-32NC-06
Connection	M5	G 1/8″
Working Medium	Air
Working Pressure Range	0–8 bar
Maximum Input Pressure	10 bar
Maximum Operating Frequency	10 cycles/s
Number of Lines/Positions	3/2
Nominal Passage Diameter	1.2 mm
Operating Temperature Range	from −5 to +50°C (in dry air without moisture)
Supply Voltage	DC 12V (2.5 W); DC 24V (3 W); AC 24V (3.5 VA); AC 110V (2.5 VA); AC 220V (2.5 VA);
Allowable Voltage Variation	from −15% to +10%
Protection Level	IP65
Insulation Class	Class F
Materials	Aluminium, technopolymer, NBR
