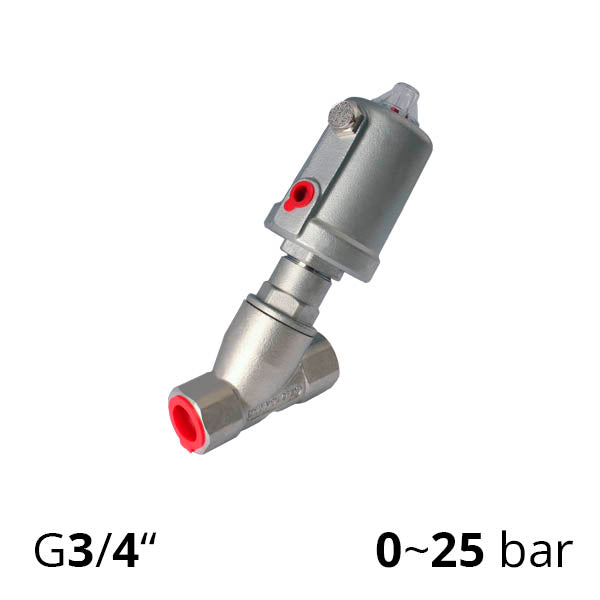

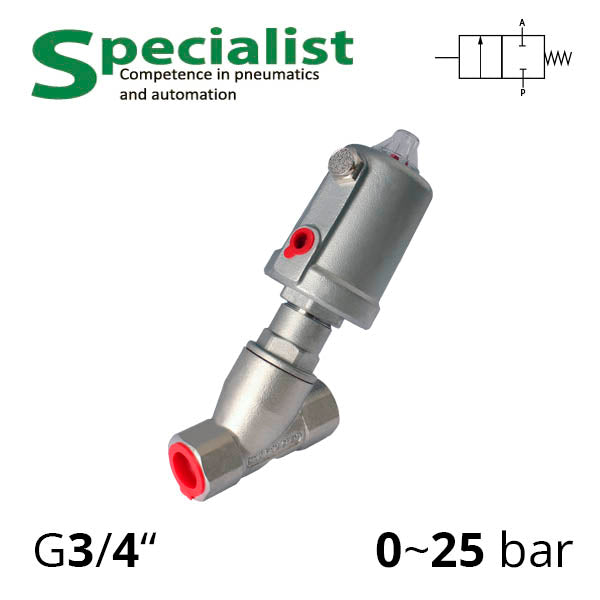

Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-111 (Pneumatic drive stainless)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-111 (Pneumatic drive stainless)

Name: Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-111 (Pneumatic drive stainless)
Brand: Specialist
SKU: SV-HS-AS-22NC-20-111
Price: 3185.82 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Нержавіючий

Thread size

G ¾

Model

Manufacturer

Specialist

from 3 185,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-20-111

Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-111 (Pneumatic drive stainless)

Diameter of conditional passage=20 Матеріал циліндру=Нержавіючий Thread size=G ¾

SV-HS-AS-22NC-20-111

3 185,82 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ¾"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 20

Тип засувки

Valve

Nominal diameter

Inlet pressure

Ru25

Матеріал циліндру

Нержавіючий

Тип контролю

With pneumatic drive

Description

Angle shut-off valves with inclined seat and pneumatic actuator series SV-HS-AS-22NC-20-111 with G3/4″ thread. Made of stainless steel, they can operate with various media at a pressure up to 25 bar. This series of shut-off two-way valves is supplied with single or double pneumatic control. The pneumatic cylinder housing is reliable stainless steel — withstands higher temperatures, for example, when using seat valves for saturated water steam (no more than 120 degrees). By default, we supply threaded angle valves, but you can order flange connection or execution for welding DIN11850.2 ISO2037.

The valve with an inclined spindle is two-position normally closed.

Store warehouses are located in Dnipro and Lviv. This means you can receive your order quickly and easily, no matter where you are in Ukraine. And you can find more valves ➡️here.

Size	DN20
Connection Thread for HS Execution	G3/4”
Pneumatic Actuator Connection Thread	G1/8”
Working Media	Air, water and other media not reacting with valve material
Materials	Stainless Steel CF8M, 304, 316, PTFE, FKM, NBR
Operating Temperature Range	-10 ~ 180 °C (with dry air without moisture)
Ambient Temperature	-10 ~ 60 °C
Cylinder Air Working Pressure (for AS Execution)	1 ~ 10 (4 – 10) bar
Media Working Pressure	0 ~ 25 bar
