Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-121 (Pneumatic drive plastic)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-121 (Pneumatic drive plastic)

Name: Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-121 (Pneumatic drive plastic)
Brand: Specialist
SKU: SV-HS-AS-22NC-50-121
Price: 8614.86 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Пластиковий

Thread size

G 2

Model

Manufacturer

Specialist

from 8 614,86 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-50-121

Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-121 (Pneumatic drive plastic)

Diameter of conditional passage=50 Матеріал циліндру=Пластиковий Thread size=G 2

SV-HS-AS-22NC-50-121

8 614,86 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 2"

Nominal diameter

TWO 50

Тип засувки

Valve

Nominal diameter

Матеріал циліндру

Пластиковий

Тип контролю

With pneumatic drive

Description

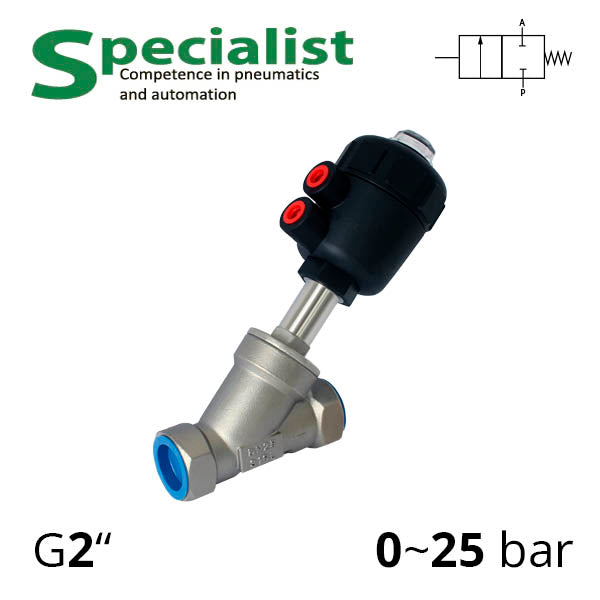

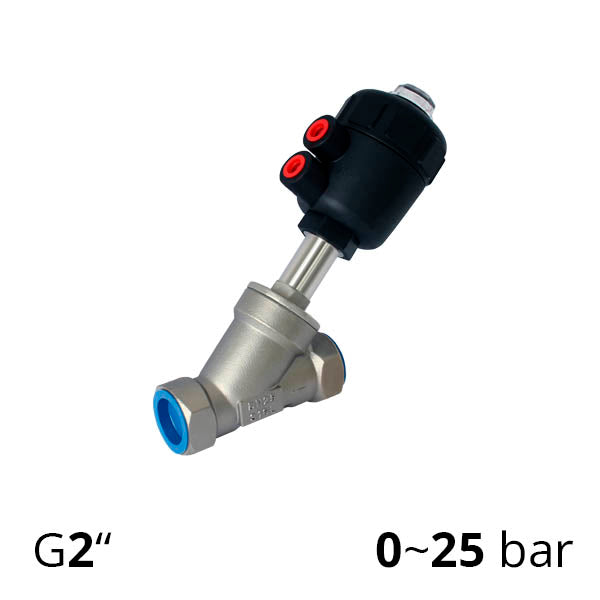

Angular shut-off valves with inclined seat and pneumatic actuator series SV-HS-AS-22NC-50-121 with thread G 2″. Made of stainless steel and can operate with different mediums under a pressure of up to 25 bar. The shut-off two-way valves of this series are supplied with one-sided or two-sided pneumatic control. The pneumatic cylinder body is plastic — significantly cheaper than stainless steel. By default, we supply threaded angular valves, but you can order flange connection or welding execution DIN11850.2 ISO2037.

The valve with inclined spindle is two-position normally closed.

The store's warehouses are located in Dnipro and Lviv. This means you can receive your order quickly and easily, no matter where you are in Ukraine. For more valves, you will find them ➡️here.

Type sizes	DN50
Thread connection for HS performance	G 2”
Thread connection for pneumatic actuator	G1/4”
Working medium	Air, water and other media not reacting with the valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Operating temperature range	-10 ~ 180 °C (in dry air without moisture)
Ambient temperature	-10 ~ 60 °C
Working air pressure of the cylinder (for AS performance)	1 ~ 10 (4 – 10) bar
Working medium pressure	0 ~ 25 bar
