Vacuum ejector SVV-ACV-25HS
In Stock
Product Code:
SVV-ACV-25HS
Brand:
Specialist
7 791,90 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

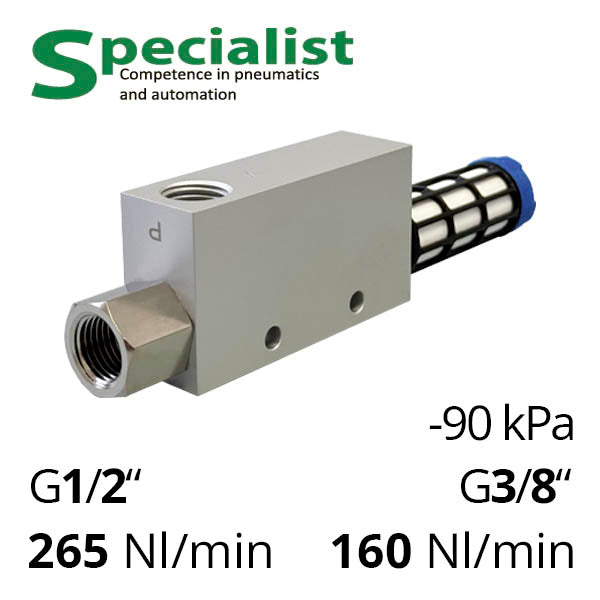

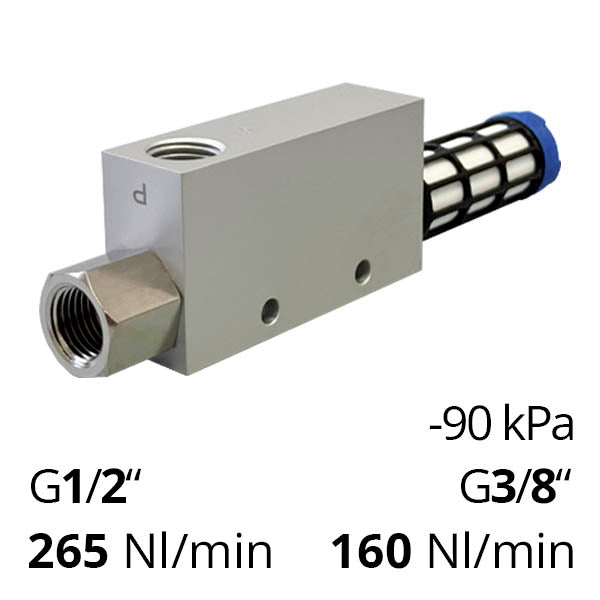

Vacuum ejector model SVV-ACV-25HS is a small pneumatic deep vacuum generator with a great depth of -90 kPa, which generates vacuum suction with a capacity of 160 l/min. These compact and lightweight devices are ideally suited for small systems with suction cups, as they allow you to dispense with bulky pumps and use the general shop air system 5 bar to create a vacuum. The compressed air consumption is 265 l/min.
The company “Specialist” sells vacuum ejectors SVV-ACV-25HS with a metal body and threaded air connections 3/8″ and vacuum 1/2″ complete with an air silencer on the exhaust, which reduces noise during operation and protects the equipment from internal contamination. For stability and energy efficiency, you can also purchase a pressure relay from us for automatic vacuum regulation.
Recommended hose diameters for connection — 10 and 12 mm. To connect the flexible tube to the ejector, you can use the pneumatic fitting SF-EPC.
| Output | Max. vacuum depth | -90 kPa |
|---|---|---|
| Max. flow | 160 nl/min | |
| Vacuum connection | 1/2″ | |
| Recommended tube diameter | 10 mm | |
| Input | Air supply pressure | 5 atm |
| Air consumption | 265 nl/min | |
| Air connection | 3/8″ | |
| Recommended hose diameter | at least 10 mm | |
| Noise level | 75 dB | |
| Operating temperature | 0~60 °C | |
