Vacuum ejector SVV-ACV-15LS
In Stock
Product Code:
SVV-ACV-15LS
Brand:
Specialist
2 395,20 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

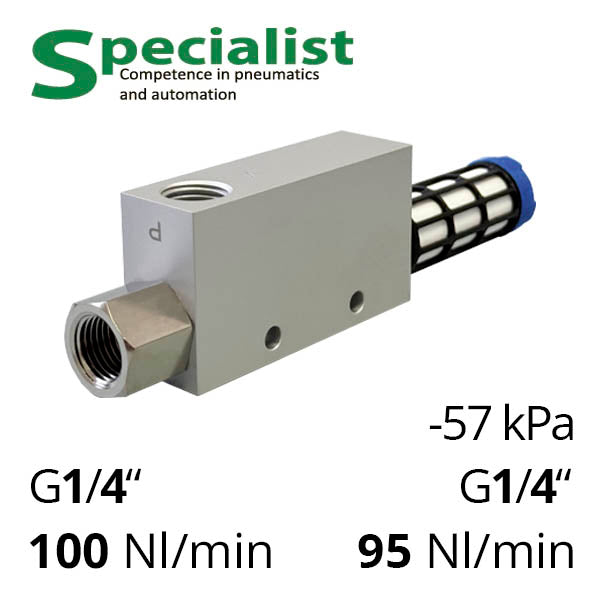

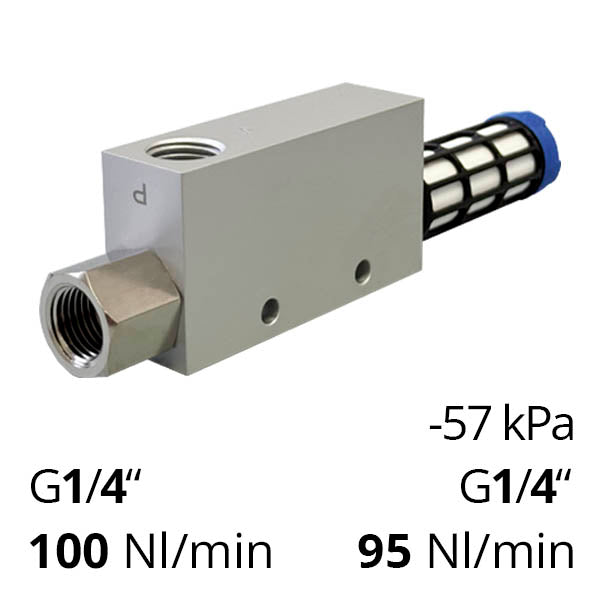

Vacuum ejector model SVV-ACV-15LS is a compact pneumatic vacuum generator of medium depth -57 kPa, creating vacuum suction at a rate of 95 L/min. These compact and lightweight devices are ideal for small systems with suction cups, as they eliminate the need for bulky pumps and allow the use of the general low-pressure 5 bar pneumatic system of the workshop. Air consumption is 100 L/min.
Specialist company sells vacuum ejectors SVV-ACV-15LS with metal housing and threaded air and vacuum connections 1/4″, complete with a pneumatic muffler on the exhaust, which reduces noise during operation and protects equipment from internal contamination. For stability and energy efficiency, you can also purchase a pressure switch from us for automatic vacuum regulation.
Recommended hose diameter for connection — 8 mm. To connect the flexible tubing to the ejector, you can use a pneumatic fitting SF-EPC 10-G01.
| Output | Max. vacuum depth | -57 kPa |
|---|---|---|
| Max. flow | 95 NL/min | |
| Input | Supply air pressure | 0.5 MPa |
| Air consumption | 100 NL/min | |
| Noise level | 72 dB | |
| Operating temperature | 0~60 °C | |
| Connection | 1/4″ | |
| Recommended internal diameter of pneumatic tube | 8 mm | |
