Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-121 (Pneumatic drive plastic)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-121 (Pneumatic drive plastic)

Name: Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-121 (Pneumatic drive plastic)
Brand: Specialist
SKU: SV-HS-AS-22NC-20-121
Price: 3405.42 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Пластиковий

Thread size

G ¾

Model

Manufacturer

Specialist

from 3 405,42 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-20-121

Shut-off valve with pneumatic drive, angle thread G3/4″, DU 20 - SV-HS-AS-22NC-20-121 (Pneumatic drive plastic)

Diameter of conditional passage=20 Матеріал циліндру=Пластиковий Thread size=G ¾

SV-HS-AS-22NC-20-121

3 405,42 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ¾"

Nominal diameter

TWO 20

Тип засувки

Valve

Nominal diameter

Inlet pressure

ru25

Матеріал циліндру

Пластиковий

Тип контролю

With pneumatic drive

Description

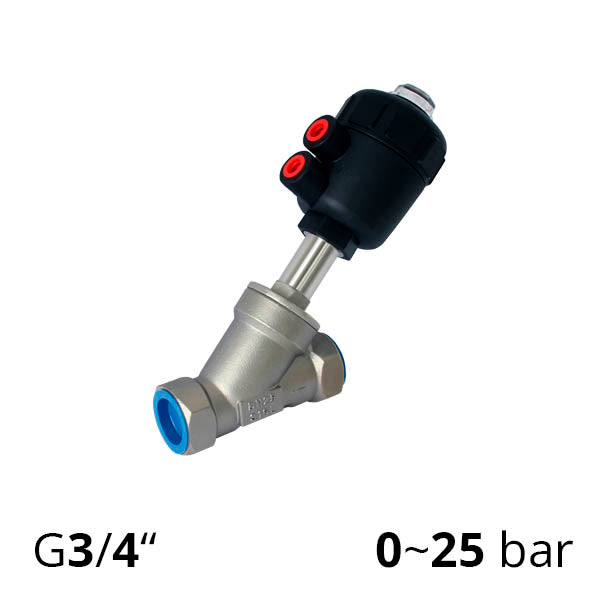

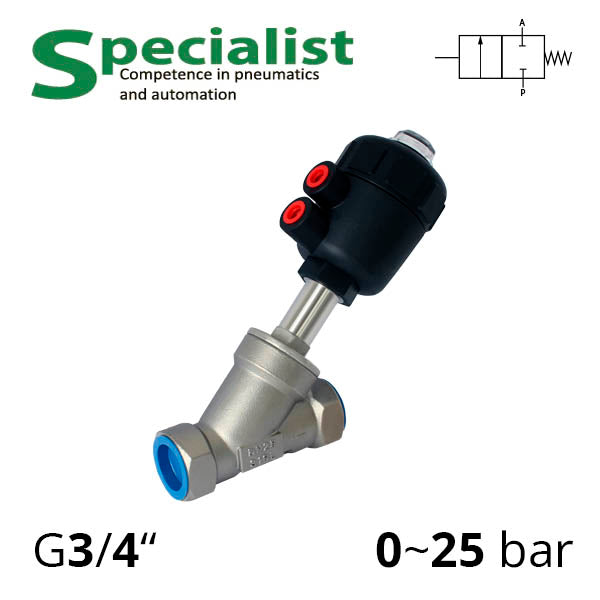

Angle shut-off valves with inclined seat and pneumatic actuator series SV-HS-AS-22NC-20-121 with thread G3/4″. Made of stainless steel and can operate with various media at a pressure up to 25 bar. The shut-off two-way valves of this series are supplied with single-acting or double-acting pneumatic control. The body of the pneumatic cylinder is plastic — it is significantly cheaper than stainless steel. By default, we supply threaded angle valves, but you can order flanged connection or weldable execution DIN11850.2 ISO2037.

The valve with an inclined spindle is two-position normally closed.

Store warehouses are located in Dnipro and Lviv. This means you can receive your order quickly and easily, no matter where you are in Ukraine. More valves can be found ➡️here.

Size	DN20
Connection thread for HS execution	G3/4”
Connection thread of pneumatic actuator	G1/8”
Operating medium	Air, water, and other media that do not react with the valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Operating temperature range	-10 ~ 180 °C (with dry air without moisture)
Ambient temperature	-10 ~ 60 °C
Operating air pressure of cylinder (for AS execution)	1 ~ 10 (4 – 10) bar
Operating medium pressure	0 ~ 25 bar
