Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-111 (Pneumatic drive stainless)

Name: Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-111 (Pneumatic drive stainless)
Brand: Specialist
SKU: SV-HS-AS-22NC-32-111
Price: 6989.88 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Нержавіючий

Thread size

G 1¼

Model

Manufacturer

Specialist

from 6 989,88 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-32-111

Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-111 (Pneumatic drive stainless)

Diameter of conditional passage=32 Матеріал циліндру=Нержавіючий Thread size=G 1¼

SV-HS-AS-22NC-32-111

6 989,88 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1¼"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 32

Тип засувки

Valve

Nominal diameter

Матеріал циліндру

Нержавіючий

Тип контролю

With pneumatic drive

Description

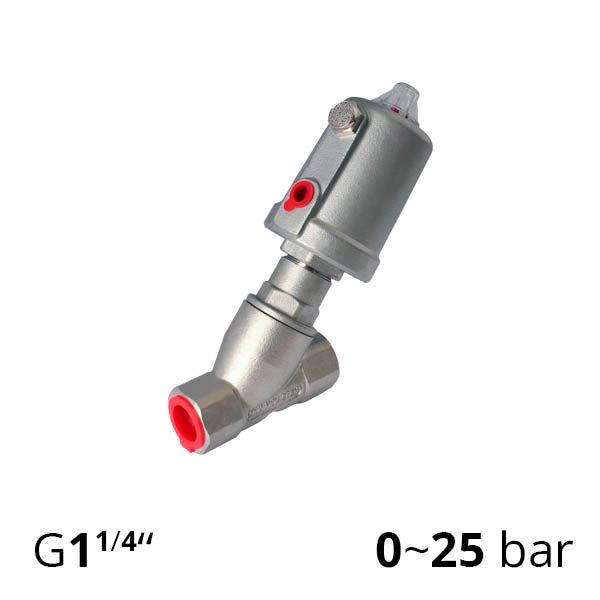

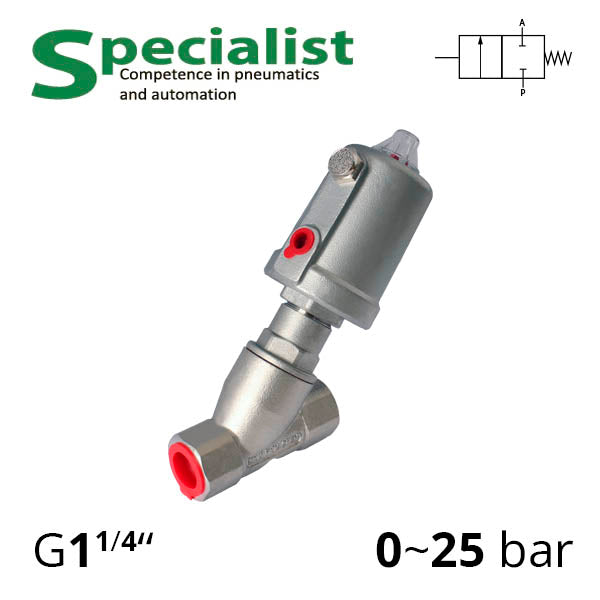

Angled shut-off valves with inclined seat and pneumatic actuator series SV-HS-AS-22NC-32-111 with thread G 1¼″. Made of stainless steel and can operate with various media at pressure up to 25 bar. Two-way shut-off valves of this series are supplied with uni-directional or bi-directional pneumatic control. The pneumatic cylinder body is reliable stainless — withstands higher temperatures, for example, when using seat valves for saturated steam (not more than 120 degrees). By default, we supply threaded angled valves, but you can order flange connection or welding execution DIN11850.2 ISO2037.

The valve with an inclined spindle is two-position normally closed.

The store's warehouses are located in Dnipro and Lviv. This means you can receive your order quickly and easily, no matter where you are in Ukraine. You'll find more valves ➡️here.

Size types	DN32
Connection thread for HS execution	G 1¼″
Pneumatic actuator connection thread	G1/4”
Working media	Air, water and other media that do not react with the valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Operating temperature range	-10 ~ 180 °C (with dry air without moisture)
Ambient temperature	-10 ~ 60 °C
Cylinder air operating pressure (for AS execution)	1 ~ 10 (4 – 10) bar
Medium operating pressure	0 ~ 25 bar
