Vacuum ejector SVV-ACV-15HS
In Stock
Product Code:
SVV-ACV-15HS
Brand:
Specialist
2 449,74 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

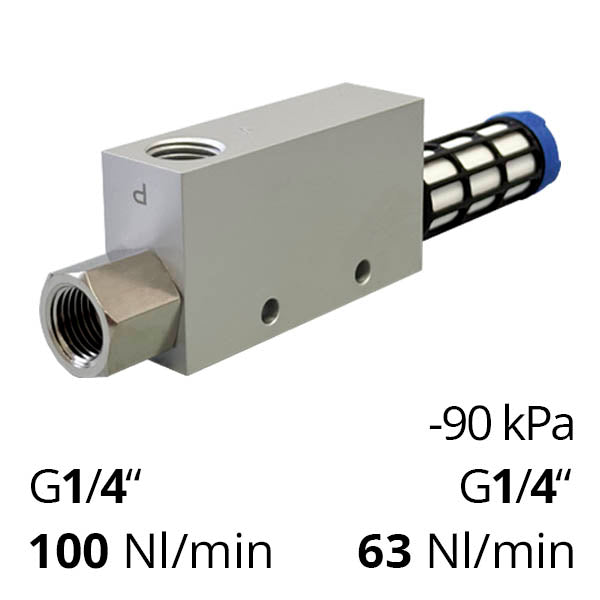

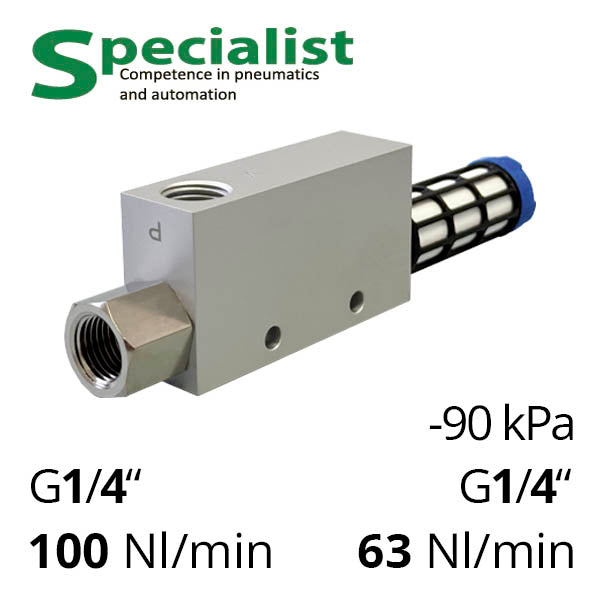

Vacuum ejector model SVV-ACV-15HS is a small pneumatic deep vacuum generator -90 kPa, creating vacuum suction with a capacity of 63 l/min. These compact and lightweight devices are ideal for small systems with suction cups, as they allow abandoning bulky pumps and using the general shop pneumatic system of 5 bar to create a vacuum. Air consumption is 100 l/min.
“Specialist” company sells vacuum ejectors SVV-ACV-15HS with a metal body and threaded air and vacuum connections 1/4″ complete with a pneumatic muffler on the exhaust, reducing noise during operation and protecting equipment from internal debris ingress. For stability and energy efficiency, you can also purchase a pressure relay from us for automatic vacuum regulation.
The recommended hose diameter for connection is 8 mm. To connect the flexible tube to the ejector, you can use the pneumatic fitting SF-EPC 8-G02.
| Output | Max. vacuum depth | -90 kPa |
|---|---|---|
| Max. flow rate | 65 nl/min | |
| Input | Supply air pressure | 0.5 MPa |
| Air consumption | 100 nl/min | |
| Noise level | 72 dB | |
| Operating temperature | 0~60 °C | |
| Connection | 1/4″ | |
| Recommended int. diameter of pneumatic tube | 8 mm | |
