Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-111 (Pneumatic drive stainless)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-111 (Pneumatic drive stainless)

Name: Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-111 (Pneumatic drive stainless)
Brand: Specialist
SKU: SV-HS-AS-22NC-50-111
Price: 9775.32 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Нержавіючий

Thread size

G 2

Model

Manufacturer

Specialist

from 9 775,32 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-50-111

Shut-off valve with pneumatic drive, angle thread G 2″, DU 50 - SV-HS-AS-22NC-50-111 (Pneumatic drive stainless)

Diameter of conditional passage=50 Матеріал циліндру=Нержавіючий Thread size=G 2

SV-HS-AS-22NC-50-111

9 775,32 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 2"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 50

Тип засувки

Valve

Nominal diameter

Матеріал циліндру

Нержавіючий

Тип контролю

With pneumatic drive

Description

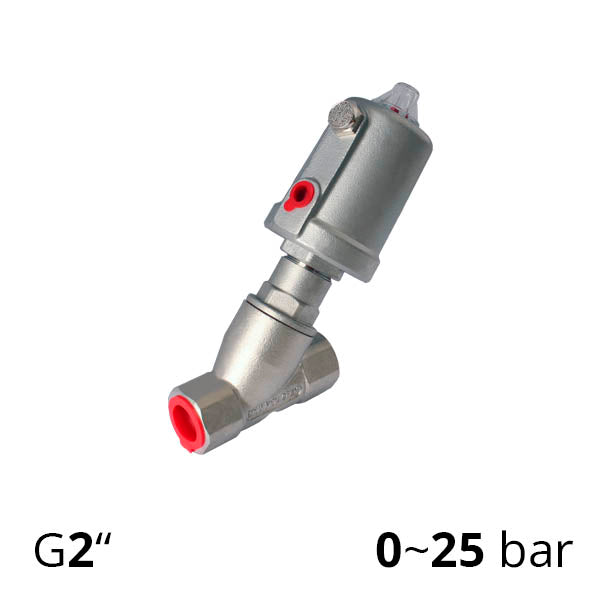

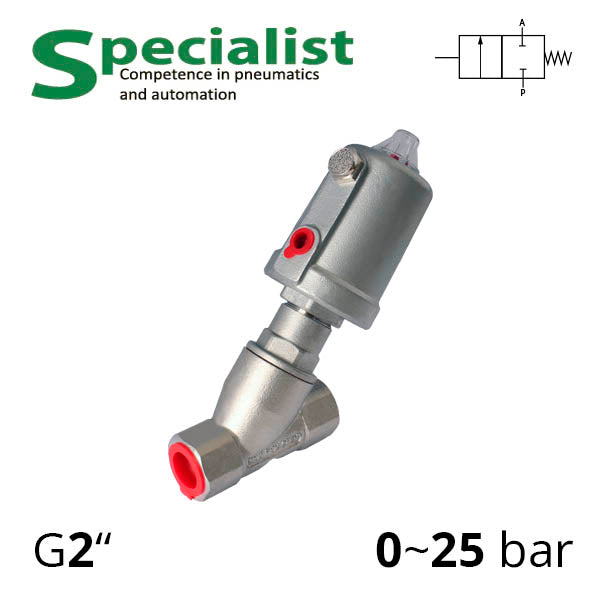

Angled shut-off valves with inclined seat and pneumatic actuator series SV-HS-AS-22NC-50-111 with G 2″ thread. Made of stainless steel and can operate with various media at a pressure of up to 25 bar. The two-way stop valves of this series are available with single or double-acting pneumatic control. The reliable stainless pneumatic cylinder housing withstands higher temperatures, such as when the seat valve is used for saturated steam (not more than 120 degrees). By default, we supply threaded angle valves, but you can order flanged connection or execution for welding DIN11850.2 ISO2037.

The valve with inclined spindle is two-position normally closed.

Warehouse locations are in Dnipro and Lviv. This means you can receive your order quickly and easily, regardless of your location in Ukraine. You can find more valves ➡️here.

Size Type	DN50
Connecting Thread for HS Execution	G 2”
Pneumatic Actuator Thread	G1/4”
Working Media	Air, water, and other media not reactive with valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Operating Temperature Range	-10 ~ 180 °C (in dry air without moisture)
Ambient Temperature	-10 ~ 60 °C
Working Air Pressure for Cylinder (for AS Execution)	1 ~ 10 (4 – 10) bar
Working Medium Pressure	0 ~ 25 bar
