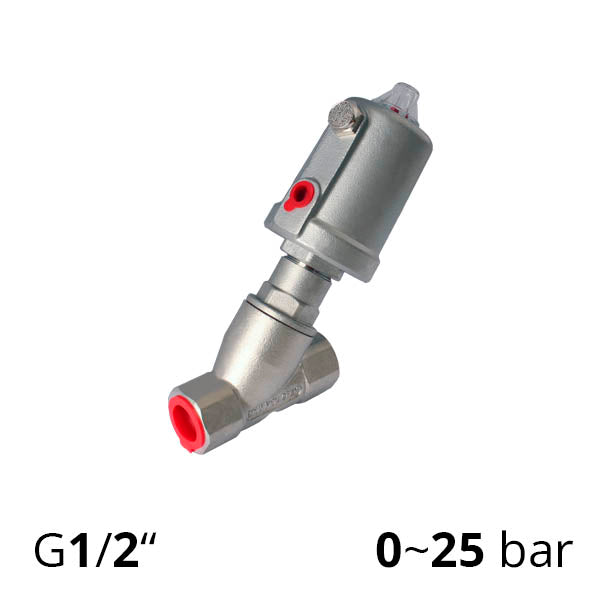

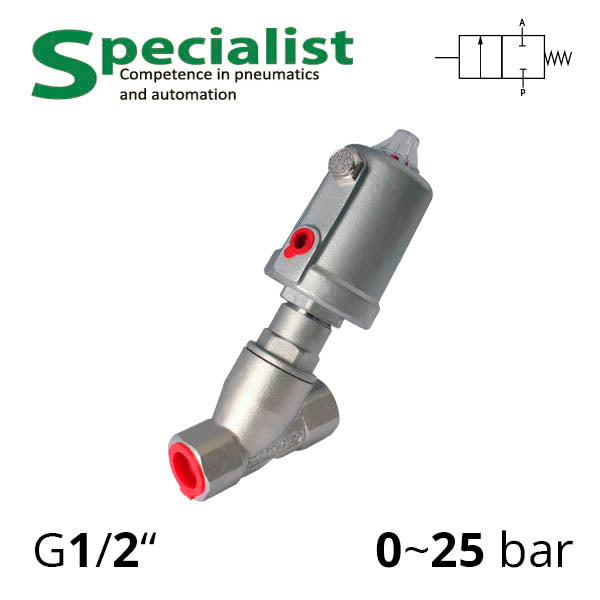

Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-111 (Pneumatic drive stainless)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-111 (Pneumatic drive stainless)

Name: Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-111 (Pneumatic drive stainless)
Brand: Specialist
SKU: SV-HS-AS-22NC-15-111
Price: 3158.76 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Нержавіючий

Thread size

G ½

Model

Manufacturer

Specialist

from 3 158,76 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-15-111

Shut-off valve with pneumatic drive, angle thread G1/2″, DU 15 - SV-HS-AS-22NC-15-111 (Pneumatic drive stainless)

Diameter of conditional passage=15 Матеріал циліндру=Нержавіючий Thread size=G ½

SV-HS-AS-22NC-15-111

3 158,76 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ½"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 15

Тип засувки

Valve

Nominal diameter

Матеріал циліндру

Нержавіючий

Тип контролю

With pneumatic drive

Description

Angle shut-off valves with inclined seat and pneumatic drive series SV-HS-AS-22NC-15-111 and with thread G1/2″. Made of stainless steel and can operate with different media at a pressure up to 25 bar. Shut-off two-way valves of this series are supplied with one-way or two-way pneumatic control. The pneumatic cylinder body is reliable stainless — withstands higher temperatures, for instance, when using a seat valve for saturated steam (not more than 120 degrees). By default, we supply threaded angle valves, but you can order a flanged connection or weld-end design DIN11850.2 ISO2037.

Valve with inclined spindle is bi-position normally closed.

Store warehouses are located in Dnipro and Lviv. This means you can receive your order quickly and easily, no matter where you are in Ukraine. And you can find more valves ➡️here.

Size Type	DN15
Thread Connection for HS Execution	G1/2”
Pneumatic Drive Thread Connection	G1/8”
Operating Media	Air, water, and other media that do not react with the valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Working Temperature Range	-10 ~ 180 °C (with dry air without moisture)
Ambient Temperature	-10 ~ 60 °C
Pneumatic Cylinder Air Pressure (for AS Execution)	1 ~ 10 (4 – 10) bar
Media Operating Pressure	0 ~ 25 bar
