Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-121 (Pneumatic drive plastic)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-121 (Pneumatic drive plastic)

Name: Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-121 (Pneumatic drive plastic)
Brand: Specialist
SKU: SV-HS-AS-22NC-32-121
Price: 6222.96 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Пластиковий

Thread size

G 1¼

Model

Manufacturer

Specialist

from 6 222,96 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-32-121

Shut-off valve with pneumatic drive, angle thread G 1¼″, DU 32 - SV-HS-AS-22NC-32-121 (Pneumatic drive plastic)

Diameter of conditional passage=32 Матеріал циліндру=Пластиковий Thread size=G 1¼

SV-HS-AS-22NC-32-121

6 222,96 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1¼"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 32

Тип засувки

Valve

Nominal diameter

Inlet pressure

Ru25

Матеріал циліндру

Пластиковий

Тип контролю

With pneumatic drive

Description

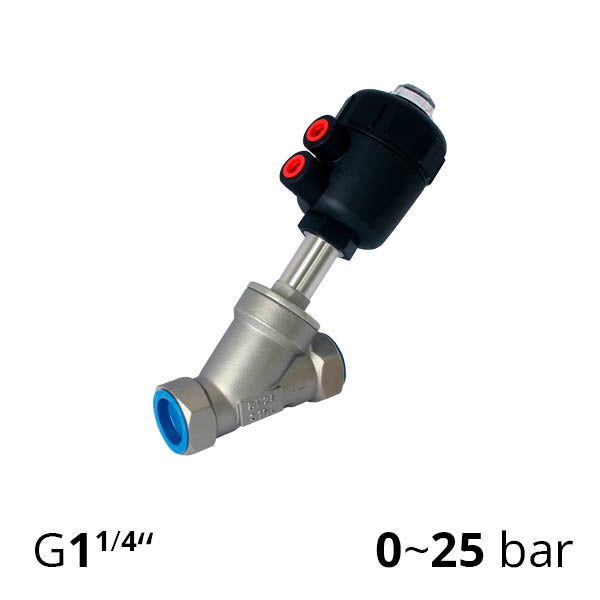

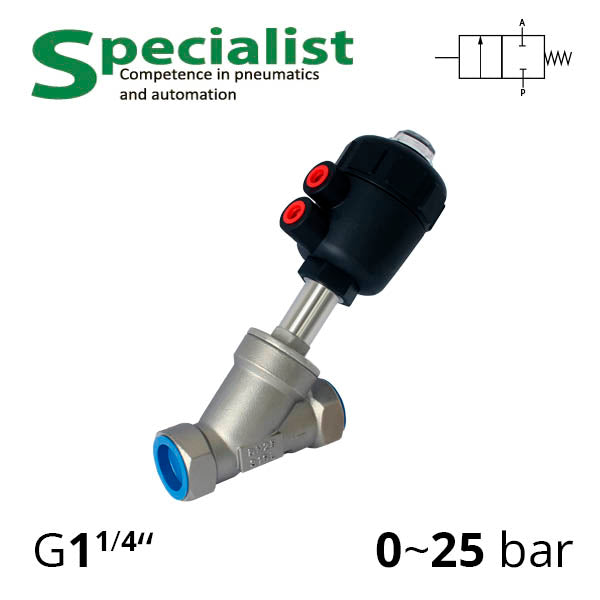

Angle shut-off valves with inclined seat and pneumatic actuator series SV-HS-AS-22NC-32-121 with thread G 1¼″. Made of stainless steel and can operate with different media at pressure up to 25 bar. The two-way shut-off valves of this series are available with one-way or two-way pneumatic control. The pneumatic cylinder body is plastic — it is significantly cheaper than stainless steel. By default, we supply threaded angle valves, but you can order flange connection or weld-in execution DIN11850.2 ISO2037.

The valve with inclined spindle is bi-directional normally closed.

Warehouse locations in Dnipro and Lviv. This means you can receive your order quickly and easily, regardless of where you are in Ukraine. More valves can be found ➡️here.

Dimensions	DN32
Connection thread for HS execution	G 1¼″
Connection thread of pneumatic actuator	G1/4”
Medium	Air, water and other media not reacting with valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Operating temperature range	-10 ~ 180 °C (with dry air without moisture)
Ambient temperature	-10 ~ 60 °C
Operating air pressure of cylinder (AS execution)	1 ~ 10 (4 – 10) bar
Operating medium pressure	0 ~ 25 bar
