Vacuum ejector with filter CTAGZ12-A-08-08-08

Vacuum ejector with filter model CTAGZ12-A-08-08-08 is a monoblock pneumatic vacuum generator of great depth −93 kPa, with a filter that creates vacuum suction with a capacity of 38 l/min. These compact and lightweight devices are ideal for small systems with suction cups, as they allow you to do without bulky pumps and use the general workshop pneumatic system 2.5~7 bar to create a vacuum.

• When compressed air is input 5 bar 70 l/min, vacuum output is −93 kPa 38 l/min.
• When input is 3.5 bar 47 l/min, vacuum output is −73 kPa 36 l/min.

The company “Specialist” sells vacuum ejectors CTAGZ12-A-08-08-08 with quick-connect collet connections for pneumatic tubes with an external diameter of 8 mm. The built-in filter has a filtration accuracy of 10 μm, area 1130 mm².

Available models of this series for group mounting on a plate to build a vacuum island and configurations for energy efficiency and quick operations with fragile objects.

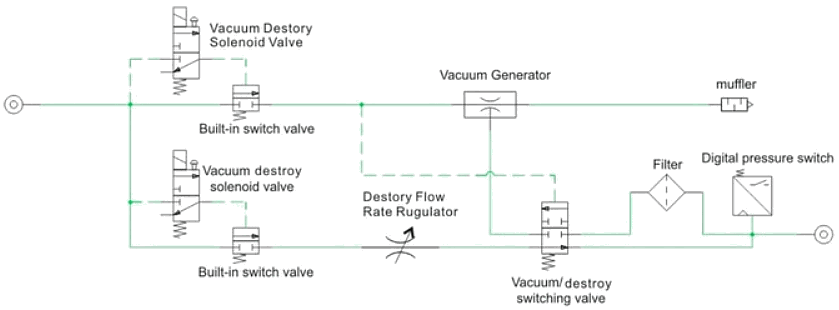

Vacuum system: ejector with electromagnetic vacuum release valve

On order, the vacuum ejector of this series can be supplied in a single housing:

• With a vacuum release solenoid valve DC24V to reduce object release time
• With a digital pressure relay with NPN/PNP output and 1-5 V for detecting the achieved vacuum level

The energy efficiency of this system is that when the vacuum reaches the required depth, vacuum generation stops, which enables the protection of fragile objects from excess suction and conserves compressed air as an energy resource. The vacuum is maintained by check valves as long as the active signal is on the main vacuum release valve. When the object needs to be quickly released, the vacuum release valve allows atmospheric air in. An adjustable throttle allows you to achieve the required release speed to avoid damage to the object.

If you need a vacuum system with valves — contact our company Specialist for a solution!
