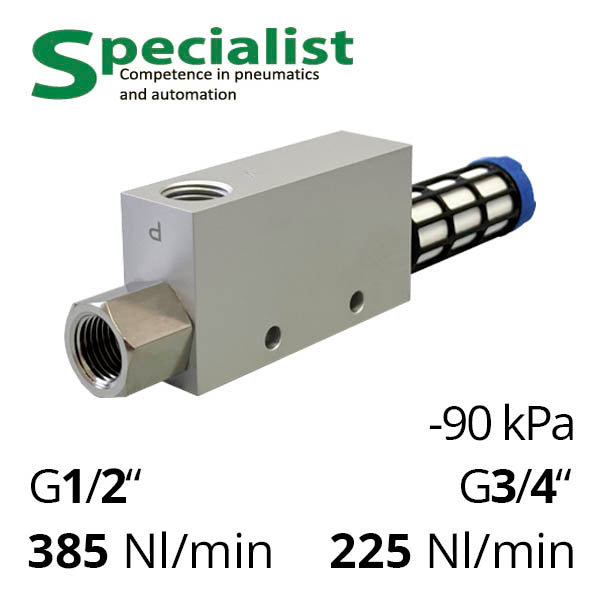

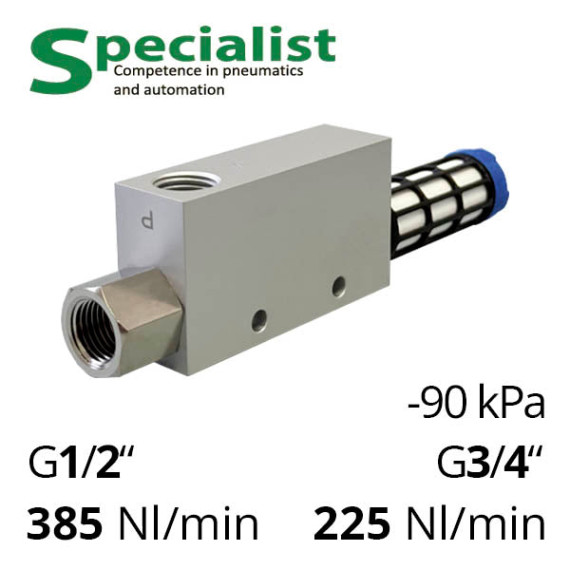

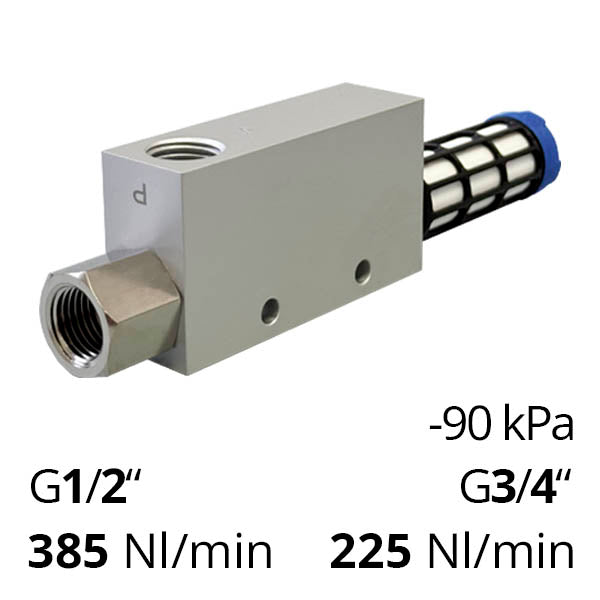

Vacuum ejector SVV-ACV-30HS
In Stock
Product Code:
SVV-ACV-30HS
Brand:
Specialist
17 054,28 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Vacuum Ejector Model SVV-ACV-30HS is a small pneumatic vacuum generator with a high vacuum depth of -90 kPa, creating a vacuum suction with a performance of 225 l/min. These compact and lightweight devices are ideal for small systems with suction cups, as they allow you to forgo bulky pumps and use the general workshop pneumatic system 5 bar to create a vacuum. Compressed air consumption is 385 l/min.
Company “Specialist” sells vacuum ejection SVV-ACV-30HS with a metal body and threaded connections for air 1/2″ and vacuum 3/4″ complete with pneumatic muffler on the exhaust, reducing noise during operation and protecting equipment from debris ingress. For stability and energy efficiency, you can also purchase a pressure switch from us for automatic vacuum regulation.
Recommended hose diameters for connection are 10 and 12 mm. To connect a flexible tube to the ejector, you can use the pneumatic fitting SF-EPC.
| Output | Max. Vacuum Depth | -90 kPa |
|---|---|---|
| Max. Flow | 225 nl/min | |
| Vacuum Connection | 3/4″ | |
| Recommended Tube Diameter | 10 mm | |
| Input | Air Supply Pressure | 5 bar |
| Air Consumption | 385 nl/min | |
| Air Connection | 1/2″ | |
| Recommended Hose Diameter | not less than 10 mm | |
| Noise Level | 75 dB | |
| Operating Temperature | 0~60 °C | |
