Vacuum ejector SVV-AUZ-07-S
In Stock
Product Code:
SVV-AUZ-07-S
Brand:
Specialist
930,78 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

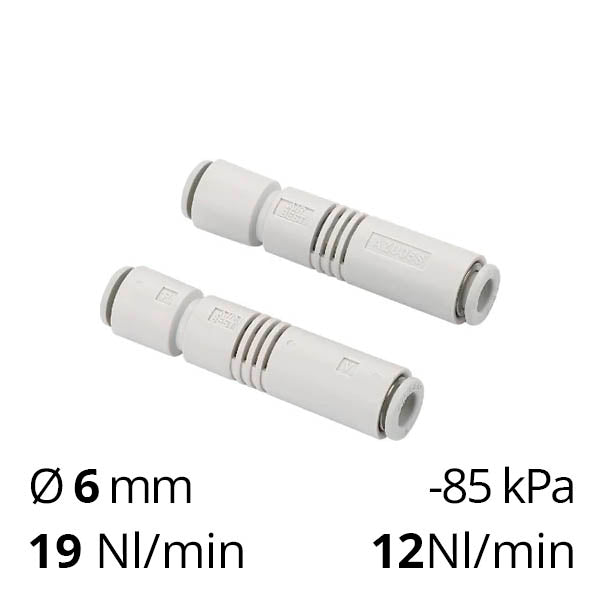

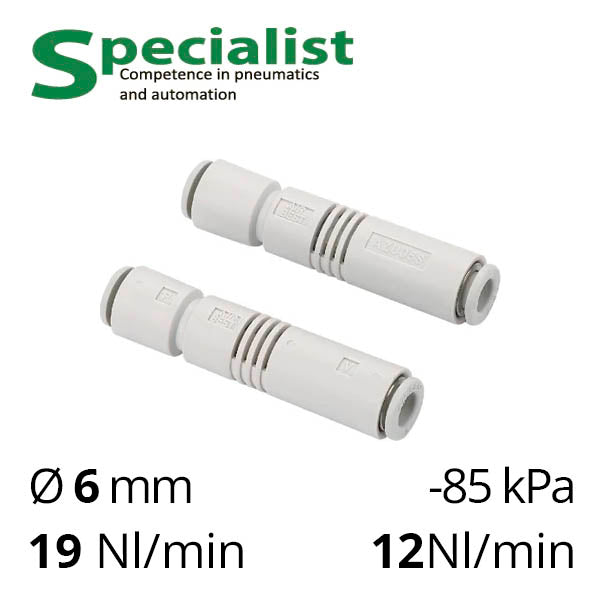

Model SVV-AUZ-07-S — is a miniature vacuum air ejector for tube insertion, creating deep vacuum -85 kPa for suction up to 12 L/min. Designed for pneumatic industrial manipulators with suction cup. Pneumatic ejectors operate on the same principle as jet pumps — when compressed air 0.5 MPa passes through the device, vacuum pressure is created at the outlet. Compressed air consumption — 19 L/min.
Compact vacuum ejectors SVV-AUZ-07-S from "Specialist" have quick-release collet connections (inlet-outlet) for connecting flexible tubing 6 mm. Side exhaust.
| Output | MAX Vacuum Level | -85 kPa |
|---|---|---|
| MAX Vacuum Flow | 12 Nl/min | |
| Input | Supply Pressure | 5 bar |
| Air Consumption | 19 Nl/min | |
| Hose Diameter for Inlet-Outlet | Ø6 mm | |
| Noise Level | 68 dB | |
| Operating Temperature | 5~60 °C | |
