Shut-off valve with pneumatic drive angle thread G1″ (inch), DU 25 - SV-HS-AS-22NC-25-111 (Pneumatic drive stainless)

Do you have any questions about the product?
We will be happy to answer them in messengers

Shut-off valve with pneumatic drive angle thread G1″ (inch), DU 25 - SV-HS-AS-22NC-25-111 (Pneumatic drive stainless)

Name: Shut-off valve with pneumatic drive angle thread G1″ (inch), DU 25 - SV-HS-AS-22NC-25-111 (Pneumatic drive stainless)
Brand: Specialist
SKU: SV-HS-AS-22NC-25-111
Price: 5755.08 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Матеріал циліндру

Нержавіючий

Thread size

G 1

Model

Manufacturer

Specialist

from 5 755,08 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SV-HS-AS-22NC-25-111

Shut-off valve with pneumatic drive angle thread G1″ (inch), DU 25 - SV-HS-AS-22NC-25-111 (Pneumatic drive stainless)

Diameter of conditional passage=25 Матеріал циліндру=Нержавіючий Thread size=G 1

SV-HS-AS-22NC-25-111

5 755,08 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Матеріал диску

Stainless steel AISI 316 SS

Body material

Stainless steel AISI 316 SS

Nominal diameter

TWO 25

Тип засувки

Valve

Nominal diameter

Inlet pressure

Ru25

Матеріал циліндру

Нержавіючий

Тип контролю

With pneumatic drive

Description

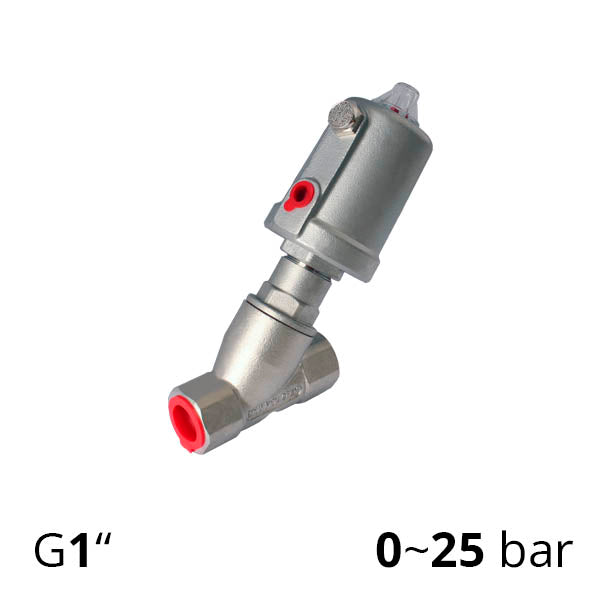

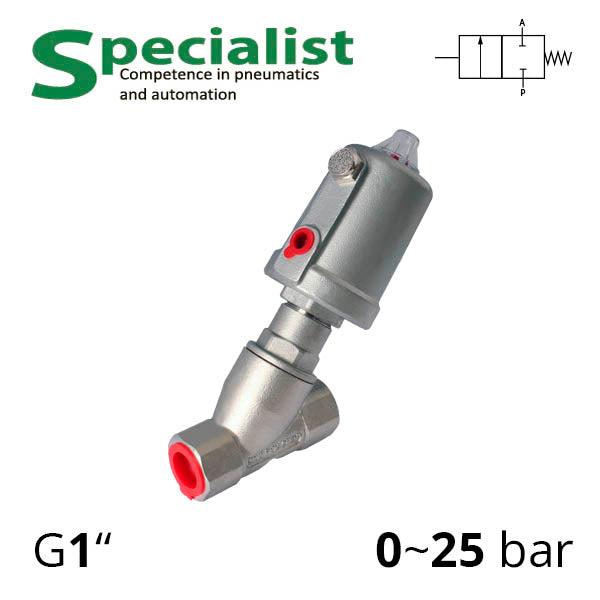

Angled shut-off valves with inclined seat and pneumatic drive series SV-HS-AS-22NC-25-111, with thread G1″ (inch). Made from stainless steel, suitable for various media at pressures up to 25 bar. Two-way shut-off valves in this series are available with single or double pneumatic control. The pneumatic cylinder body is durably stainless — withstands higher temperatures, for example, when using the saddle valve for saturated steam (up to 120 degrees). By default, we supply threaded angled valves, but you can order flange connections or weld-on execution DIN11850.2 ISO2037.

The valve with the inclined spindle is two-position normally closed.

Warehouse locations are in Dnipro and Lviv. This means you can receive your order quickly and easily, regardless of where you are in Ukraine. Find more valves ➡️here.

Dimensions	DN25
Connection thread for HS execution	G1” (inch)
Connection thread for pneumatic drive	G1/8”
Working medium	Air, water and other media that do not react with the valve material
Materials	Stainless steel CF8M, 304, 316, PTFE, FKM, NBR
Working temperature range	-10 ~ 180 °C (with dry air without moisture)
Ambient temperature	-10 ~ 60 °C
Working pressure of cylinder air (for AS execution)	1 ~ 10 (4 – 10) bar
Working pressure of the medium	0 ~ 25 bar
