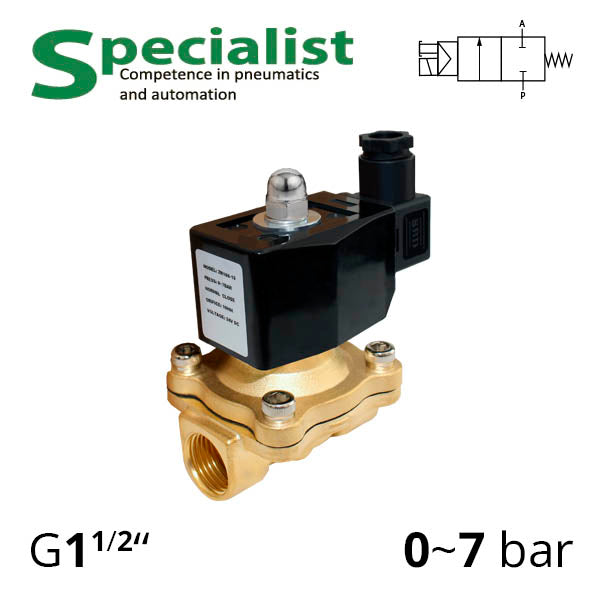

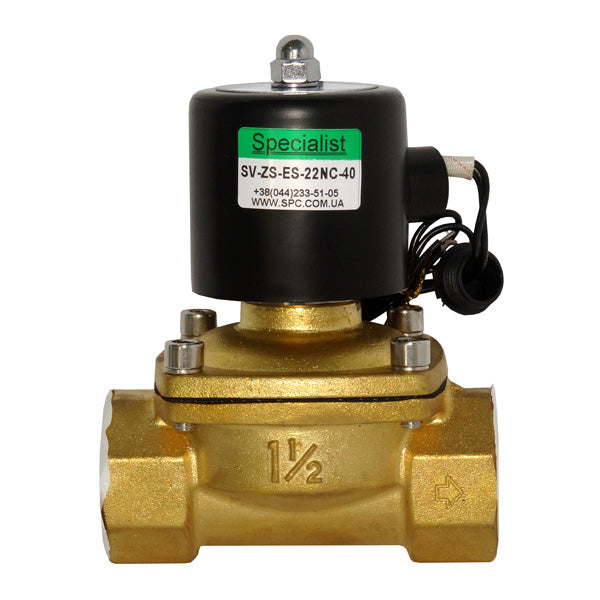

Solenoid valve 2/2 normally closed with thread G 1½” series SV-ZS11-ES-22NC-40

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 2/2 normally closed with thread G 1½” series SV-ZS11-ES-22NC-40

Name: Solenoid valve 2/2 normally closed with thread G 1½” series SV-ZS11-ES-22NC-40
Brand: Specialist
SKU: SV-ZS11-ES-22NC-40-DC24V
Price: 6030.42 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G 1½

Model

Manufacturer

Specialist

from 6 030,42 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-ZS11-ES-22NC-40-DC24V

Solenoid valve 2/2 normally closed with thread G 1½” series SV-ZS11-ES-22NC-40

Power Voltage=DC24V Thread size=G 1½

SV-ZS11-ES-22NC-40-DC24V

6 030,42 UAH

In Stock

SV-ZS11-ES-22NC-40-AC220V

Solenoid valve 2/2 normally closed with thread G 1½” series SV-ZS11-ES-22NC-40

Power Voltage=AC220V Thread size=G 1½

SV-ZS11-ES-22NC-40-AC220V

6 030,42 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1½"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 40

Тип контролю

Electromagnetic

Description

Valves of the SV-ZS11-ES-22NC-40 series are two-position normally closed diaphragm valves with unidirectional pilot electrical control and have cylindrical pipe thread G 1½”. Our company supplies ZS valves on request with various body and seal materials. This allows for a wide range of valve applications for different operating media and temperatures. Operating pressure from 0 bar, and supply voltage DC24V or AC220V. They can operate in gravity systems without pressure.

Technical Specifications of 2/2 NC Solenoid Valves Series SV-ZS11-ES-22NC-40
Construction	Two-line two-position normally closed valve with unidirectional pilot electric control
Material	Bronze, NBR (standard) Stainless steel AISI304 or AISI316, VITON (on request)
Connection	G 1½”
Mounting	Vertical
Operating Temperature Range	from −5 to +80 °C (in dry air without moisture)
Supply Voltage	AC220V, DC24V
Permissible Supply Voltage Fluctuation	±10%
Working Medium	Air, water, oils (viscosity up to 20CTS), gas
Working Pressure Range	0—5 bars (water), 0—7 bars (air), 0—5 bars (oil)
