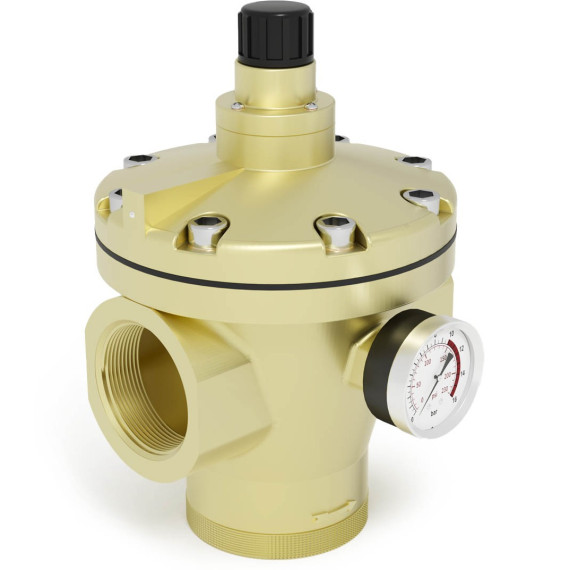

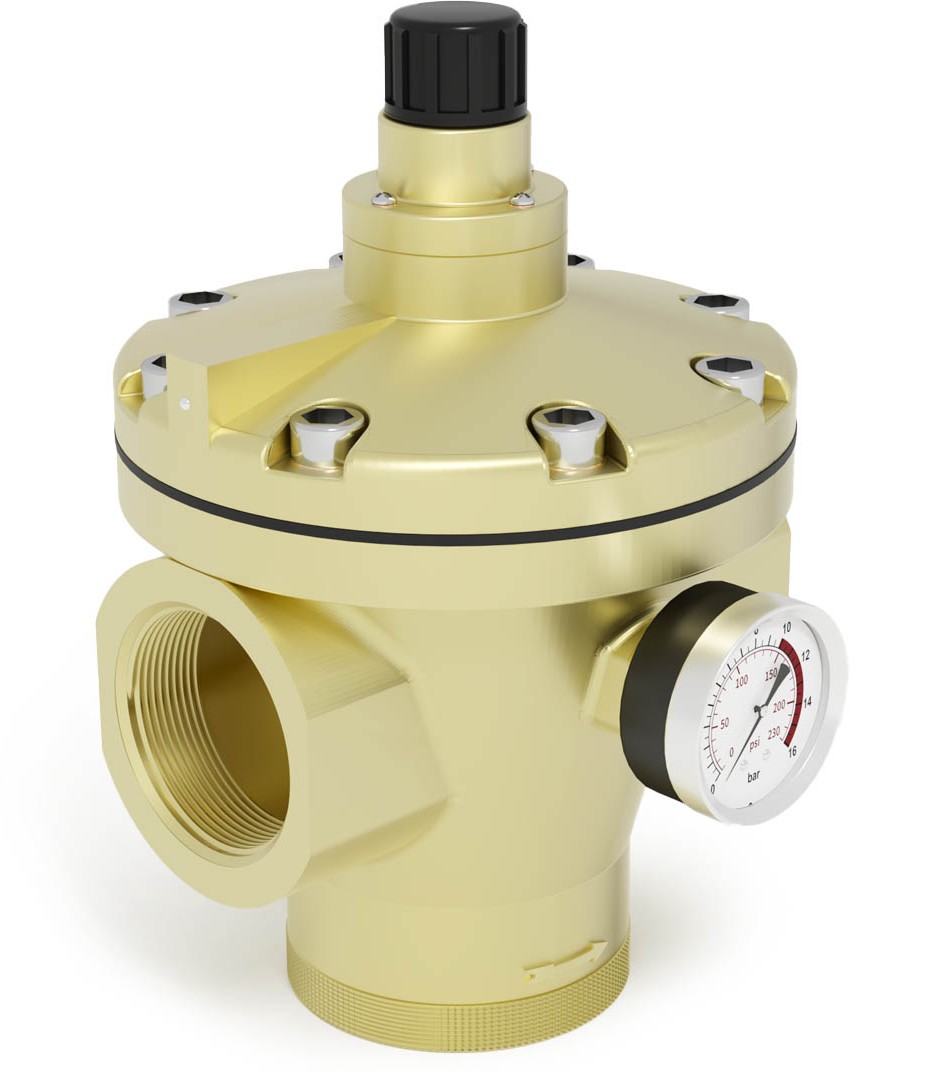

Air pressure regulator with manometer G2″, 12 bar, 20000 l/min (SA-RHF-50)
In Stock
Product Code:
SA-RHF-50
Brand:
Specialist
30 343,02 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The SA-RHF-50 series pneumatic pressure regulator is designed for regulating compressed air pressure at high flow rates and can handle up to 20 m³/min.
Constructed as a SA-RHF-50 — piston-type pressure regulator with a pilot valve and manual adjustment based on gauge readings. The regulator reduces pressure to the set level within the range from 0.5 to 8.5 bar.
Scope of delivery:
- Piston-type regulator
- Mechanical gauge
| Model | SA-RHF-50 |
|---|---|
| Connection thread | G2″ |
| Nominal flow rate (max) | 20000 nl/min |
| Working medium | Compressed air |
| Working pressure | from 0.5 to 8.5 bar |
| Inlet pressure | up to 12 bar |
| Ambient and working temperature | from −10 to +60° C (in dry air without moisture) |
| Gauge connection thread | G1/4″ |
| Materials | Aluminium, technopolymer, NBR |
Additional Information
Note that this regulator is equipped with a consumer-side excess pressure relief valve, and thus is not intended for water pressure regulation.
