Thread
G 1, G 1/2, G 1/4
Do you have any questions about the product?
We will be happy to answer them in messengers

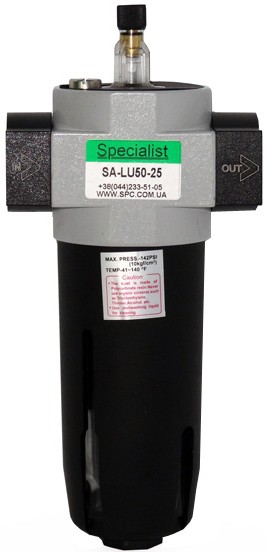

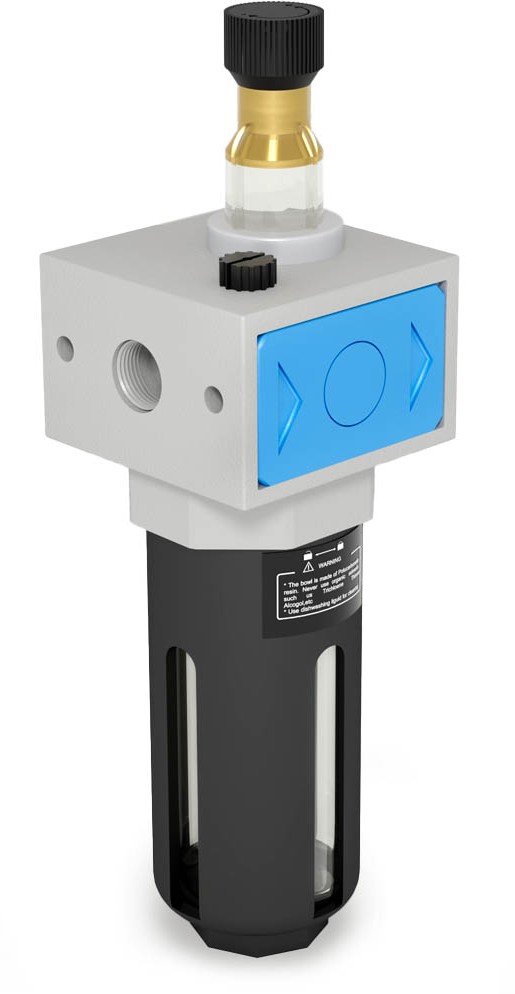

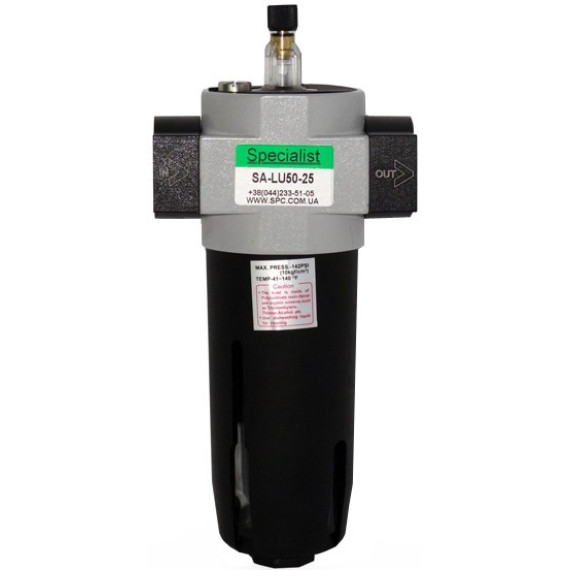

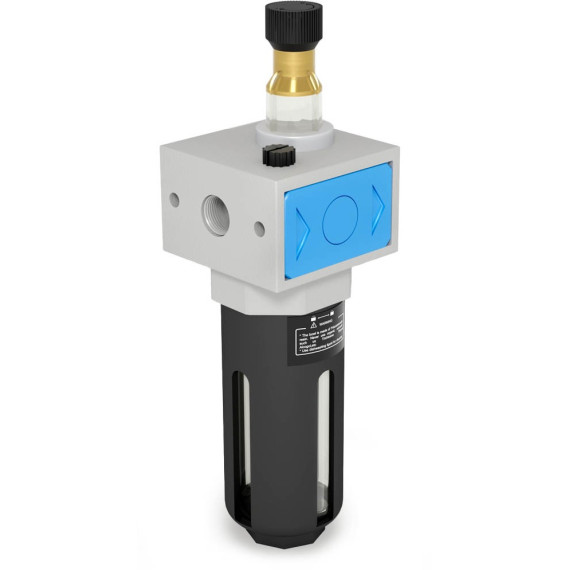

Lubricators up to 8100 l/min, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 0~10 bar (SA-LU series)
In Stock
Thread size
Model
SA-LU20-08
Manufacturer
Specialist
from 771,84 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 3 variants
Name
Model
Price
Availability
Qty
Action

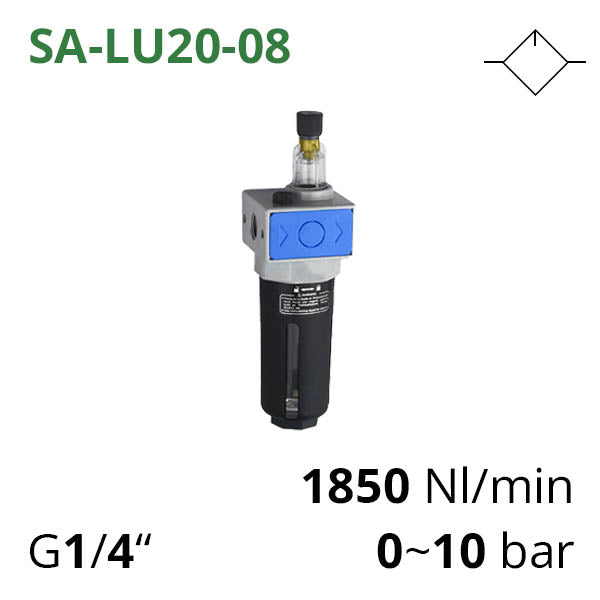

SA-LU20-08
Lubricators up to 8100 l/min, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 0~10 bar (SA-LU series)
Thread size=G 1/4
SA-LU20-08
771,00 UAH
In Stock

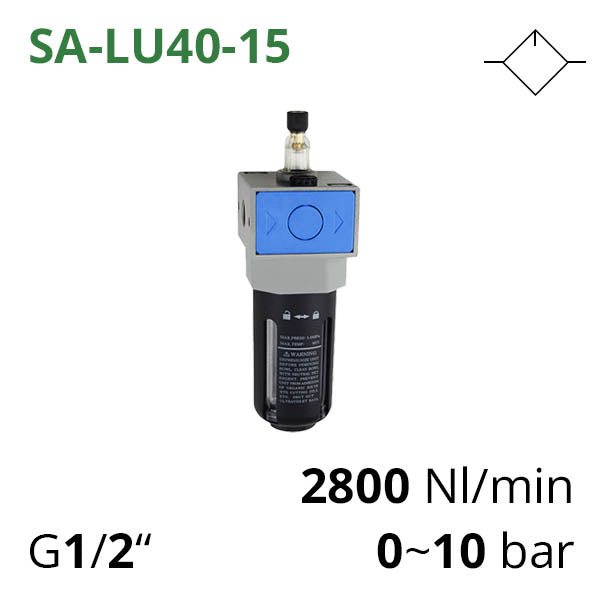

SA-LU40-15
Lubricators up to 8100 l/min, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 0~10 bar (SA-LU series)
Thread size=G 1/2
SA-LU40-15
1 263,00 UAH
In Stock
SA-LU60-25
Lubricators up to 8100 l/min, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 0~10 bar (SA-LU series)
Thread size=G 1
SA-LU60-25
2 161,00 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
The pneumatic lubricator (oil sprayer) of the SA-LU series is used for lubricating tools, cylinders, or other pneumatic equipment by adding mineral oil particles to the supplied compressed air. Recommended for pneumatics are ISO VG32 class mineral oils type D DIN 5150 with a kinematic viscosity of 32 mm2/s, which significantly reduce friction of moving parts and extend the service life of components. An adjustable throttle is provided for regulating oil flow volume.
SA-LU lubricators can be used in pneumatic systems where the inlet pressure is 0-10 bar (1 MPa), and the air consumption of the consumer is up to 8100 l/min.
Delivery set
- SA-LU series lubricator
- Mounting bracket for attachment to a vertical surface
Model code deciphering
Advantages of SA-LU pneumatic lubricators:
- The distinctive feature of SA-LU air lubricators is the impact-resistant plastic bowl on the oil bulb, as well as the option to order a metal protective bowl;
- The SA-LU lubricator can be assembled side by side with SA-RU regulators, SA-FU filters, and SA-WU filter-regulators into a single compressed air preparation unit without using fittings between elements, making the blocks functional and compact;
- Cost corresponds to quality;
- Reliable and durable in operation;
- Modern design
| Model | SA-LU20-08 | SA-LU40-08 | SA-LU40-10 | SA-LU40-15 | SA-LU60-20 | SA-LU60-25 |
|---|---|---|---|---|---|---|
| Connection thread | G1/4″ | G1/4" | G3/8″ | G1/2″ | G3/4″ | G1″ |
| Nominal flow (max) | 1850 nl/min | 2800 nl/min | 7900 nl/min | 8100 nl/min | ||
| Operating environment | Compressed air | |||||
| Inlet pressure | up to 10 bar | |||||
| Recommended oil | Turbine oil VG32 | |||||
| Availability of protective bowl | Yes | |||||
| Protective bowl material | Polycarbonate (standard), metal (upon order) | |||||
Additional information
- The lubricator is installed bulb-down, in a strictly vertical position;
- When mounting, consider the direction of the air flow indicated on the body as an arrow (or the “IN/OUT” inscription above the inlet-outlet ports);
- To adjust the amount of oil particles in the compressed air, use the adjustment screw. The number of drops per minute is visually determined through the transparent cap on top;
- Do not stop the lubricator operation after the initial oil supply to the pneumatic system. Control the level in the bulb and timely refill the air lubricator;
- Oil is refilled up to the mark indicating the maximum level;
- Pneumatic tool lubrication is carried out with oils that meet the ISO VG32 class standard (Type “D” according to DIN 51502).
Read more
