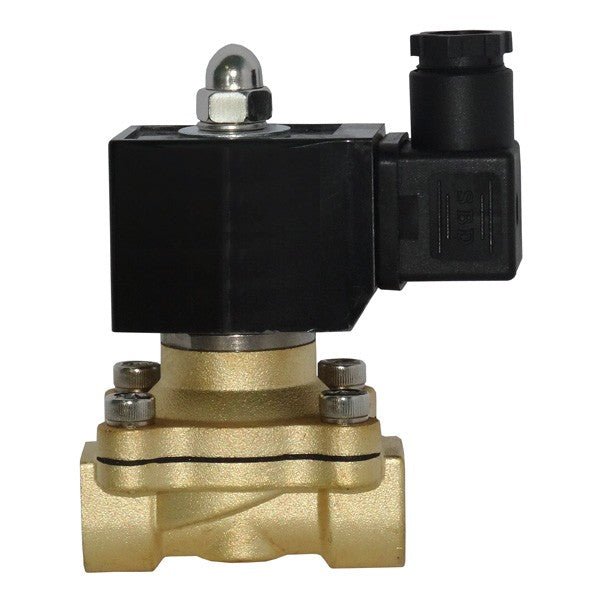

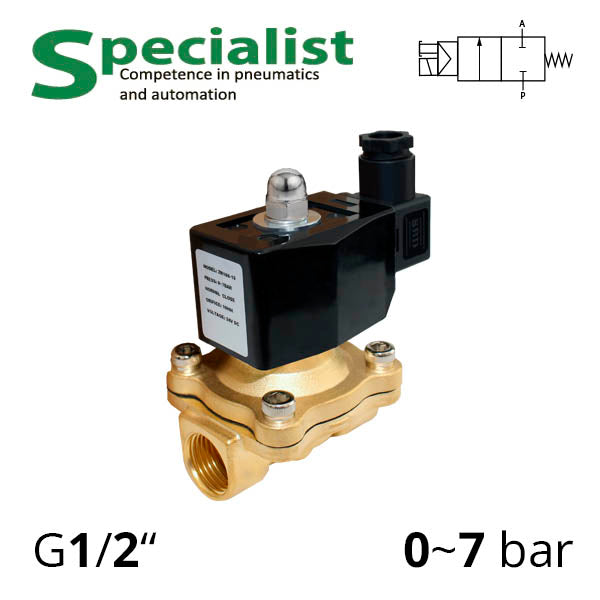

Solenoid valve 2/2 normally closed with G ½″ thread (SV-ZS11-ES-22NC-15)

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 2/2 normally closed with G ½″ thread (SV-ZS11-ES-22NC-15)

Name: Solenoid valve 2/2 normally closed with G ½″ thread (SV-ZS11-ES-22NC-15)
Brand: Specialist
SKU: SV-ZS11-ES-22NC-15-DC24V
Price: 1871.64 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G ½

Model

Manufacturer

Specialist

from 1 871,64 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-ZS11-ES-22NC-15-DC24V

Solenoid valve 2/2 normally closed with G ½″ thread (SV-ZS11-ES-22NC-15)

Power Voltage=DC24V Thread size=G ½

SV-ZS11-ES-22NC-15-DC24V

1 871,64 UAH

In Stock

SV-ZS11-ES-22NC-15-AC220V

Solenoid valve 2/2 normally closed with G ½″ thread (SV-ZS11-ES-22NC-15)

Power Voltage=AC220V Thread size=G ½

SV-ZS11-ES-22NC-15-AC220V

1 871,64 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G ½"

Coil voltage

AC220V, DC24V

Матеріал ущільнення

EPDM

Body material

Bronze

Nominal diameter

TWO 15

Тип контролю

Electromagnetic

Description

Solenoid Valve 1/2″ Series SV-ZS11-ES-22NC-15 is a shut-off valve 2/2 two-position normally closed diaphragm type with unidirectional indirect pilot electrical control. Coil solenoid as per customer choice: ⚡ AC 220 Volt or DC 24V.

The SV-ZS11-ES-22NC-15 solenoid valve is designed for water, air, hydraulic fluids, oils with viscosity up to 20 CTS, gas and other operating media compatible with the materials of the solenoid valve — bronze body and NBR seals. On request, we supply SV-ZS11-ES-22NC-15 valves with stainless steel body and VITON seals. For pipeline connection, the valve has an internal cylindrical pipe thread G ½″.

These solenoid valves as plumbing can operate in non-pressurised systems.

Technical Specifications of Solenoid Valve 2/2 Series SV-ZS11-ES-22NC-15
Design	Two-line two-position normally closed valve with unidirectional pilot electrical control
Material	Bronze, NBR (standard) Stainless steel AISI304 or AISI316, VITON (on request)
Connection	G 1/2″
Mounting	Vertical
Operating Temperature Range	from −5 to +80 °C (with dry air without moisture)
Solenoid Power Supply Voltage	AC 220V, DC 24V
Permissible Voltage Variation	±10%
Operating Medium	Air, water, oils (viscosity up to 20CTS), gas
Operating Pressure Range	0—5 bar (water), 0—7 bar (air), 0—5 bar (oil)
