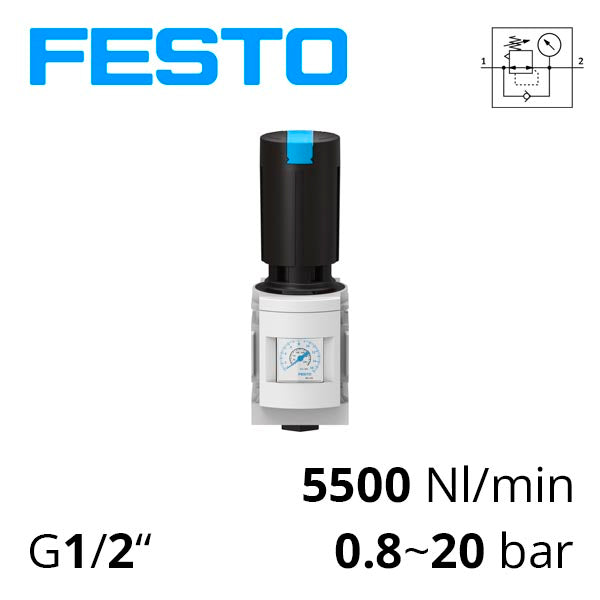

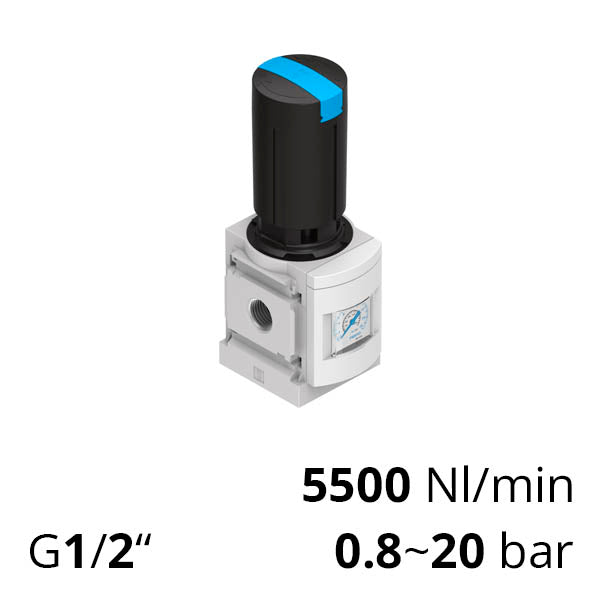

Pressure regulator with gauge Festo series MS6-LR-1/2-D7-AS. The Festo pressure regulator ensures stable pressure control, maintaining it constant regardless of network fluctuations and changes in air consumption. The adjustment handle locks to prevent accidental rotation and unwanted settings changes. Additionally, the device is equipped with integrated functions, such as secondary release and primary release with reverse flow function, which enhances its efficiency and versatility.
Main features of the Festo pressure regulator MS6-LR-1/2-D7-AS
-
Thread size: G1/2
-
Standard nominal flow rate: 5500 l/min
-
Operating pressure: from 0.8 bar to 20 bar
-
Temperature range: from -10 °C to 60 °C
The gauge has a scalable display with available measurement units: [MPa], [bar] and [psi], providing convenience and accuracy in readings. Installation is possible in any position, allowing easy integration of the regulator into any pneumatic system.
Materials of the Festo pressure regulator MS6-LR-1/2-D7-AS
-
Body: Made of PA-reinforced material (polyamide), offering high strength and durability.
-
Seals: Made of NBR (butadiene-nitrile rubber) for reliable sealing.
-
Rotary handle: Made of POM (engineering plastic), ensuring ease and comfort in use.
-
Springs: Made of high-alloy and galvanized steel for enhanced corrosion protection.
Festo MS6-LR-1/2-D7-AS is a pressure regulator with a gauge that will become an indispensable element of your pneumatic system, providing precision, reliability, and long service life.
Specifications of the Festo pressure regulator MS6-LR-1/2-D7-AS
| Main features |
| Manufacturer |
Festo |
| SKU |
529993 |
| Product name |
Pressure regulator |
| Product series |
MS6-LR |
| Group |
Individual module |
| Equipment type |
Regulators |
| Internal standard |
IDO28456 |
| Technical specifications |
| Handle type |
Lockable rotary handle |
| Control type |
Manual |
| Action type |
Direct |
| Connection |
1/2 |
| Maximum pressure hysteresis |
0.25 bar |
| Pressure regulation range |
From 0.5 to 12 bar |
| Indication |
Gauge |
| Maximum standard flow rate |
5500 l/min |
| Function |
Constant output pressure; With initial pressure compensation; With secondary release |
| Dimensional and installation features |
| Construction type |
Diaphragm |
| Inlet connection type |
Internal thread |
| Mounting type |
Front panel installation. Inline installation. With accessories |
| Mounting step |
62 mm |
| Gauge connection |
1/2 |
| Thread type |
G |
| Width |
62 mm |
| Height |
184 mm |
| Length |
78.5 mm |
| Weight |
730 g |
| Material characteristics |
| Body material |
Aluminium alloy |
| Seal material |
NBR (butadiene-nitrile rubber) |
| Control panel material |
PA (polyamide) |
| Diaphragm material |
NBR (butadiene-nitrile rubber) |
| Partition plate material |
POM (polyoxymethylene) |
| Filter material |
PE (polyethylene) |
| Operating conditions |
| Maximum operating pressure |
20 bar |
| Assembly position |
Any |
| Ambient temperature |
From -10 °C to +60 °C |
| Working medium |
Compressed air according to ISO8573-1:2010 [7:4:4] Inert gases |
| Working temperature |
From -10 to +60 °C |
| Note on working medium |
Operation with lubrication possible (continuous lubrication required) |
| Corrosion resistance |
2 - Medium corrosion resistance |
