Thread
G 1/8", G 1/4", G 3/8", G 1/2"
Do you have any questions about the product?
We will be happy to answer them in messengers

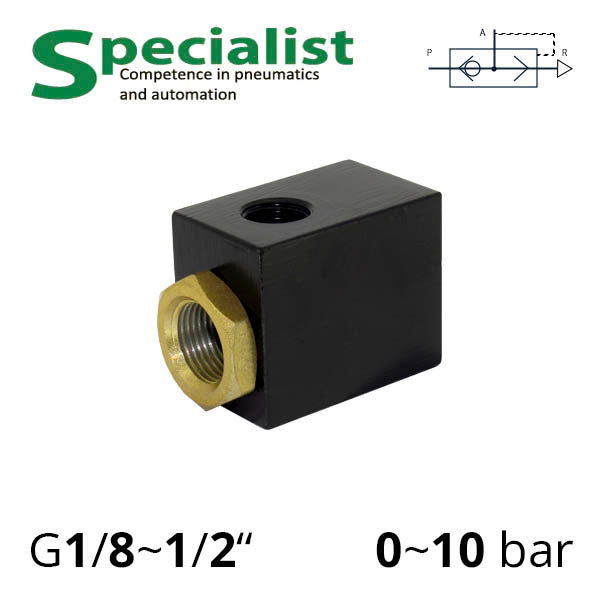

Quick exhaust valve series SO-QVB
In Stock
Thread size
Model
SO-QVB-06
Manufacturer
Specialist
from 283,80 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 4 variants
Name
Model
Price
Availability
Qty
Action
SO-QVB-15
Quick exhaust valve series SO-QVB
Thread size=G 1/2
SO-QVB-15
1 080,54 UAH
In Stock
SO-QVB-10
Quick exhaust valve series SO-QVB

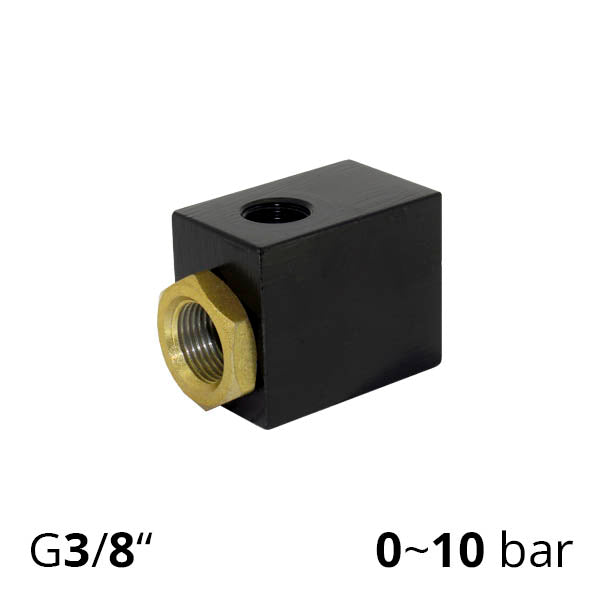

Thread size=G 3/8
SO-QVB-10
458,40 UAH
In Stock
SO-QVB-08
Quick exhaust valve series SO-QVB

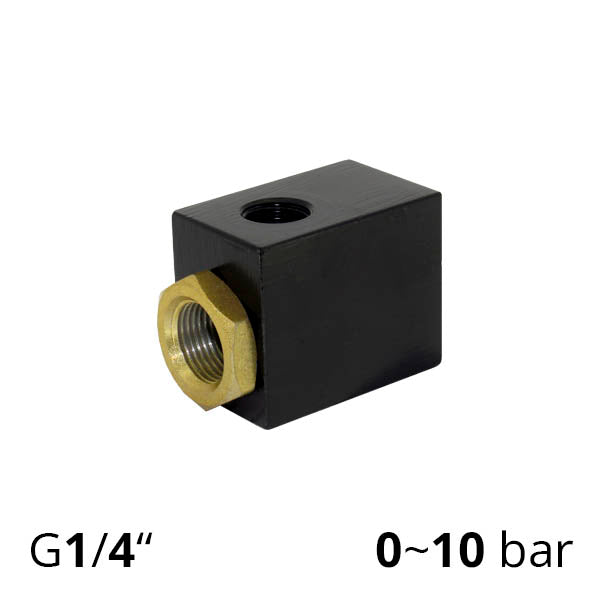

Thread size=G 1/4
SO-QVB-08
439,86 UAH
In Stock
SO-QVB-06
Quick exhaust valve series SO-QVB

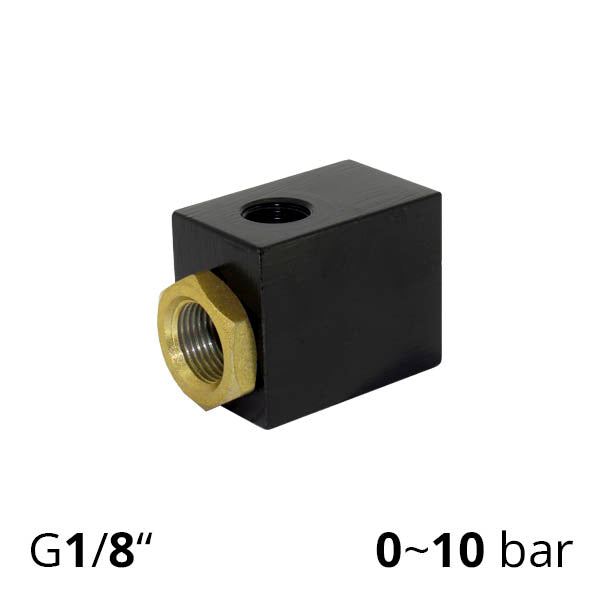

Thread size=G 1/8
SO-QVB-06
283,80 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
SO-QVB Series Quick Exhaust Valve is designed to accelerate the operation of pneumatic cylinders and efficiently release compressed air from the cylinder cavities. It reduces the activation time of pneumatic cylinders, lessens the load on control valves, and increases the overall efficiency of pneumatic systems.
Main features of SO-QVB:
- Threaded bronze inserts: Input-output with thread G1/8" - G1/2".
- Exhaust port: Size may be smaller than the input — refer to the dimension table for precise data.
- Seal: High-quality NRB seal used, ensuring tightness and reliability.
- Working pressure: 0 - 10 bar.
The SO-QVB pneumatic valve speeds up the action of pneumatic cylinders by reducing air resistance during the piston's return stroke:
- When air is supplied: The closing element (piston) blocks the exhaust port, directing air into the cylinder.
- During the retraction of the rod: The closing element (piston) blocks the input port, and air is released into the atmosphere through the exhaust port.
Bypassing the pneumatic distributor and having a large exhaust port diameter ensures rapid pressure release, increasing the cylinder's activation frequency. It also allows for the use of distributors with smaller passage diameters and reduces the likelihood of condensate formation in the supply line.
Unlike the SO-QVA series valves, the SO-QVB series integrates directly into the pipeline. This simplifies installation and makes it ideal for systems with limited space.

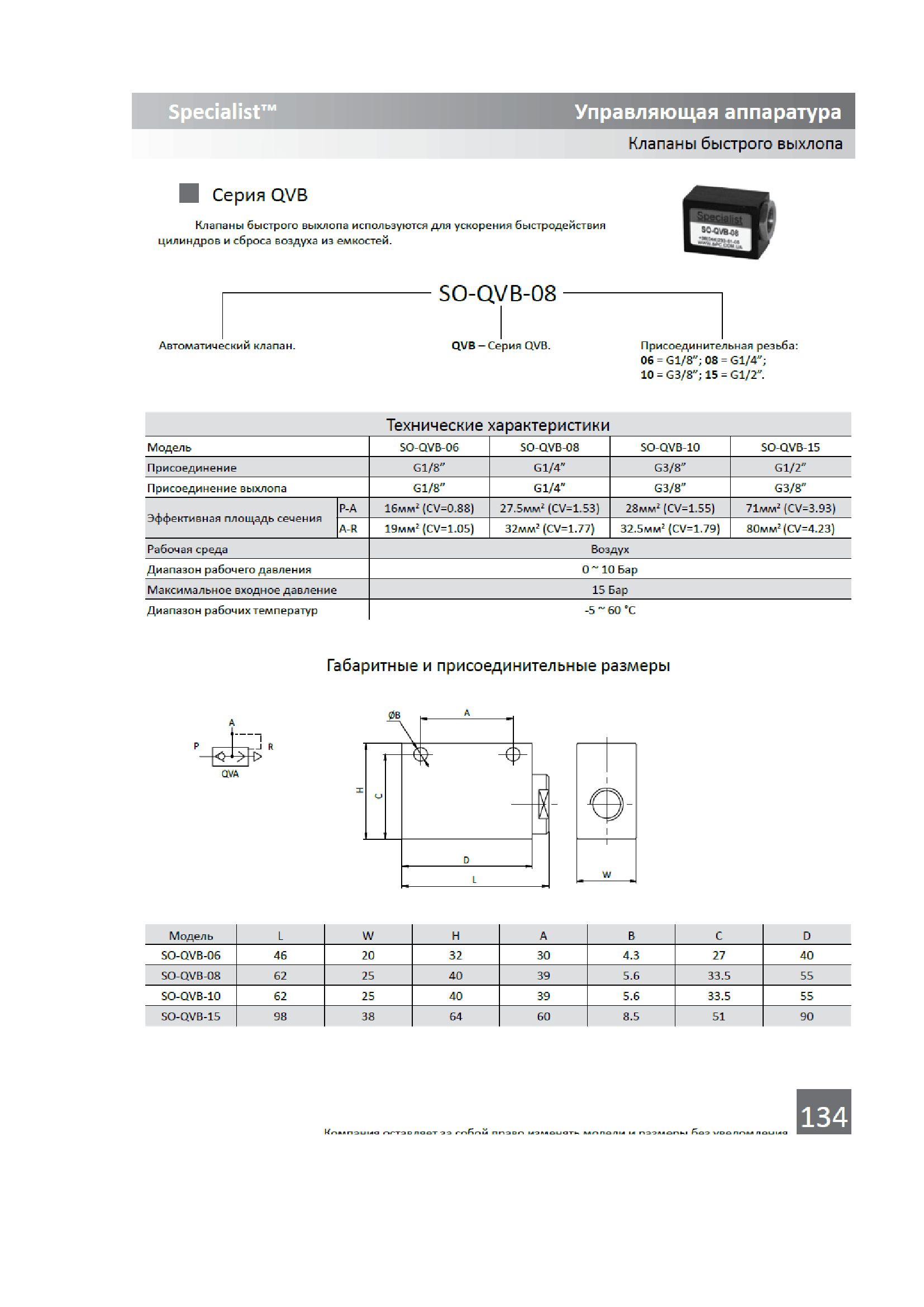

| Model | SO-QVB-06 | SO-QVB-08 | SO-QVB-10 | SO-QVB-15 | |
|---|---|---|---|---|---|
| Connection | G1/8″ | G1/4″ | G3/8″ | G1/2″ | |
| Exhaust connection | G1/8″ | G1/4″ | G3/8″ | G3/8″ | |
| Effective cross-section area | P→A | 16 mm2 (CV=0.88) | 27.5 mm2 (CV=1.53) | 28 mm2 (CV=1.55) | 71 mm2 (CV=3.93) |
| A→R | 19 mm2 (CV=1.05) | 32 mm2 (CV=1.77) | 32.5 mm2 (CV=1.79) | 80 mm2 (CV=4.23) | |
| Working environment | Air | ||||
| Working pressure | from 0 to 10 bar | ||||
| Maximum input pressure | 15 bar | ||||
| Operating temperature range | from -5 to 60°C | ||||
