Vacuum bellows suction cup SVV-SBA-25N-G1M
In Stock
Product Code:
SVV-SBA-25N-G1M
Brand:
Specialist
982,32 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description

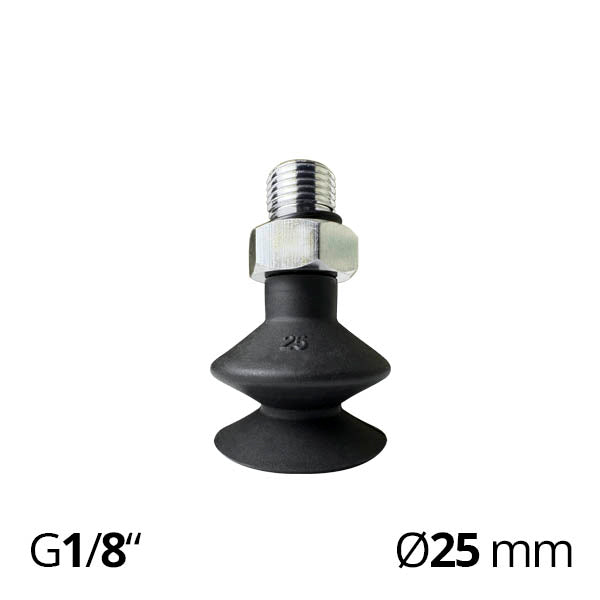

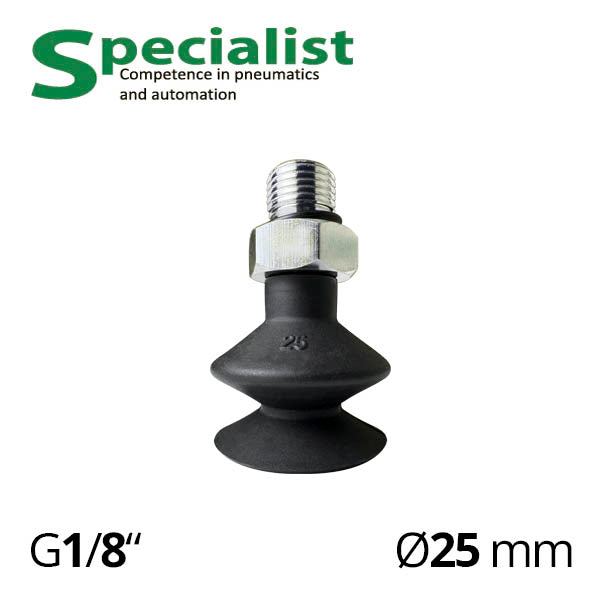

Model SVV-SBA 25N-G1F is a bellows-type vacuum suction cup for industrial grips and manipulators, equipped with a built-in nipple with external G1/8″ male thread. The default pad is made from NBR rubber with 1.5 bellows (low bellows) volume 3.2 cm³, suction diameter 25 mm, and force up to 17.3 N at a vacuum depth of -60 kPa.
SBA series rubber suction cups come in 14 sizes with diameters ranging 6~78 mm and are highly versatile — they are robust enough to securely hold substantial loads during movement and can adapt to both convex and concave shapes of parts.
Besides standard models, you can buy this shape of vacuum suction cup from us not only in nitrile rubber but also in silicone or heat-resistant rubber. The latter is suitable for conveyor movement of workpieces after hot bending of sheet metal and for moving glass after forming.
