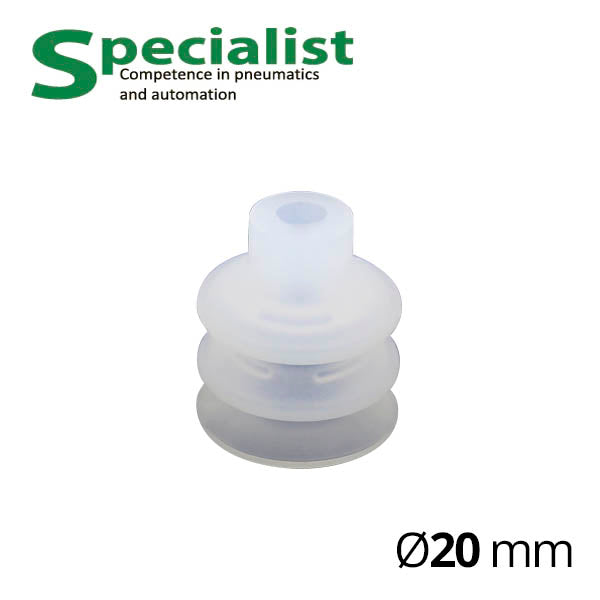

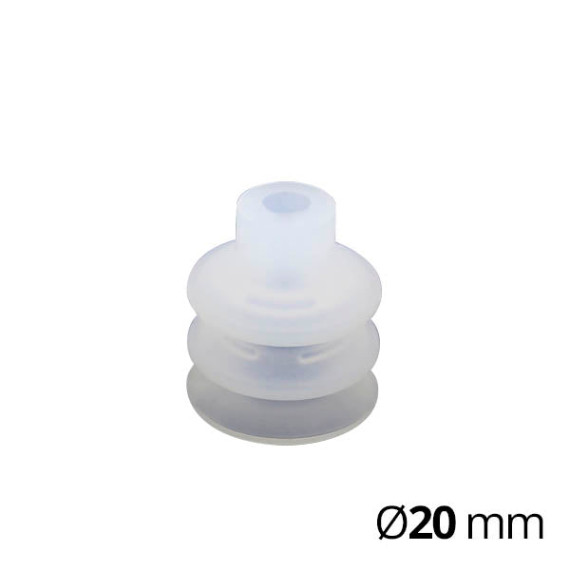

Bellows vacuum suction cup SVV-SPC-20-WS
In Stock
Product Code:
SVV-SPC-20-WS
Brand:
Specialist
636,72 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Model SVV-SPC-20-WS is an industrial vacuum suction cup made of silicone with a 2.5-bellows volume of 2 cm3 and diameter 22 mm, designed to operate from an ejector vacuum generator or pump. Nominal vacuum depth is -60 kPa, and suction force is 3.5 N.
Bellows suction cups with 2.5 folds on the surface provide flexibility in vacuum gripping — allowing it to attach to significantly convex and concave plastic surfaces, effectively gripping packaging carton boxes, and gently moving them. Industrial silicone suction cups are softer and provide delicacy when contacting the object compared to rubber NBR. They can be used individually or in a group installed on a mounting plate. Recommended hose diameter is 6 mm, and vacuum supply pipe should be as short as possible, but not more than 2 m.
