Bellows vacuum suction cup for metal SVV-SOB-40X80-2GF

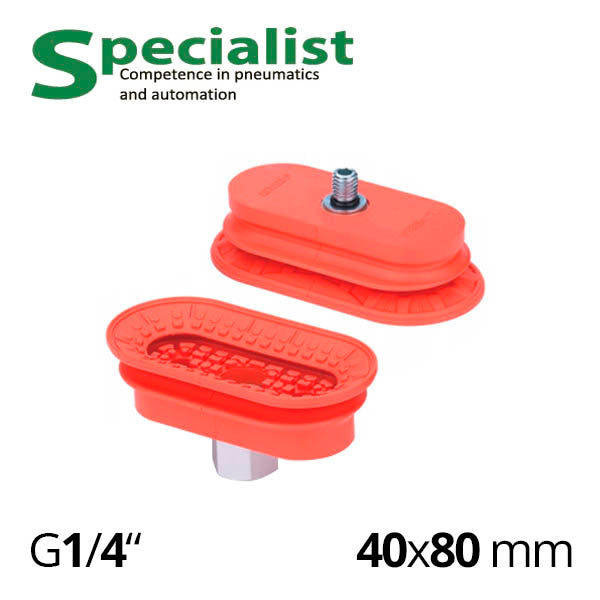

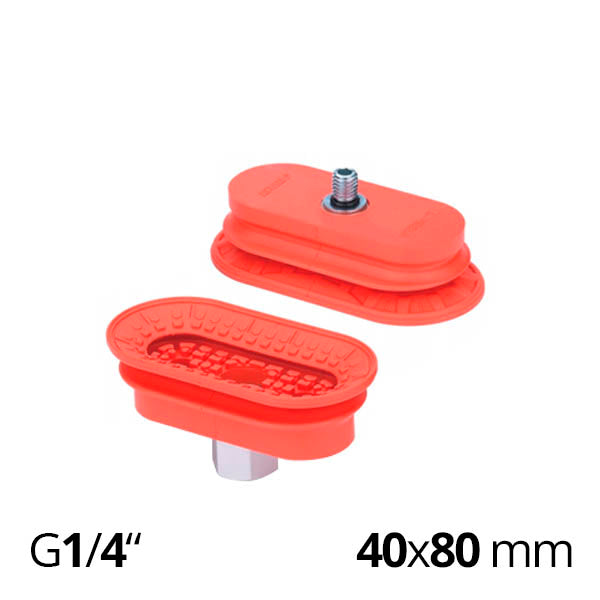

Model SVV-SOB-40X80-2GF is a bellows vacuum suction cup of oval shape 40x80 mm with embossed surface and built-in female threaded adapter ¼ inch, ideal for moving narrow and long products from smooth sheet metal in the machinery industry. For example, moving blanks with precise positioning in stamping presses and press machines.

The oval shape provides a more secure grip on thin elongated aluminum sheets without deformation or deep drawing. The corrugated design with folds allows compensating for slight bending and bevel of the part intended for manipulator gripping.

The vacuum suction cup SVV-SOB-40X80-2GF can also hold oiled sheets. By default, the rubber pad of the suction cup is made from NBR with a single sealing edge and ribbed surface. The stiffening ribs give the suction cup additional stability and grip stability, the profiled groove design offers better traction and works against slippage, while the nitrile rubber, as an elastomer, is optimal being resistant to synthetic oils.

The vulcanised (welded) threaded fitting provides greater joint strength - besides the default option, you can order the suction cup with a coupling nipple as either "female" or "male"; thread type — metric (M10×1.5 or M14×1.5) or cylindrical pipe (G ¼ or ⅜″).4 sizes of the vacuum pad are available for selection.
