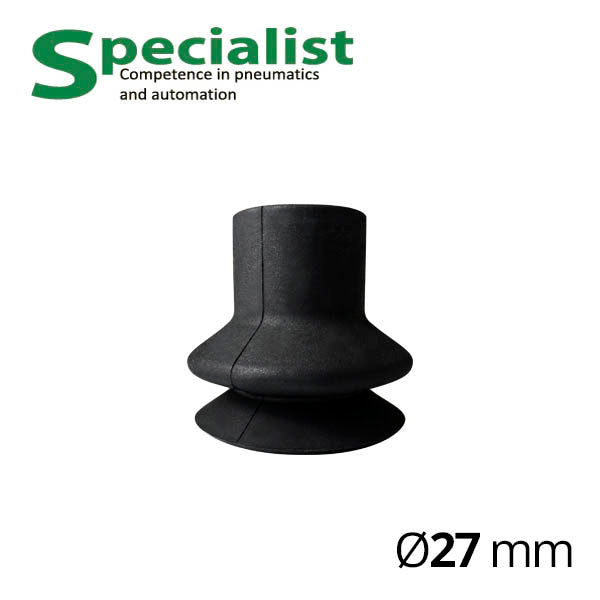

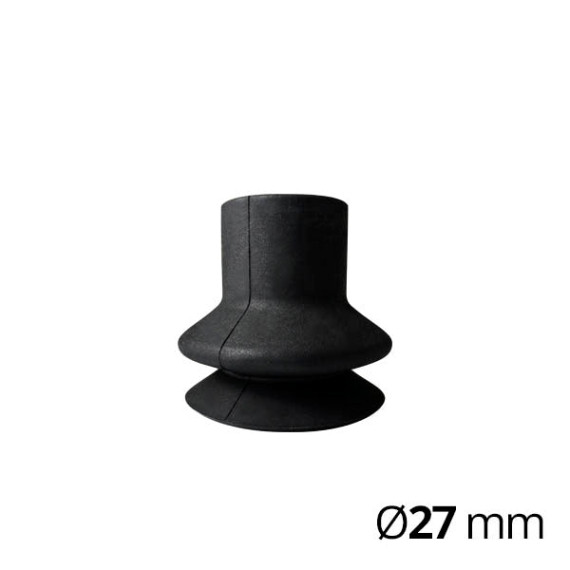

Vacuum bellows suction cup SVV-SBA-27N-NIL-NIL
In Stock
Product Code:
SVV-SBA-27N-NIL-NIL
Brand:
Specialist
442,68 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
The model SVV-SBA-27N-NIL-NIL is a vacuum suction cup with 1.5-bellows volume 3.4 cm3 and working surface diameter 27 mm with nominal suction force 24 N at a vacuum level of -60 kPa. Recommended vacuum hose — diameter 2 m (it's better to keep the tube as short as possible). Designed for replacing a worn-out cup in a vacuum system.
By default, this low bellows suction cup is made from nitrile rubber (NBR) — the most popular, versatile, durable and economical elastomer for vacuum technology, possessing resistance to pneumatic system lubricant oil, other mineral oils and water.
You can order this suction cup with a diameter from 6 to 78 mm, with a cup made of artificial and natural rubber, white silicone, and also in high-temperature design. Additionally (on request), this type of vacuum suction cup can be equipped with a threaded connector for connection.
