Disc rotary valve DU 250 stainless inter-flange collapsible series SCBF-D674

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 250 stainless inter-flange collapsible series SCBF-D674

Name: Disc rotary valve DU 250 stainless inter-flange collapsible series SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-250
Price: 13711.44 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 13 711,44 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-250

Disc rotary valve DU 250 stainless inter-flange collapsible series SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-250

13 711,44 UAH

In Stock

SCBF-D674-10XES-250

Disc rotary valve DU 250 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-250

15 884,04 UAH

In Stock

SCBF-D674-10XFS-250

Disc rotary valve DU 250 stainless inter-flange collapsible series SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-250

18 158,88 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

67 mm

Диск

SS304, SS316

Матеріал диску

stainless steel SS304, stainless steel SS316

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

platform under drive F05/9

Description

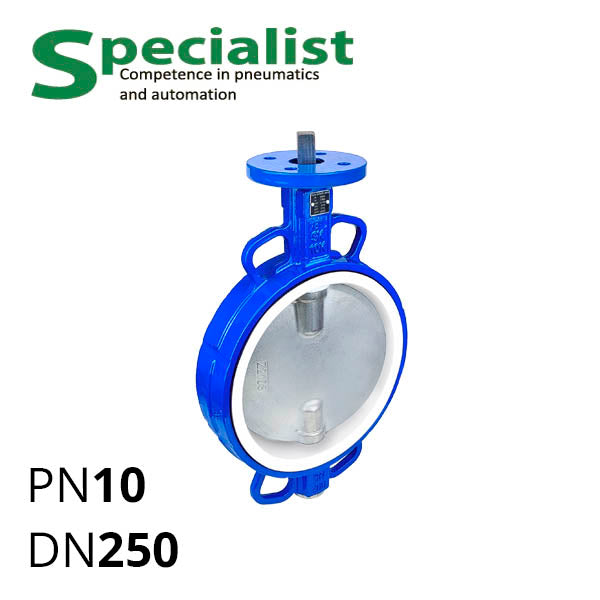

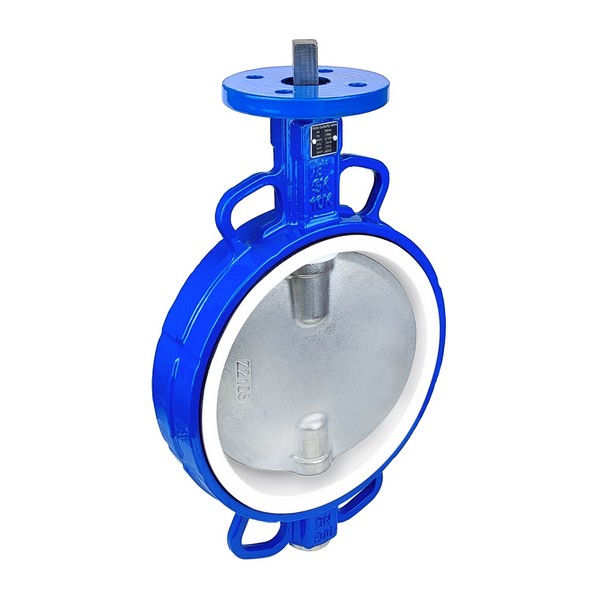

Butterfly Valve Wafer Stainless Steel Series SCBF-D674-10XEC/10XES/10XFS-250 is a dismantle and repairable butterfly valve with a cast carbon steel WCB body and stainless steel CF8/CF8M disc (equivalent to AISI 304/316 SS). It has a nominal diameter of DN 250 mm. Suitable for installation with pneumatic, electric actuators or handles and comes with a standardised platform size F10.

These wafer butterfly valves DN 250 are control valves — they can be used for "open/close" operation or intermediate positions to regulate the volume of non-aggressive gases, air, water, liquids with weak concentration of acids and alkalis, chemical mixtures compatible with CF8/CF8M and EPDM/PTFE. Permissible working pressure (by default) — PN up to 10 bar.

Table — Main Parameters of Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-250
DN	250 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB (Carbon Steel)
Disc Material	CF8/CF8M to ASTM A351 (equivalent SS304/SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95°C
PTFE Temperature Range	from −40 to 160°C
Actuator Platform ISO 5211	F10
Shaft Output	Square 22 mm
Recommended Torque for Actuator	not less than 395 N⋅m for EPDM, not less than 540 N⋅m for PTFE
Installation Thickness	67 mm

Specialist Company (Ukraine) directly imports shut-off and control valves from China and Europe, and also stocks manual, electric and pneumatic actuators, flanges, other pipeline fittings components — positioners, etc. You can buy the valve you need in the right sizes and materials at a fair price.
