Disc rotary valve DU 250 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-250

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 250 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-250

Name: Disc rotary valve DU 250 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-250
Brand: Specialist
SKU: SCBF-D673-10XEX-250
Price: 6160.86 UAH
Availability: InStock

In Stock

Diameter of conditional passage

250

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 6 160,86 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-250

Disc rotary valve DU 250 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-250

Diameter of conditional passage=250 Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-250

6 160,86 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

disc rotary shutter

Nominal diameter

250

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

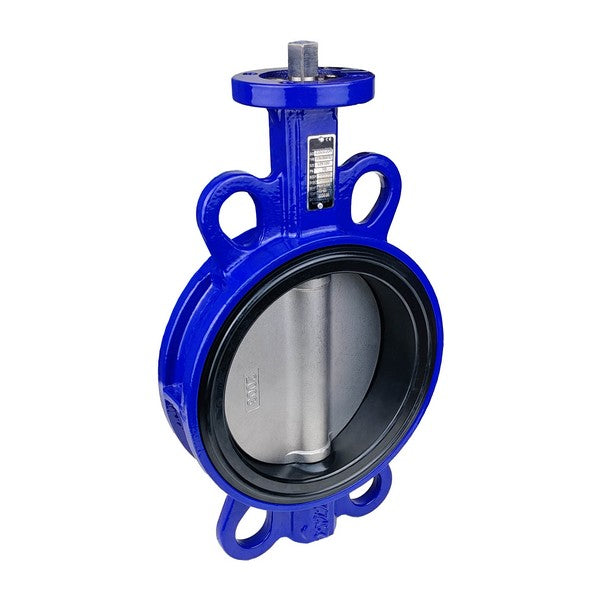

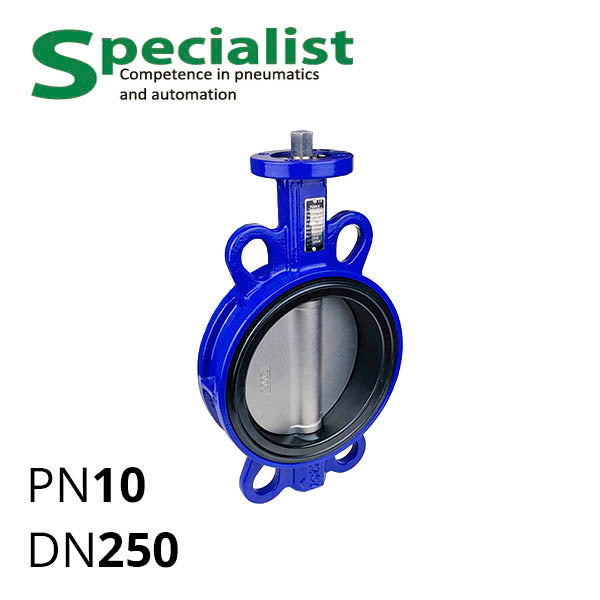

The industrial cast iron wafer butterfly valve series SCBF-D673-10XEX-250 is a non-dismantlable butterfly valve with a body and disc made of cast carbon steel WCB, which, unlike grey and ductile iron, can operate under high pressure and has better thermal resistance. Nominal pipe diameter DN 250 mm. Supplied with standardized platform for installation of pneumatic, electric actuators or handle size F10.

These cast iron wafer butterfly valves DN 250 are control pipeline fittings — they can be used for operation in "open/close" mode as well as intermediate positions for volume regulation of non-aggressive gases, air, water, liquids with low concentration of alkalis and limited small amount of acids. The working medium should be checked for compatibility with WCB and EPDM. Permissible working pressure (by default) — PN up to 10 bar.

Table — Main parameters of the wafer butterfly valve SCBF-D673-10XEX-250
DN	250 mm
Nominal pressure	PN 10 bar (1 MPa)
Body material	WCB according to ASTM A216
Disc material	WCB according to ASTM A216
Seal material	EPDM
Operating temperature	from −30 to 95° C
Mounting platform ISO 5211	F10
Shaft output	square 22 mm
Recommended actuator torque	at least 395 N⋅m
Installation thickness	67 mm

Our company Specialist (Ukraine) also supplies DN250 valves with materials at customer's request and installed actuators (handles, pneumatic actuators and electric actuators with position control).
