Valve for bulk materials DN300 (SCBF-BV2-6JA-300)

Do you have any questions about the product?
We will be happy to answer them in messengers

Valve for bulk materials DN300 (SCBF-BV2-6JA-300)

Name: Valve for bulk materials DN300 (SCBF-BV2-6JA-300)
Brand: Specialist
SKU: SCBF-BV2-6JA-300
Price: 9222.96 UAH
Availability: InStock

In Stock

Product Code:

SCBF-BV2-6JA-300

Brand:

Specialist

9 222,96 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Technical specifications

Connection type

Flange

Installation length

77 mm

Матеріал диску

Cast iron

Матеріал ущільнення

NBR

Body material

Aluminum alloy

Тип засувки

Disc rotary shutter

Nominal diameter

300

Inlet pressure

Ru6 (6 bars)

Тип контролю

Drive-in site

Description

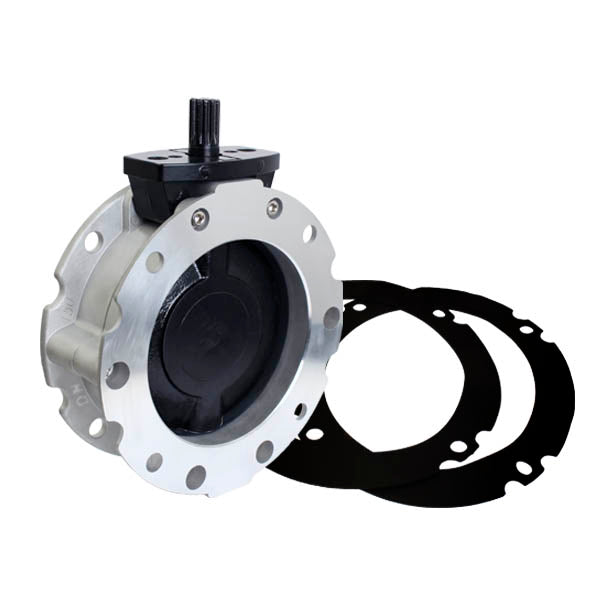

Flange butterfly valve with rotary disc series SCBF-BV2-6JA-300 is used for air-gravity transportation of flowable bulk materials (granules, concrete, sand, etc.) at low pressure PN0.1. The series is designed for pipes to silos and hoppers with a nominal bore diameter of d 300 mm. This pipeline valve is installed using flange mounts with additional rubber seals between the pipe and valve, which are included in the base package SCBF-BV2-6JA-300 Specialist.

By default, we supply valves SCBF-BV2-6JA-300 with cast iron disc, NBR seals, and unpainted cast aluminium body, which reduces the product weight. Upon request, we manufacture valves with disc rubber lining and other materials.

At the customer's choice, rotary disc valves for pipelines and bulk material hoppers can be equipped with a set:

platform-bracket for pneumatic or electric drive, connecting shaft according to ISO (in the form of an octagonal star)
adapter for connecting shaft gate-drive under square
manual control

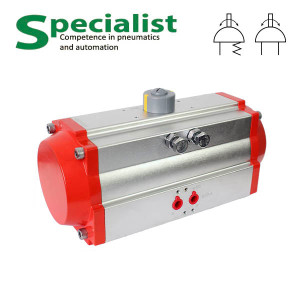

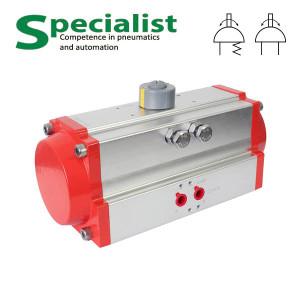

pneumatic drive RST/RAT for operation in both "open-close" and adjustable flow mode with pneumatic positioner
electric actuator
