Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders

Do you have any questions about the product?
We will be happy to answer them in messengers

Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders

Name: Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders
Brand: Specialist
SKU: SC-CMS-E-020
Price: 409.32 UAH
Availability: InStock

In Stock

Довжина кабелю

2 м 5 м

Тип датчику

Холла NPN Холла PNP 2-х провідний

Model

Manufacturer

Specialist

from 409,32 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 4 variants


Name

Model Price Availability Qty

Action

SC-CMS-E-020

Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders

Довжина кабелю=2 м Тип датчику=2-х провідний

SC-CMS-E-020

409,32 UAH

In Stock

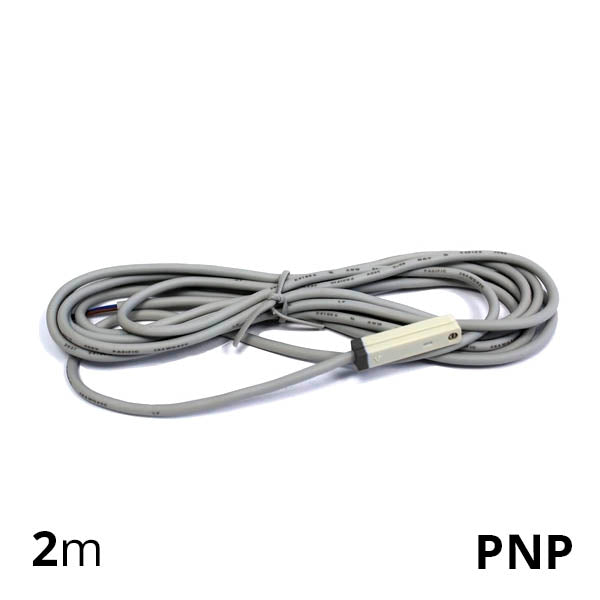

SC-DMS-E-P-020

Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders

Довжина кабелю=2 м Тип датчику=Холла PNP

SC-DMS-E-P-020

562,14 UAH

In Stock

SC-DMS-E-N-020

Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders

Довжина кабелю=2 м Тип датчику=Холла NPN

SC-DMS-E-N-020

483,00 UAH

In Stock

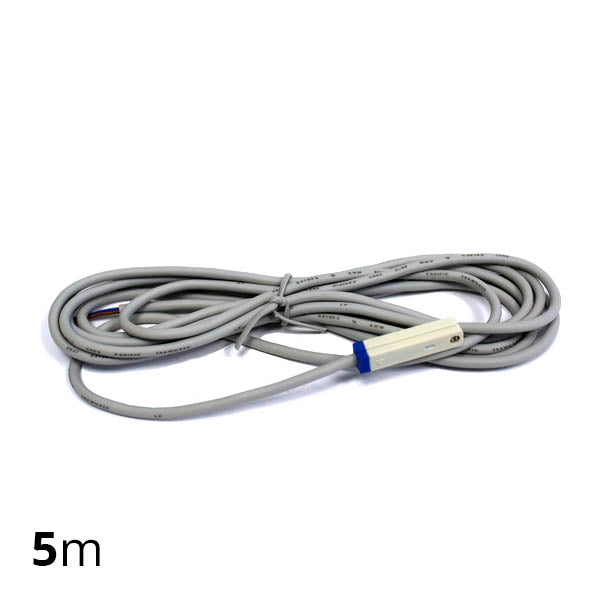

SC-CMS-E-050

Magnetic position sensors of the SC-CMS-E/SC-DMS-E series for pneumatic cylinders

Довжина кабелю=5 м Тип датчику=2-х провідний

SC-CMS-E-050

643,98 UAH

In Stock

Technical specifications

Довжина кабелю

2 м, 5 м

Тип датчику

Холла NPN, Холла PNP, 2-х провідний

Description

Normally open reed switches SC-CMS-E or Hall effect sensors SC-DMS-E are designed to solve various automation tasks, particularly for controlling the position of the piston in linear or rotary pneumatic cylinders. Magnetically sensitive sensors for visual indication are equipped with an LED on top of the device body and are available in three connection types:

Reed sensors 2-wire for closing a two-wire AC or DC circuit with voltage from 5 to 240 Volts;
Three-contact Hall effect sensors with operating voltage from 5 to 28 V AC:
1. Hall sensor, PNP connection type
2. Hall sensor, NPN connection type

The magnetic sensors of this series are delivered with a specially shaped body that does NOT require additional fastenings for installation in T-shaped slots of devices. Before installation, turn the screw on the body of the magnetic contact sensor by 90 degrees, insert it into the slot to the desired position, and fix it by turning the screw back by a quarter of a turn.

Table 1 — Technical Specifications of Magnetically Sensitive Sensors SC-CMS-E
Variety	Hall Sensors			Reed Switches
Series	—	SC-DMS-E-N	SC-DMS-E-P	SC-CMS
Type	Two-wire normally open	Three-wire NPN	Three-wire PNP	Two-wire normally open
Operating Voltage	10...28 V AC	5...30 V AC		5...240 V AC/DC
Output Current	2.5...10 mA	30 V/200 mA max		100 mA
Max Power	2.8 W	6 W		10 W
Current Consumption	3 mA max	5 mA max		—
Max Frequency	1000 Hz			200 Hz
Protection Class	IP64/IP68			IP64
Protection	Overvoltage protection, reverse polarity protection			—
Vibration Resistance	50G			50G
Operating Temperature	-10~70° C
Storage Temperature	-20~80° C
