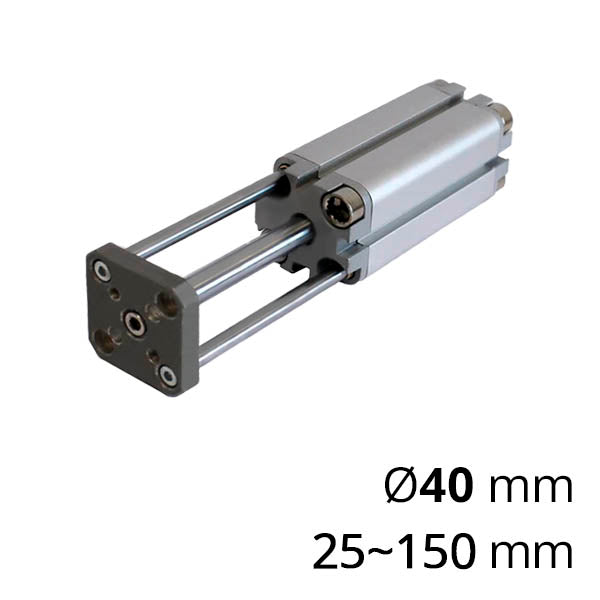

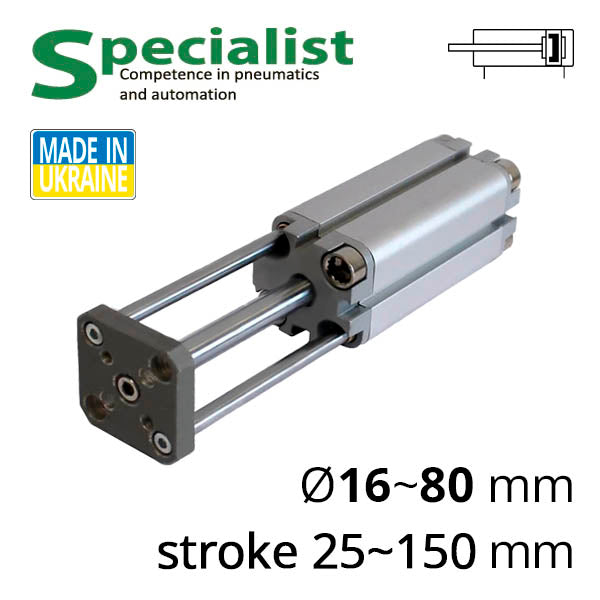

SC-ADR belong to the compact short-stroke double acting pneumatic cylinders with a single-ended piston rod without built-in buffer. They are manufactured with a piston diameter up to 100 mm, feature a default piston magnet, as well as an anti-rotation platform. Anti-rotation cylinders of this type are often found on Chinese-made machines, barcode application machines, label and inscription applicators on packages.
| Piston Diameter, mm | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Connection Thread to Pneumatic Line | M5×0.8 | G1/8″ | ||||||||
| Mode of Action | Double Acting (default), Single Acting (on request) | |||||||||
| Magnet on Piston | With Magnet on Piston (default), without magnet (on request) | |||||||||
| Rod | Single-Ended Rod (default), Through Rod (on request) | |||||||||
| Working Medium | Compressed air (after 40 µm filter) | |||||||||
| Operating Pressure Range | 0.1...10 bar | |||||||||
| Maximum Inlet Pressure | 12 bar | |||||||||
| Operating Temperature Range | from −10 to 60°C | |||||||||
| Damping | Rubber washer | |||||||||
| Sensor Type (for cylinder SC-ADR with piston magnet) | SC-CMS-G or SC-DMS-G | |||||||||
Short-stroke pneumatic cylinders SC-ADR have an aluminium sleeve with T-shaped grooves on the housing, allowing for convenient position sensor installation.
Short-stroke double acting pneumatic cylinders SC-ADR with a single-acting rod and anti-rotation platform have two ports for connecting to the pneumatic line. Air supply under pressure to the rodless cavity (from the backside) causes the rod to extend, while pressure release and air supply from the opposite side (from the rod side, into the rod cavity) causes the rod to retract. The rod can only be extended forward, and the other end of the pneumatic cylinder has a closed cap.
At "Specialist" company, you can also purchase pneumatic cylinders based on this series:
Order by contacting a manager who will help you form a specification for the pneumatic cylinder manufacturing.
