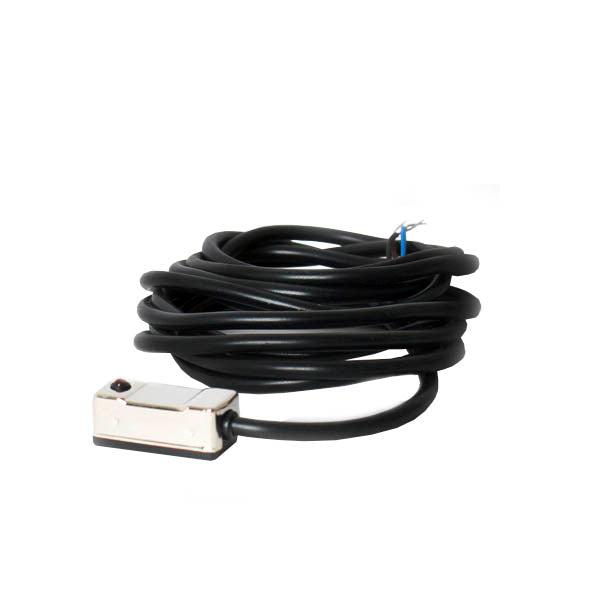

Magnetic position sensor (reed switch) of the SC-CS1-U series for pneumatic cylinders
In Stock
Product Code:
SC-CS1-U
Brand:
Specialist
332,26 UAH
-40%
199,20 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Magnetic position switch (reed switch) with LED model SC-CS1-U is supplied with a housing shape for mounting on pneumatic cylinders with a round barrel and open studs, installed using a mounting bracket SC-SH.
The switch is a 2-wire normally open reed switch.
| Series | SC-CS1-U | |||
|---|---|---|---|---|
| Connection Type and Contact Status | Two-wire normally open | |||
| Operating Voltage | 5...240 V AC/DC | |||
| Maximum Current | 100 mA | |||
| Maximum Load | 24 VA | |||
| Voltage Drop (at 100 mA) | 2.5 V | |||
| Indication | Red LED | |||
| Operating Temperature | -10~70° C | |||
| Protection Rating | IP67 | |||
Wiring Diagram for Reed Switch SC-CS1-U
