Pneumatic Cylinder Position Sensors

Magnetic position sensors for pneumatic cylinders are mostly reed switches with an open contact that, when approached by the electromagnetic field from a piston with an installed PVC magnet, close the circuit of direct or alternating current. In addition to reed sensors, a more sensitive Hall detector may be installed on the pneumatic cylinder.

Price of Pneumatic Cylinder Position Sensors

The price of reed switches for pneumatic cylinders in Ukraine varies from 176 to 600 UAH depending on the presence of an LED on the body, cable length, sensor quality, and supplier.

Our company "Specіalist" is a Ukrainian manufacturer of pneumatic drives, directly imports components, and keeps them in stock — order reed position sensors for pneumatic cylinders, as well as other pneumatic accessories from us. We provide full technical documentation for the products and regularly update the prices in the online store to keep them up-to-date. Magnetic position sensors can be purchased in wholesale or retail. Delivery by Nova Poshta to any city: Kyiv, Dnipro, Odesa, Kharkiv, Zaporizhzhia, and others.

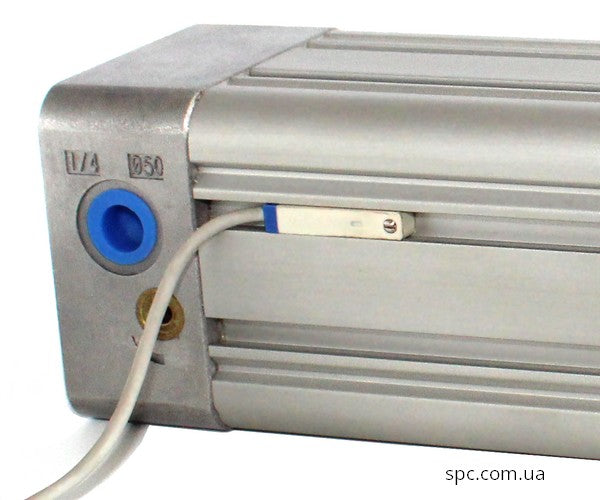

Installation of Reed Switch on Pneumatic Cylinder

Depending on the shape and size of the reed switch body, they are installed in T-shaped slots on the profile sleeve of the pneumatic cylinder (recessed sensors) or secured with additional fastenings on round sleeves. All our reed switches and Hall sensors are equipped with an LED on the top of the device for visual indication.

Depending on the type of sensor, it may be connected to circuits of direct or alternating current:

• 3-wire PNP or NPN sensors are intended only for direct current;
• 2-wire sensors can switch circuits of both direct and alternating currents.
