Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

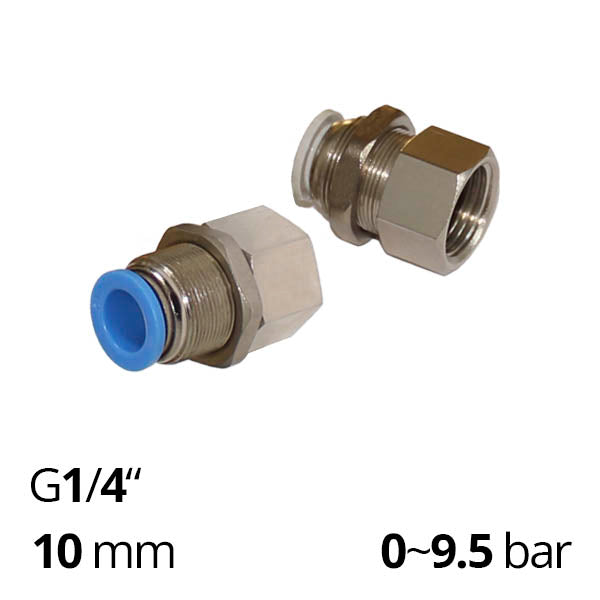

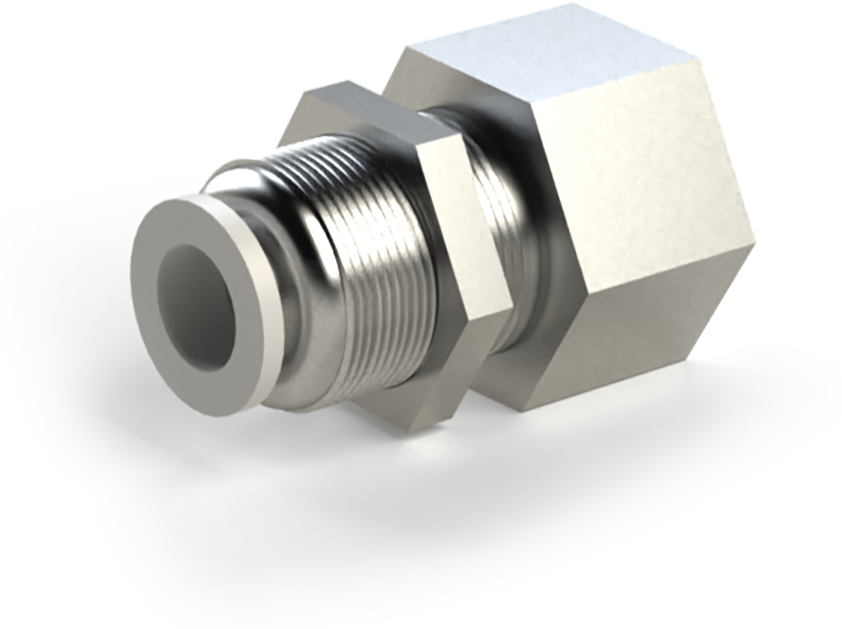

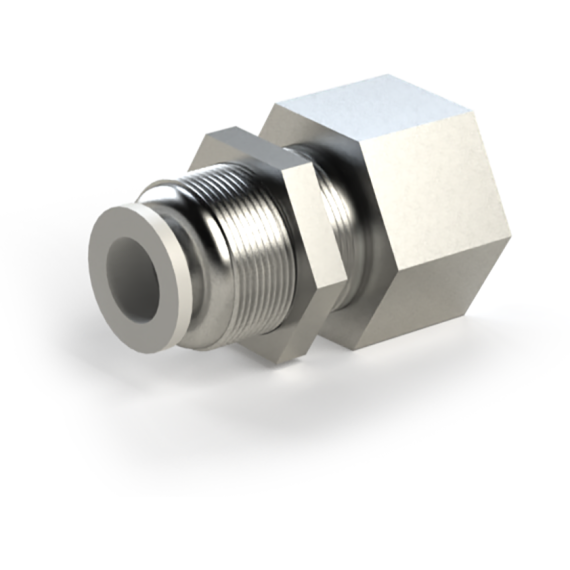

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Name: Collet fitting SF-EPMF for tube with internal thread and mounting nuts
Brand: Specialist
SKU: SF-EPMF 04-G01
Price: 87.72 UAH
Availability: InStock

In Stock

Zanga diameter

4 mm 6 mm 8 mm 10 mm 12 mm

Carving inner

G 1/2 G 1/4 G 1/8 G 3/8

Model

Manufacturer

Specialist

from 87,72 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 11 variants


Name

Model Price Availability Qty

Action

SF-EPMF 04-G01

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=4 mm Carving inner=G 1/8

SF-EPMF 04-G01

87,72 UAH

In Stock

SF-EPMF 06-G01

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=6 mm Carving inner=G 1/8

SF-EPMF 06-G01

87,72 UAH

In Stock

SF-EPMF 06-G02

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=6 mm Carving inner=G 1/4

SF-EPMF 06-G02

107,52 UAH

In Stock

SF-EPMF 08-G01

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=8 mm Carving inner=G 1/8

SF-EPMF 08-G01

125,70 UAH

In Stock

SF-EPMF 08-G02

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=8 mm Carving inner=G 1/4

SF-EPMF 08-G02

143,88 UAH

In Stock

SF-EPMF 08-G03

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=8 mm Carving inner=G 3/8

SF-EPMF 08-G03

121,32 UAH

In Stock

SF-EPMF 10-G02

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=10 mm Carving inner=G 1/4

SF-EPMF 10-G02

159,90 UAH

In Stock

SF-EPMF 10-G03

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=10 mm Carving inner=G 3/8

SF-EPMF 10-G03

159,90 UAH

In Stock

SF-EPMF 10-G04

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=10 mm Carving inner=G 1/2

SF-EPMF 10-G04

166,80 UAH

In Stock

SF-EPMF 12-G03

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=12 mm Carving inner=G 3/8

SF-EPMF 12-G03

206,70 UAH

In Stock

SF-EPMF 12-G04

Collet fitting SF-EPMF for tube with internal thread and mounting nuts

Zanga diameter=12 mm Carving inner=G 1/2

SF-EPMF 12-G04

194,28 UAH

In Stock

Technical specifications

Tube O.D.

4 мм, 6 мм, 8 мм, 10 мм, 12 мм

Connection type

Collet fitting, With internal thread

Thread

G 1/2", G 1/4", G 1/8", G 3/8"

Body material

Plastic

Inlet pressure

9.5 bar

Variations

Union

Fitting type

Direct

Description

At Specialist, you can purchase a straight thread-to-tube fitting adapter SF-EPMF with a mounting thread and nut for screwing into equipment panels. This pneumatic fitting has two connections:

Quick-release collet connection for tube with an outer diameter of 4, 6, 8, 10, 12 or 16 mm. The collet clamping type is reusable and does not deform the tube, unlike other quick-release fittings;
Internal ("female") cylindrical pipe thread size G1/8", 1/4", 3/8" or 1/2" (inches).

For manufacturing the push-fitting SF-EPMF, bronze with a nickel-plated layer (body and thread) and technical plastic (collet part) is used. For sealing - NBR rings are used. This is the most common material for pneumatic and water equipment due to its temperature and chemical resistance.

The working temperature range is from minus 10 to plus 60° C. The plastic fitting SF-EPMF is designed for compressed air pressure up to 9.5 bars and also for water and other media compatible with the connector materials.
