Threaded impulse valve 2½″ for sleeve filters SV-RMD-ES-22NC-62

Do you have any questions about the product?
We will be happy to answer them in messengers

Threaded impulse valve 2½″ for sleeve filters SV-RMD-ES-22NC-62

Name: Threaded impulse valve 2½″ for sleeve filters SV-RMD-ES-22NC-62
Brand: Specialist
SKU: SV-RMD-ES-22NC-62-DC24V
Price: 4468.74 UAH
Availability: InStock

In Stock

Power Voltage

DC24V AC220V

Thread size

G 2-1/2

Model

Manufacturer

Specialist

from 4 468,74 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

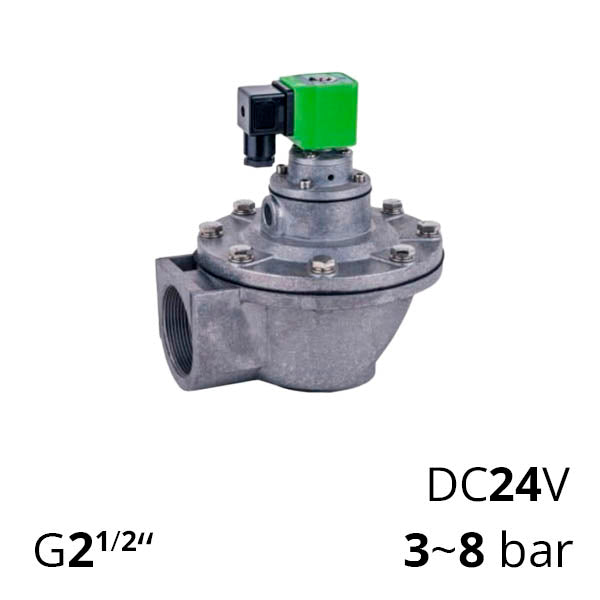

SV-RMD-ES-22NC-62-DC24V

Threaded impulse valve 2½″ for sleeve filters SV-RMD-ES-22NC-62

Power Voltage=DC24V Thread size=G 2-1/2

SV-RMD-ES-22NC-62-DC24V

4 468,74 UAH

In Stock

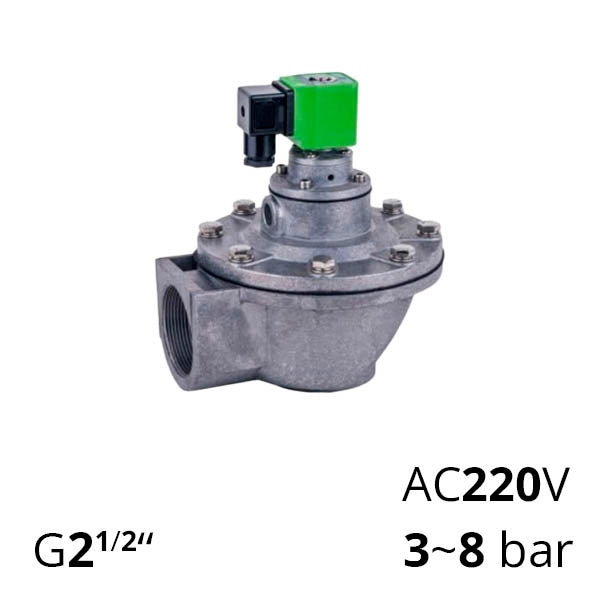

SV-RMD-ES-22NC-62-AC220V

Threaded impulse valve 2½″ for sleeve filters SV-RMD-ES-22NC-62

Power Voltage=AC220V Thread size=G 2-1/2

SV-RMD-ES-22NC-62-AC220V

4 468,74 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 2½″

Coil voltage

AC220V, DC24V

Nominal diameter

DN 62

Тип контролю

Electromagnetic

Description

Diaphragm Pulse Valve SV-RMD-ES-22NC-62 features a side outlet with a 2½ inch thread for line connection. This specialised pneumatic valve is designed for pulse blowoff and cleaning of bag filters with compressed air pressure up to 8 bar, activated by an electrical signal. Available with solenoid valve coils of 24v or 220v.

Benefits of inch Pulse Valve SV-RMD-ES-22NC-62 from Specialist:

provides reliable isolation of compressed air from blowpipes
design minimises pressure loss at maximum airflow
high efficiency of the entire pulse cleaning system

Parameters of Pneumatic Pulse Valve 2½ inch Model SV-RMD-ES-22NC-62
Operating Pressure	from 3 to 8 bar
Large Diaphragm Diameter	188 mm
Small Diaphragm Diameter	66 mm
Coefficient	Kv = 129.26; Cv = 150.85
Blow Area	8~10 m²
Inlet-Outlet	G 2½″
Weight	3.2 kg
