Pulse valve threaded 3/4″ for sleeve filters SV-RMD-ES-22NC-20

Do you have any questions about the product?
We will be happy to answer them in messengers

Pulse valve threaded 3/4″ for sleeve filters SV-RMD-ES-22NC-20

Name: Pulse valve threaded 3/4″ for sleeve filters SV-RMD-ES-22NC-20
Brand: Specialist
SKU: SV-RMD-ES-22NC-20-DC24V
Price: 1452.72 UAH
Availability: InStock

In Stock

Power Voltage

DC24V AC220V

Thread size

G 3/4

Model

Manufacturer

Specialist

from 1 452,72 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-RMD-ES-22NC-20-DC24V

Pulse valve threaded 3/4″ for sleeve filters SV-RMD-ES-22NC-20

Power Voltage=DC24V Thread size=G 3/4

SV-RMD-ES-22NC-20-DC24V

1 452,72 UAH

In Stock

SV-RMD-ES-22NC-20-AC220V

Pulse valve threaded 3/4″ for sleeve filters SV-RMD-ES-22NC-20

Power Voltage=AC220V Thread size=G 3/4

SV-RMD-ES-22NC-20-AC220V

1 452,72 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 3/4″

Coil voltage

AC220V, DC24V

Nominal diameter

DN 20

Тип контролю

Electromagnetic

Description

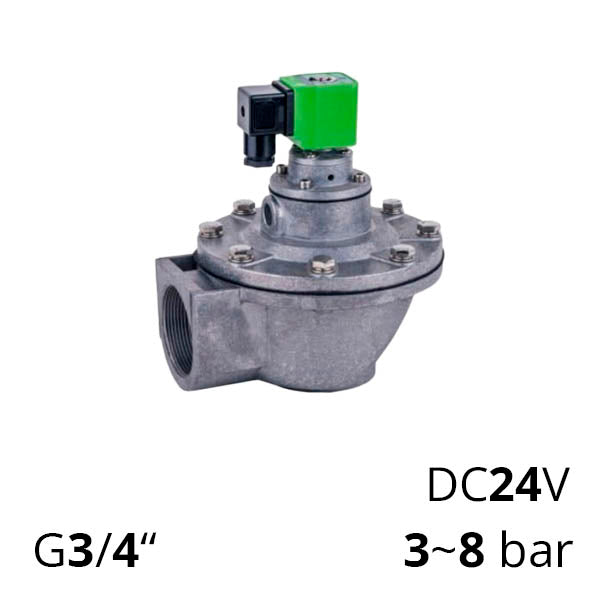

Membrane Pulse Valve SV-RMD-ES-22NC-20 features a side outlet with 3/4 inch threading for line connection. This is a specialised pneumatic valve designed for pulse blowing and cleaning bag filters with compressed air at pressures up to 8 bar, activated by an electrical signal. Customers have a choice of solenoid coil voltage: 24V or 220V.

Advantages of the threaded pulse valve SV-RMD-ES-22NC-20 from Specialist:

reliable isolation of compressed air from blow tubes
design minimises pressure loss at maximum airflow
high efficiency of the entire pulse cleaning system

Specifications of the pneumatic pulse valve 3/4 model SV-RMD-ES-22NC-20
Operating Pressure	from 3 to 8 bar
Membrane Diameter	80 mm
Coefficient	Kv = 17.55; Cv = 20.48
Blow Area	3.5~6 m²
Inlet-Outlet	G 3/4″
Weight	0.6 kg

PLC for Controlling Pulse Valve SV-RMD-ES-22NC-20

3/4 Pulse Valves are used for the regeneration of dust collecting filters in concrete mixing plants (BZU), silos, and cement dispensers. At "Specialist", you can also order a controller to control the blow cycle, activating air valves according to a programme — adjustable intervals between activation and optimal blow time — usually from 50ms to 5s.
