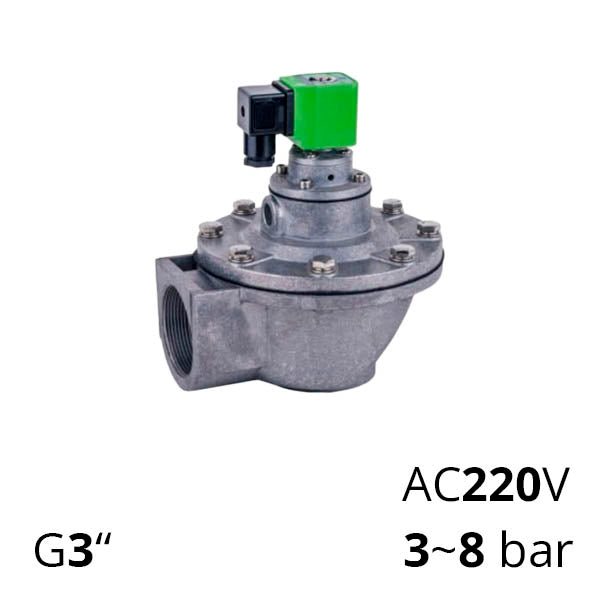

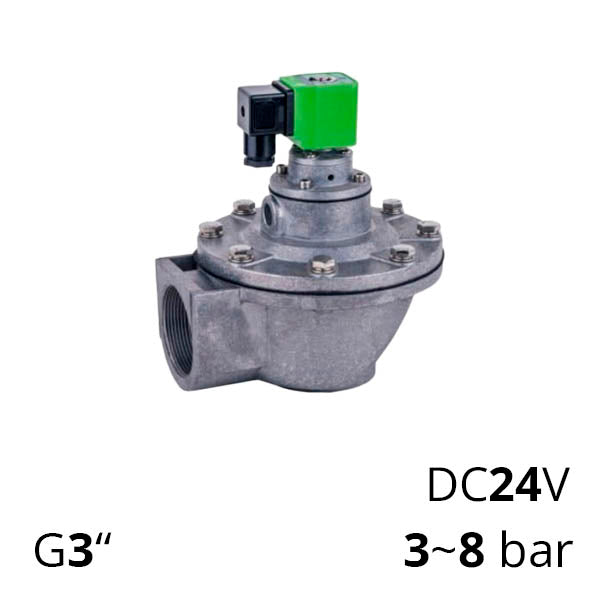

Membrane Pulse Valve SV-RMD-ES-22NC-76 features a side threaded outlet 3 inch for line connection. This is a specialised pneumatic valve designed for pulse blowing and cleaning of bag filters with compressed air at a pressure of up to 8 atmospheres, activated by an electric signal. The valve coil is available in 24V or 220V for customer choice.
Advantages of the inch pulse valve SV-RMD-ES-22NC-76 from Specialist:
| Operating Pressure | 3 to 8 bar |
|---|---|
| Larger Diaphragm Diameter | 202 mm |
| Smaller Diaphragm Diameter | 66 mm |
| Coefficient | Kv = 159.95; Cv = 186.66 |
| Blow Area | 37~65 m² |
| Inlet-Outlet | G 3″ |
| Weight | 4.05 kg |
