Air conditioning unit for ½″ compressor for 1.2 m²/min cleaning 0.01 μm

SCC-WS-FJ10-15-G-C-T-A is an air preparation system for compressors up to 1.2 m³/min with high pressure up to 16 bar. The compressed air unit has a thread fitting size of ¾-½ inches and for maximum efficiency, it is recommended to install it immediately after a refrigerated cooler, or in its absence, after the compressor's receiver. The moisture-oil separation filters clean the compressed air to a degree of 0.01 μm. Filtration is carried out in four stages - starting with a cyclone separator, from a coarse filter 3 μm to the fine filter up to 0.01 μm. This structural principle allows:

• Less frequent system stoppages for maintenance (filter replacement)
• Reduced costs on the most expensive fine cleaning cartridges
• Efficient removal of all types of contaminants: moisture, dust, and solid particles, as well as compressor oil residues
• Higher energy efficiency — minimized pressure losses, the differential manometer shows the drop and signals the need to replace clogged filter elements

The professional assembly cost of air filtration filters for compressors up to 1200 l/min includes mounts, taps, differential manometer, and installed cartridges at 3 μm, 1 μm and 0.01 μm.

Air purification system for compressor 0.01 μm

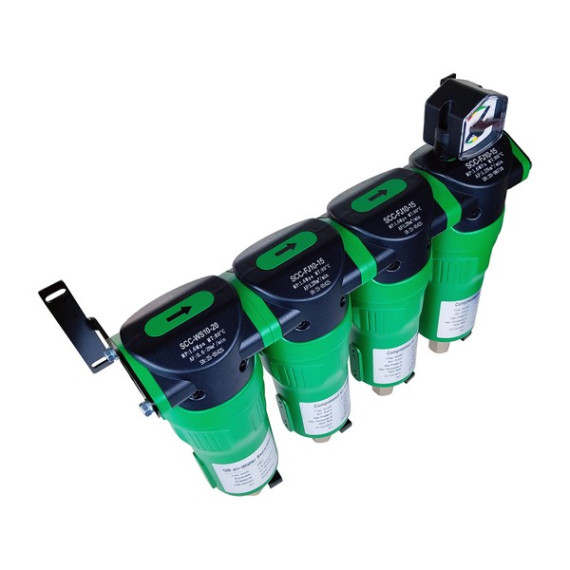

The compressed air filtration and purification kit consists of 4 devices:

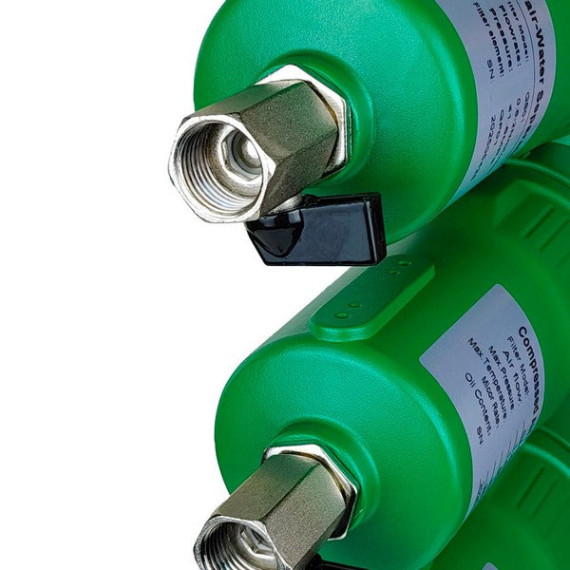

• SCC-WS10-20 — moisture separator for compressor ¾″ cyclone type. It is an air and water separator that works without consumables — it removes the majority of droplet moisture carried by the compressed air flow. Due to the dryer, the filter cartridges are less polluted. The kit includes a manual valve for draining condensate. For maximum efficiency, it should be installed not immediately after the compressor, but after the refrigerated compressor air cooler such as SCC-MPWF-20.
• SCC-FJ10-15(C) moisture separating filter for compressor ½″ with replaceable filter element inside "C" at 3 μm, with a valve for condensate discharge.
• SCC-FJ10-15(T) the same air filter ½″ as the previous one, but with the "T" filter element at 1 μm.

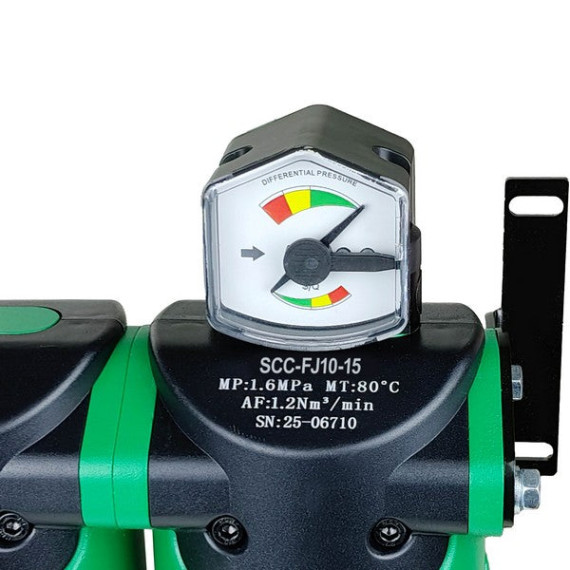

• SCC-FJ10-15-D(A) with "A" filter element at 0.01 μm, a valve, and a differential manometer.

At Specialist company, you can purchase air preparation for compressor 0.01 μm in one unit.
