Pulse valve threaded 1½″ for bag filters SV-RMD-ES-22NC-40

Do you have any questions about the product?
We will be happy to answer them in messengers

Pulse valve threaded 1½″ for bag filters SV-RMD-ES-22NC-40

Name: Pulse valve threaded 1½″ for bag filters SV-RMD-ES-22NC-40
Brand: Specialist
SKU: SV-RMD-ES-22NC-40-DC24V
Price: 2354.28 UAH
Availability: InStock

In Stock

Power Voltage

DC24V AC220V

Thread size

G 1-1/2

Model

Manufacturer

Specialist

from 2 354,28 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

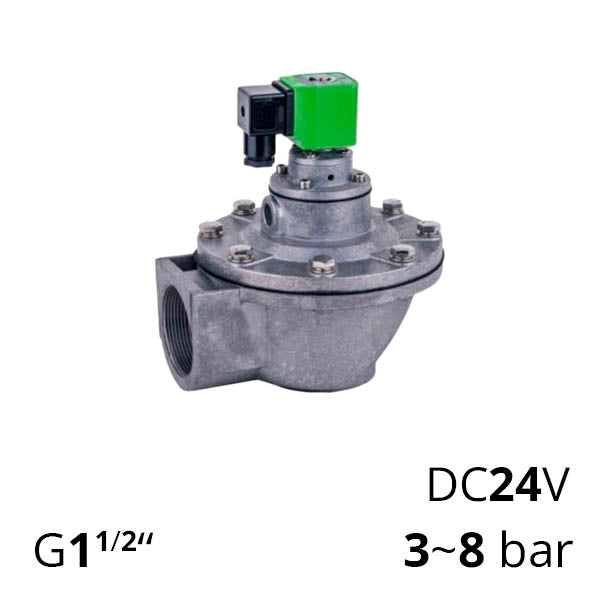

SV-RMD-ES-22NC-40-DC24V

Pulse valve threaded 1½″ for bag filters SV-RMD-ES-22NC-40

Power Voltage=DC24V Thread size=G 1-1/2

SV-RMD-ES-22NC-40-DC24V

2 354,28 UAH

In Stock

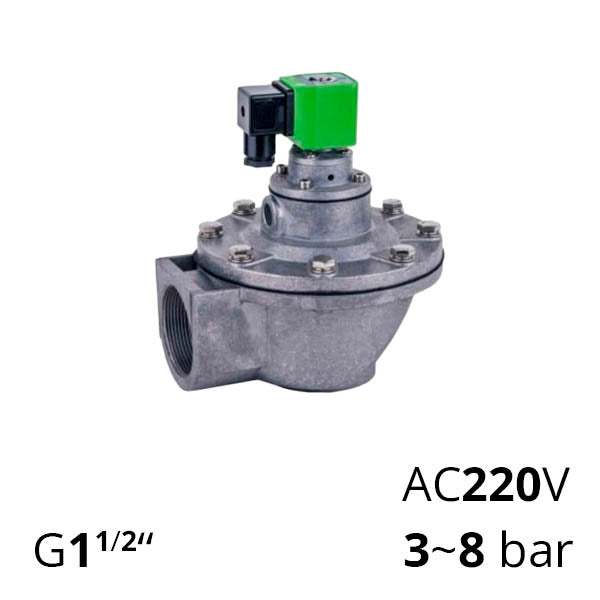

SV-RMD-ES-22NC-40-AC220V

Pulse valve threaded 1½″ for bag filters SV-RMD-ES-22NC-40

Power Voltage=AC220V Thread size=G 1-1/2

SV-RMD-ES-22NC-40-AC220V

2 354,28 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1½

Coil voltage

AC220V, DC24V

Nominal diameter

DN 40

Тип контролю

Electromagnetic

Description

Membrane Pulse Valve SV-RMD-ES-22NC-40 features a side outlet with 1-1/2 inch thread for line connection. This is a specialised pneumatic valve designed for pulse blowing and cleaning of bag filters with compressed air pressure up to 8 bar, activated by an electric signal. Customers can choose a solenoid coil of 24V or 220V.

Advantages of the Pulse Valve SV-RMD-ES-22NC-40 from Specialist:

provides reliable compressed air isolation from blowing pipes
design with minimal pressure loss at maximum air flow
high efficiency of the entire pulse cleaning system

Pneumatic Pulse Valve Parameters 1½ inch Model SV-RMD-ES-22NC-40
Working Pressure	from 3 to 8 bar
Diaphragm Diameter (Large)	112 mm
Diaphragm Diameter (Small)	66 mm
Coefficient	Kv = 45.82; Cv = 53.47
Blowing Area	12~16 m²
Inlet-Outlet	G 1-1/2″
Weight	0.75 kg
