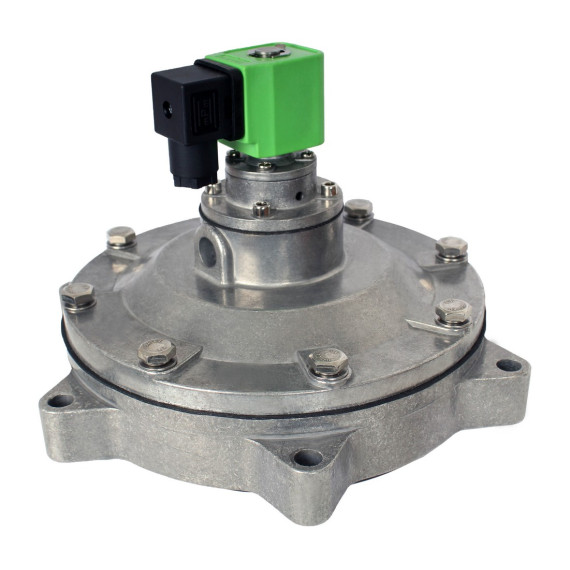

Impulse valve flange DU50 for shaking bag filters SV-RMDF-ES-22NC-50

Name: Impulse valve flange DU50 for shaking bag filters SV-RMDF-ES-22NC-50
Brand: Specialist
SKU: SV-RMDF-ES-22NC-50
Price: 5334.78 UAH
Availability: InStock

In Stock

Power Voltage

DC24V AC220V

Diameter of conditional passage

Model

Manufacturer

Specialist

from 5 334,78 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-RMDF-ES-22NC-50

Impulse valve flange DU50 for shaking bag filters SV-RMDF-ES-22NC-50

Diameter of conditional passage=50 Power Voltage=DC24V

SV-RMDF-ES-22NC-50

5 334,78 UAH

In Stock

SV-RMDF-ES-22NC-50

Impulse valve flange DU50 for shaking bag filters SV-RMDF-ES-22NC-50

Diameter of conditional passage=50 Power Voltage=AC220V

SV-RMDF-ES-22NC-50

5 334,78 UAH

In Stock

Technical specifications

Connection type

With internal thread

Coil voltage

AC220V, DC24V

Nominal diameter

DN 50

Тип контролю

Electromagnetic

Description

The impulse valve SV-RMDF-ES-22NC-50 is a diaphragm solenoid valve 2/2 normally closed, which has a flanged connection and is designed for pneumatic impulse cleaning of bag filters with a jet stream of compressed air at high pressure from 3 to 8 bar. The solenoid pulse valve operates on an electric signal to the coil at DC 24 V or AC 220 Volt.

This air valve provides:

reliable isolation of compressed air from inflatable tubes
minimal pressure loss at maximum air flow, allowing for a stronger shaking impulse compared to DN50 (DN50) valves of the old angular design
economy and high efficiency of the entire reverse-pulse cleaning system

The impulse cleaning valve is used for regenerating bag filters from dust and particles of concrete, flour, and in other industrial sectors.
