Threaded impulse valve 1″ for sleeve filters SV-RMD-ES-22NC-25

Name: Threaded impulse valve 1″ for sleeve filters SV-RMD-ES-22NC-25
Brand: Specialist
SKU: SV-RMD-ES-22NC-25-DC24V
Price: 1748.34 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G 1

Model

Manufacturer

Specialist

from 1 748,34 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-RMD-ES-22NC-25-DC24V

Threaded impulse valve 1″ for sleeve filters SV-RMD-ES-22NC-25

Power Voltage=DC24V Thread size=G 1

SV-RMD-ES-22NC-25-DC24V

1 748,34 UAH

In Stock

SV-RMD-ES-22NC-25-AC220V

Threaded impulse valve 1″ for sleeve filters SV-RMD-ES-22NC-25

Power Voltage=AC220V Thread size=G 1

SV-RMD-ES-22NC-25-AC220V

1 748,34 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 25

Тип контролю

Electromagnetic

Description

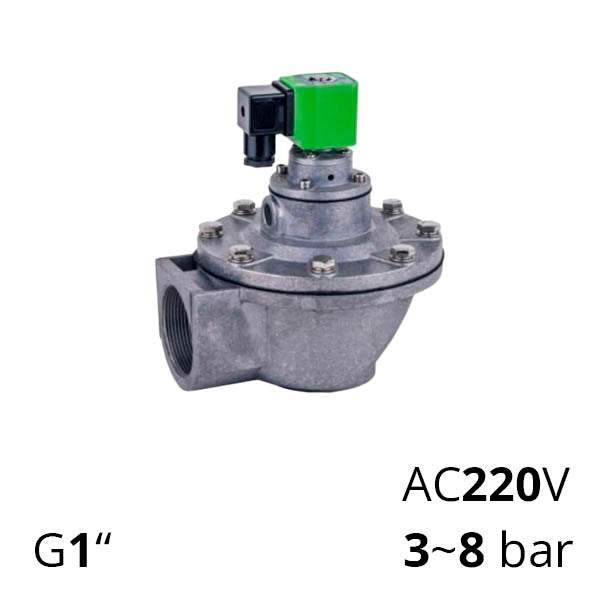

Pulse diaphragm valve SV-RMD-ES-22NC-25 has a side outlet with 1 inch thread for line connection. This is a specialised pneumatic valve designed for pulse blowback and cleaning of bag filters with compressed air at a pressure of up to 8 atmospheres, which opens from an electrical signal. Customers can choose between an electromagnetic coil of the valve with 24V or 220V.

Advantages of the inch pulse valve SV-RMD-ES-22NC-25 from Specialist:

provides reliable isolation of compressed air from blowpipes
design with minimal pressure loss at maximum air flow
high efficiency of the entire pulse cleaning system

Parameters of pneumatic pulse valve 1 inch model SV-RMD-ES-22NC-25
Operating pressure	from 3 to 8 bar
Diaphragm diameter	96 mm
Coefficient	Kv = 26.16; Cv = 30.53
Blow area	8~10 m²
Inlet-outlet	G 1″
Weight	0.75 kg

In addition to pulse valves, you can also purchase PLCs from us for managing the regeneration system of fabric bag filters for cement silos and dispensers, concrete mixing plants (BZU).

How does the pulse valve for pneumatic filter cleaning work?

The solenoid valve is connected to an air duct with a pressure of from 3 to 8 atmospheres. A controller is used to manage the valve, which will close the current circuit every 10-30 seconds to power the solenoid for 50-5000 ms. A short-term (pulse) supply of a large volume of air at high pressure causes the dust filter to shake and regenerate.
