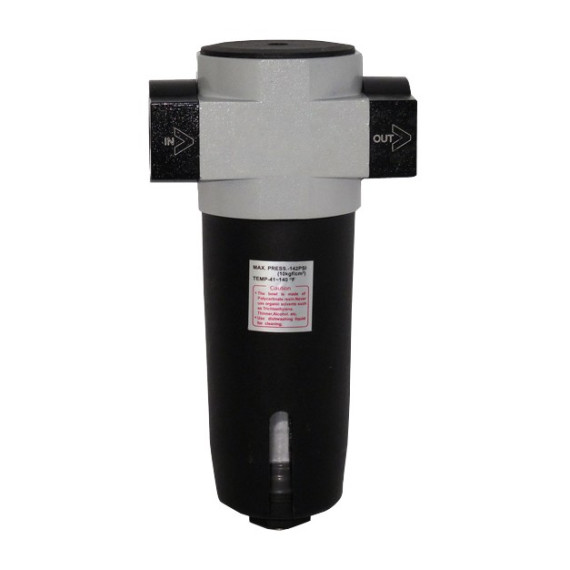

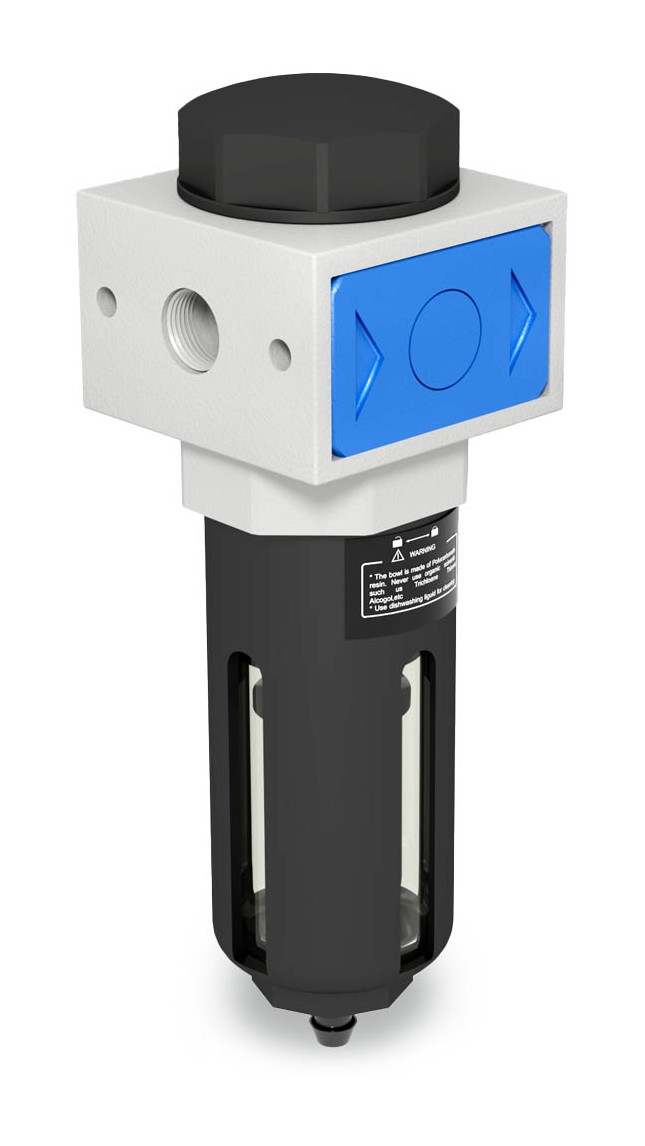

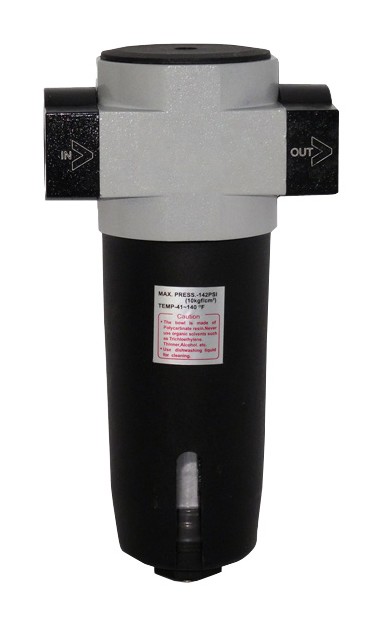

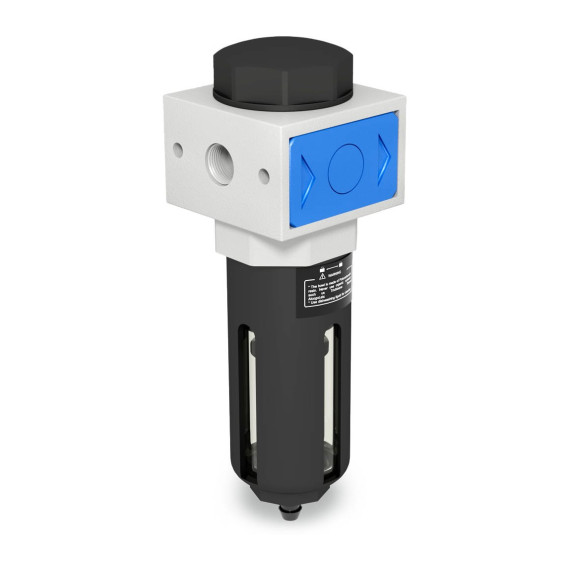

Compressed air filter 1″ 25 μm, 10 bar, 8100 l/min (SA-FU60-25)
In Stock
Product Code:
SA-FU60-25
Brand:
Specialist
2 495,10 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Technical specifications
Description
Industrial air filter 1″ for pneumatics SA-FU60-25 is intended for moisture separation and removal of solid particles from compressed air 25 µm, ensuring normal operation and long service life of pneumatic tools, valves, distributors and cylinders. The air filters of the SA-FU60-25 series can be used in pneumatic systems with a pressure of up to 10 bar (up to 12 bar when equipped with a metal protective cup). They connect to the pneumatic line using a G1″ inch thread.
Scope of supply SA-FU60-25
- air filter SA-FU60-25
- a replaceable 25 µm filter element installed in the filter
- semi-automatic condensate drain installed in the filter bowl
- plastic cup mounted on the bowl for extra impact protection
- mounting bracket for wall or other vertical surfaces
Advantages SA-FU60-25
- the price of the SA-FU60-25 air filters is lower than that of the SA-FN series;
- the filtration rate of the device can be increased to 5 µm by ordering the appropriate filter element;
- in contrast to similar filters from other manufacturers, in the filter SA-FU60-25 an automatic condensate drain device SA-ZDPS can be installed at any time without changing the condensate collection bowl;
- the filters of the SA-FU60-25 series can be combined without fittings with pressure regulators of the SA-RU series, filter-regulators SA-WU, air preparation units SA-CU, lubricators SA-LU.
| Model | SA-FU60-25 |
|---|---|
| Connection thread | G1″ |
| Nominal flow rate (maximum) | 8100 nl/min |
| Working medium | Compressed air |
| Input pressure | up to 10 bar |
| Filtration fineness | 25 µm (standard), 5 µm (on request) |
| Condensate drain | Semi-automatic (standard), automatic (additional equipment with SA-ZDPS device) |
| Presence of protective cup | Yes |
| Material of protective cup | Polycarbonate (standard), metal (on request) |
Additional information about the filters SA-FU60-25
Do not select the filter size "for reserve" — with too low air consumption, moisture separation is inefficient.
The filter is also capable of only separating droplet water, meaning that hot air compressed in the compressor must be pre-cooled to condense a fraction of the water in a vapor state. For effective moisture removal, refrigerated dryers or adsorbers should be installed after the compressor.
This type of filter by default has a semi-automatic condensate drain from the bulb — after the pneumatic system is turned off and the pressure drops to 2 bar, the condensate drain valve opens and moisture is removed from the filter. Do not allow the filter bowl to fill above the maximum mark. For continuously operating pneumatic systems or with long switching intervals, we recommend ordering an automatic condensate level drain SA-ZDPS together with the filter.
Filter elements made of bronze or propylene are consumables and must be replaced with a new one after contamination. The filter's filtration level can be increased by replacing the standard filter element with a 5 µm filter element, which you will find in the related products. When using 5 µm filtration, it is advisable to install an additional pre-filter of 25 µm.
