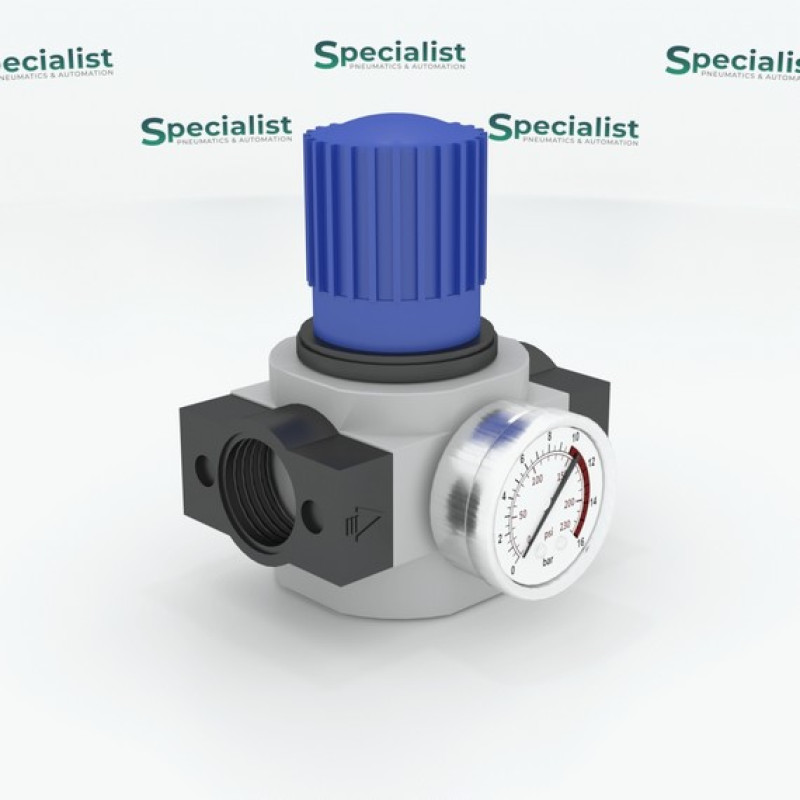

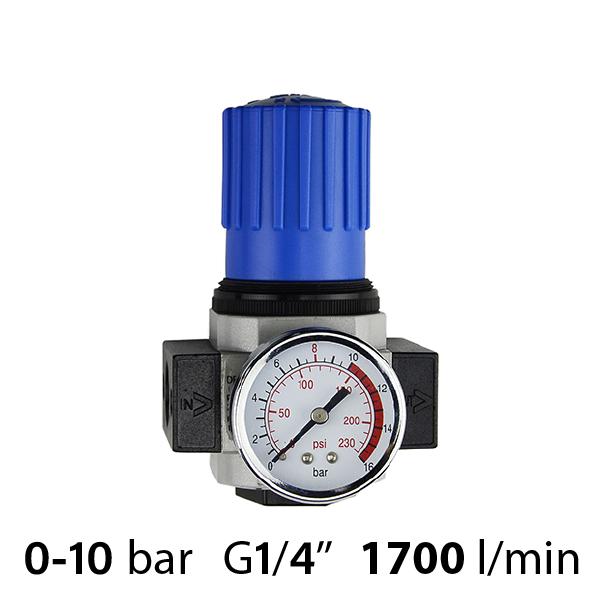

Air pressure regulator with pressure gauge M5~1″, 10 bar, up to 11500 l/min (SA-RN series)
In Stock
Thread size
Model
SA-RN20-08
Manufacturer
Specialist
from 1 253,64 UAH
Qty:
Do you have any questions about the product?
We will be happy to answer them in messengers
Delivery of goods
More details
New Post Office and address
≈ 250 UAH / Free for orders over 5,000 UAH
2-4 days
By courier in Ukraine
≈ 350 UAH / Free for orders over 5,000 UAH
1-2 days
Pickup from our warehouse
Free
Today, after 2:00 PM
Payment
More details
Models
Found 3 variants
Name
Model
Price
Availability
Qty
Action
SA-RN20-08
Air pressure regulator with pressure gauge M5~1″, 10 bar, up to 11500 l/min (SA-RN series)
Thread size=G 1/4
SA-RN20-08
1 253,00 UAH
In Stock

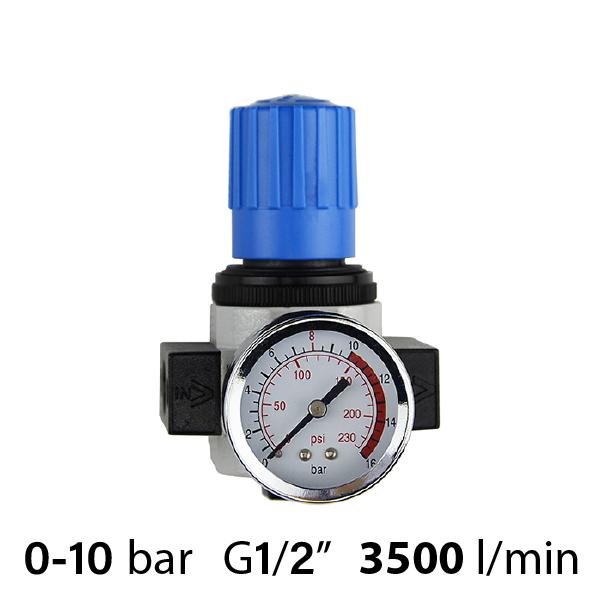

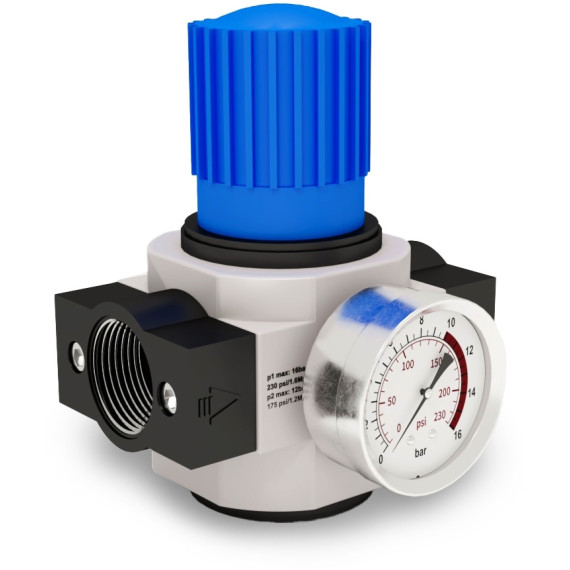

SA-RN40-15
Air pressure regulator with pressure gauge M5~1″, 10 bar, up to 11500 l/min (SA-RN series)
Thread size=G 1/2
SA-RN40-15
2 076,00 UAH
In Stock

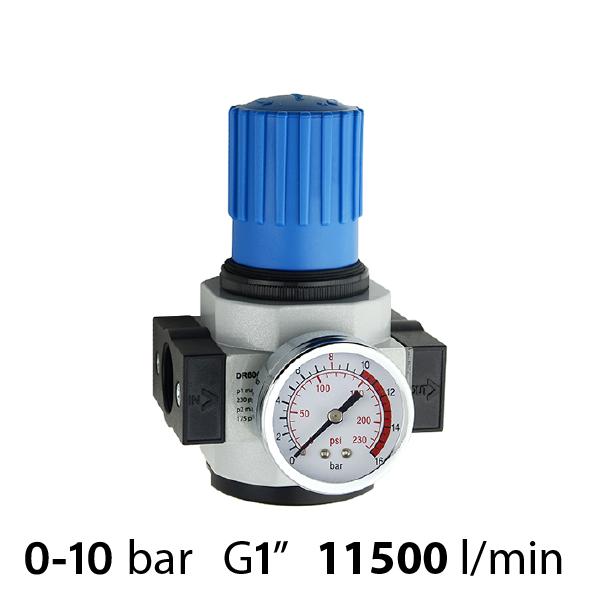

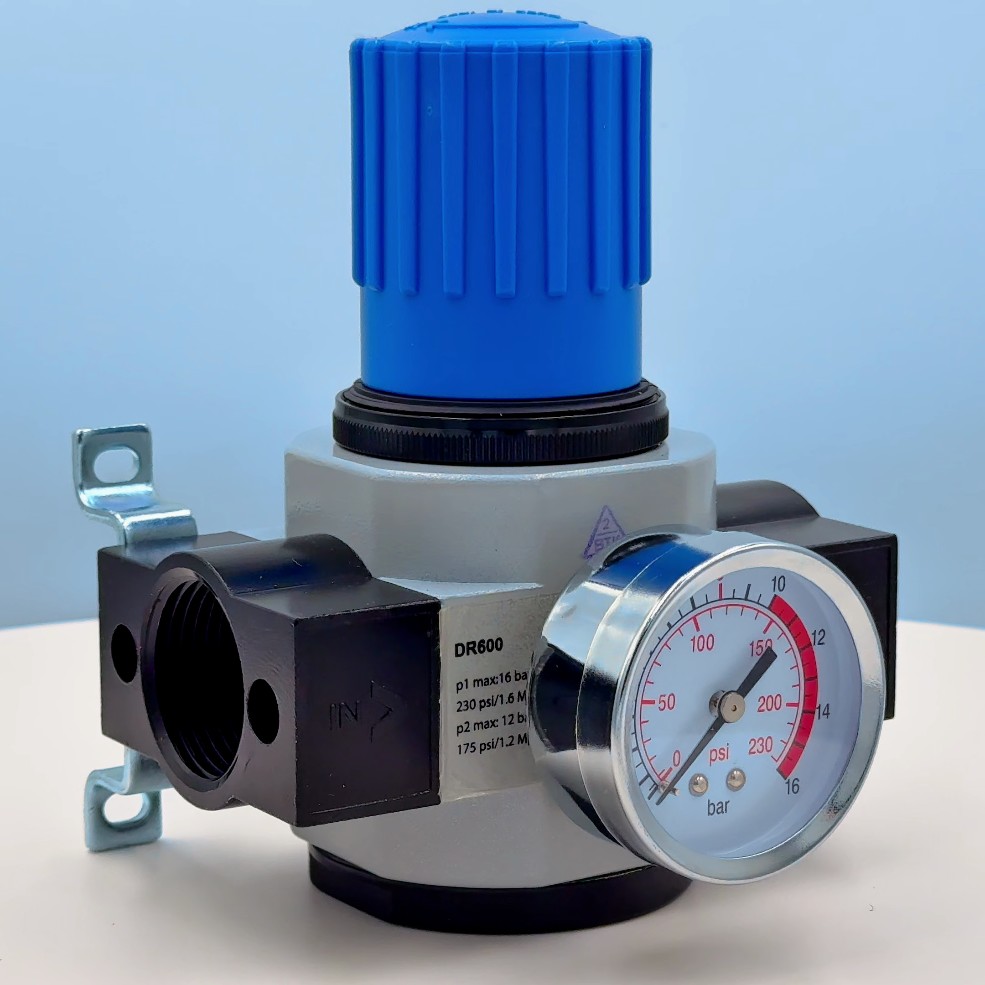

SA-RN60-25
Air pressure regulator with pressure gauge M5~1″, 10 bar, up to 11500 l/min (SA-RN series)
Thread size=G 1
SA-RN60-25
3 299,00 UAH
In Stock
Request a variant
Fill in the form and we will get back to you regarding this variant.
Technical specifications
Description
The SA-RN regulator is designed to reduce the high variable pressure after the compressor before supplying to the pneumatic tool and to maintain the output pressure at a set level within the range of 1.5 to 8.5 bar. This regulator can be used on any industrial equipment or tool where pressure regulation accuracy of 0.5 bar is acceptable.

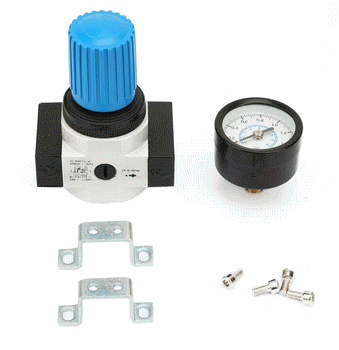

Delivery set:
- Pneumatic diaphragm-type pressure regulator.
- Gauge.
- Mounting bracket for vertical surface installation.
Advantages of pneumatic reducers SA-RN:
- Increased air flow.
- Reliable group assembly system.
- Modern design.
- Optimal balance of functionality, reliability, durability, and price.
| Model | SA-RN10-M5 | SA-RN10-06 | SA-RN20-06 | SA-RN20-08 | SA-RN20-10 | SA-RN40-10 | SA-RN40-15 | SA-RN40-20 | SA-RN60-20 | SA-RN60-25 |
|---|---|---|---|---|---|---|---|---|---|---|
| Thread for input-output connection | M5 | G1/8" | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Nominal flow rates (maximum) | 500 nl/min | 1700 nl/min | 3500 nl/min | 11500 nl/min | ||||||
| Thread for gauge connection | M5 | G1/8" | G1/4" | |||||||
| Operating pressure | from 1.5 to 8.5 bar | |||||||||
| Operating medium | Compressed air | |||||||||
| Operating temperature | from 0 to +60 °C (with dry air from -10 °C) | |||||||||
Additional information
For all regulators in this series, the maximum pressure is 12 bar. This regulator consists of an aluminium body with powder coating and a plastic pressure control knob.
Please note that this regulator is fitted with an excess pressure relief valve on the consumer side. Therefore, these regulators are not recommended for water pressure regulation.
For quick and convenient disconnection and connection of the air preparation block to the pipeline, use the valve SV-I which can be found among related products.
