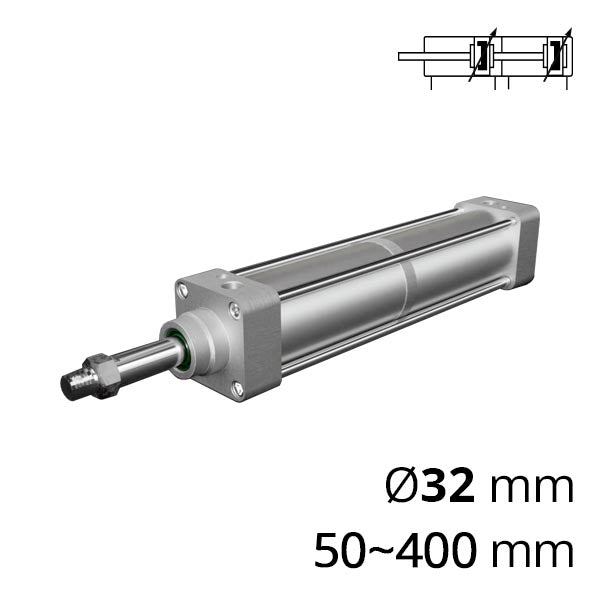

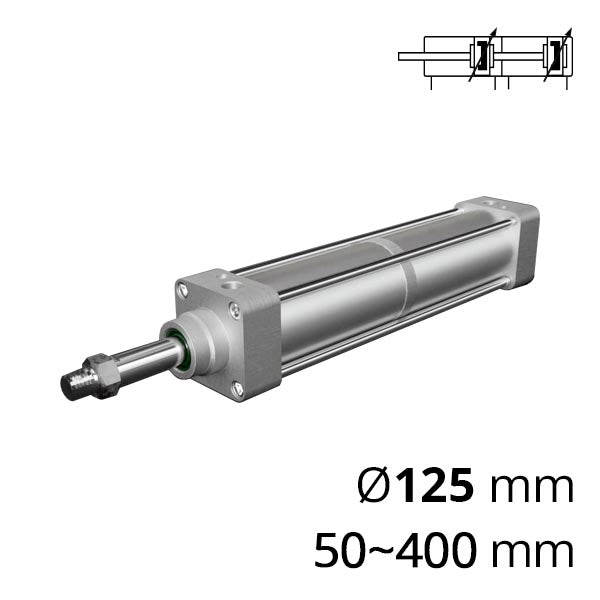

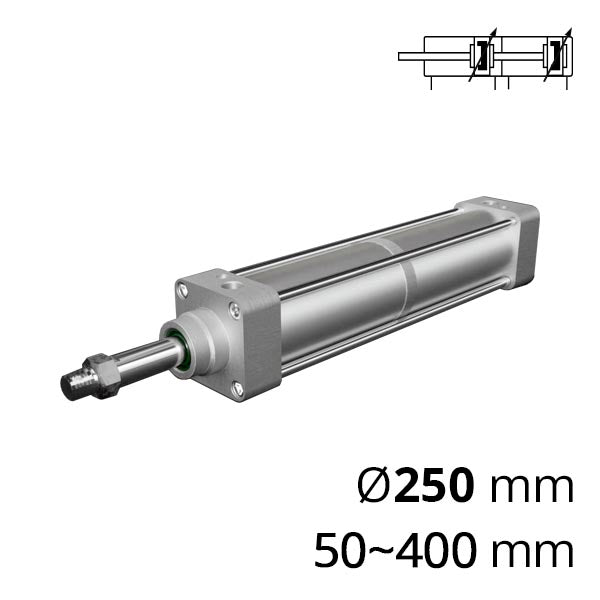

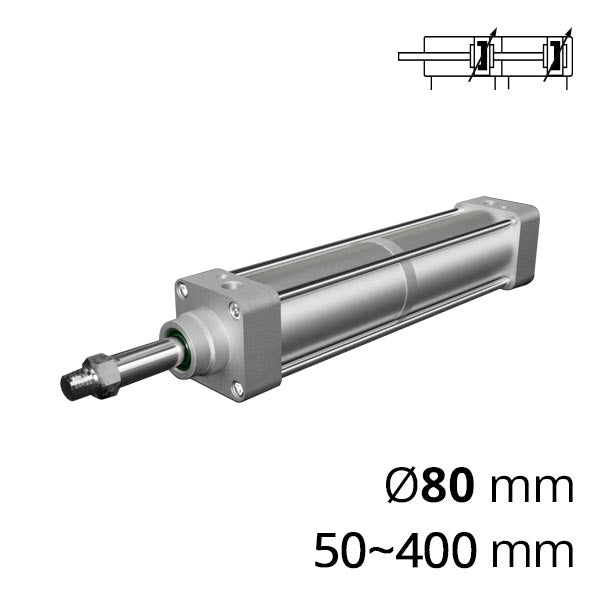

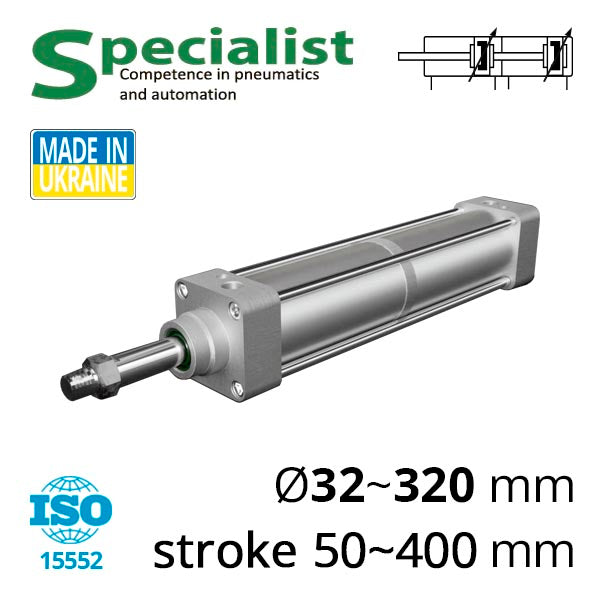

The tandem pneumatic cylinder series SC-DNGT is a double-acting cylinder according to ISO 6431/15552, capable of moving loads with a force of 43'972 Newtons (Ø200 mm, 9 bar), which is 1.8 times more than the force of a single-acting cylinder SC-DNG.
Tandems SC-DNGT have two pistons with diameters of 32 to 320 mm. The stroke length of the pneumatic cylinders ranges from 5 to 1500 mm depending on the selected diameter. The cylinder body is made of aluminium, while the rod is made of chromium-plated carbon steel for durability (stainless on request).
The built-in adjustable damper in the cylinder ensures smooth stopping of the piston at the end of the stroke to absorb the impact force on the front or rear cover. By using a special screw, the damping can be adjusted to obtain a higher or lower braking degree of the piston. Cylinder speed up to 1 m/s;
The air tandem cylinder is divided into two sections, each having two threaded ports from G1/8 to 1/2″. for supplying compressed air at a pressure of up to 12 bar.
| Piston diameter, mm | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Connecting air thread | G1/8″ | G3/8″ | G1/2″ | — | |||||||
| Maximum stroke length, mm | 1000 | 1200 | 1500 | — | |||||||
| Damping, mm | 24 | 22 | 32 | 42 | — | ||||||
| Action | Double-acting | ||||||||||
| Type | Tandem pneumatic cylinder | ||||||||||
| Standard | ISO15552, ISO6431 | ||||||||||
| Magnet on piston | With magnet (default) | ||||||||||
| Type of magnetic sensor for package | SC-DMS-G or SC-CMS-G | ||||||||||
| Type of mount for the magnetic sensor for package | SC-SH-32 | SC-SH-63 | SC-SH-80 | SC-SH-125 | — | ||||||
| Working environment | Compressed air, filtration fineness 40 µm | ||||||||||
| Working pressure range | 0.1-10 bar | ||||||||||
| Maximum input pressure | 12 bar | ||||||||||
| Working temperature range | -10...70 ℃ (with dry air without moisture) | ||||||||||
Based on the SC-DNGT pneumatic cylinders, we can manufacture tandem and triad pneumatic cylinders to increase the force.
