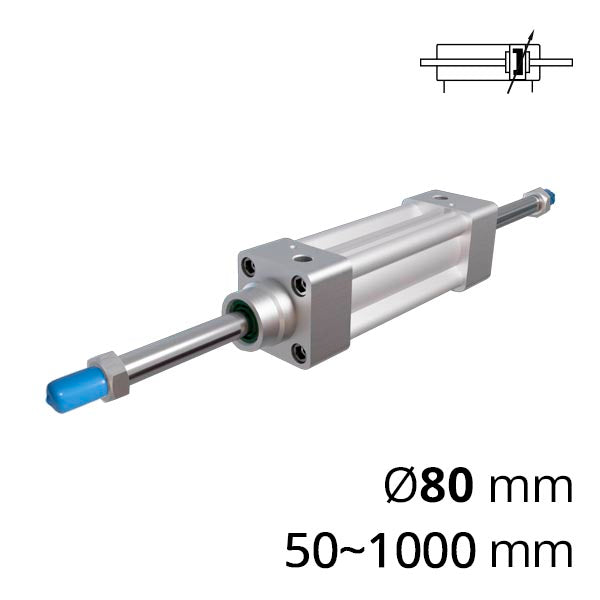

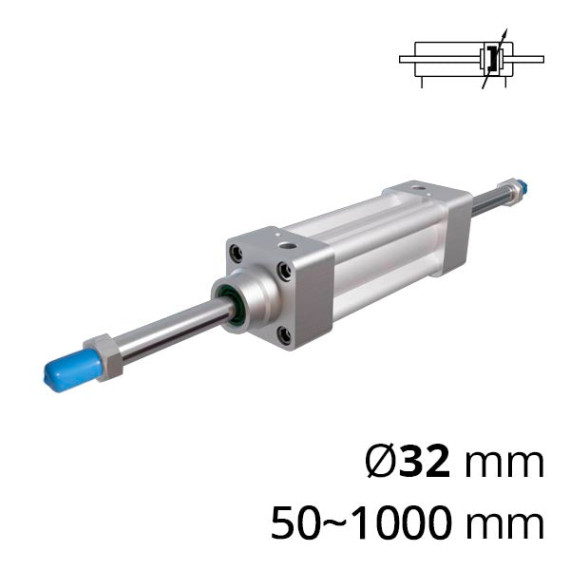

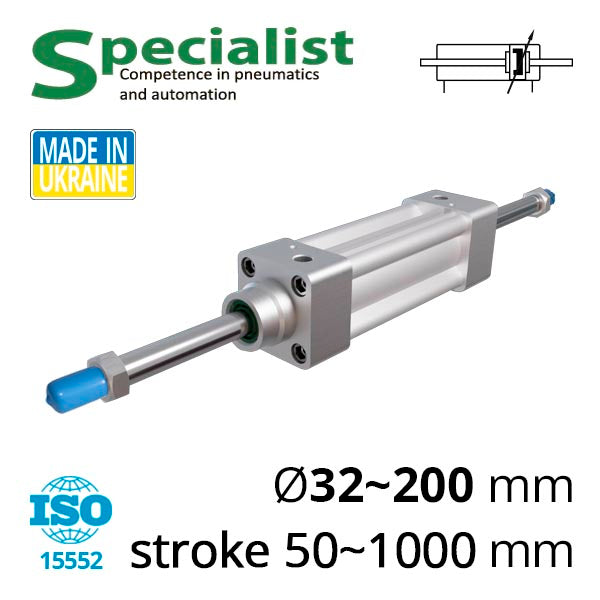

The SC-DNGD Series double-acting pneumatic cylinder with a through rod is a power pneumatic piston that can move fixed loads at a speed of up to 1 m/sec or press with great force. The series is interchangeable with pneumatic cylinders with a through rod, also manufactured in accordance with standardized overall and mounting dimensions according to ISO 15552 (ISO 6431, VDMA 24562).
ISO 6431/15552 Pneumatic Actuators are made with a piston diameter of from 32 to 320 mm. The stroke length of double-ended rod air cylinders is from 5 to 1500 mm (depends on the piston diameter). This series features a round barrel with exposed tie rods.
The built-in adjustable damper in the pneumatic piston ensures a smooth stop at the end of the stroke to absorb the blow of the piston against the front or rear cover. By using a special screw, the damping can be adjusted to achieve a higher or lower degree of piston braking.
Double action implies controlling the extension-retraction of the rod by supplying-exhausting compressed air through two threaded ports from G1/8 to 1/2β³. Pressure supply up to 12 bar is allowed.
Technical specifications of the SC-DNGD double-ended rod pneumatic cylinder
|
Piston Diameter, mm
|
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
320 |
| Air connection thread |
G1/8β³ |
G3/8β³ |
G1/2β³ |
β |
|
Maximum Stroke Length, mm
|
1000 |
1200 |
1500 |
β |
|
Damping, mm
|
24 |
22 |
32 |
42 |
β |
| Action |
Double-acting |
| Type |
With through rod |
| Standard |
ISO15552, ISO6431 |
| Magnet on piston |
With magnet (default), without magnet (on request) |
| Magnetic sensor type for completion |
SC-DMS-G or SC-CMS-G |
| Type of magnetic sensor bracket for completion |
SC-SH-32 |
SC-SH-63 |
SC-SH-80 |
SC-SH-125 |
β |
| Operating Medium |
Compressed air, filtration fineness 40 ΞΌm |
| Operating pressure range |
0.1-10 bar |
| Maximum input pressure |
12 bar
|
| Operating temperature range |
-10...70 β (in dry air without moisture) |
