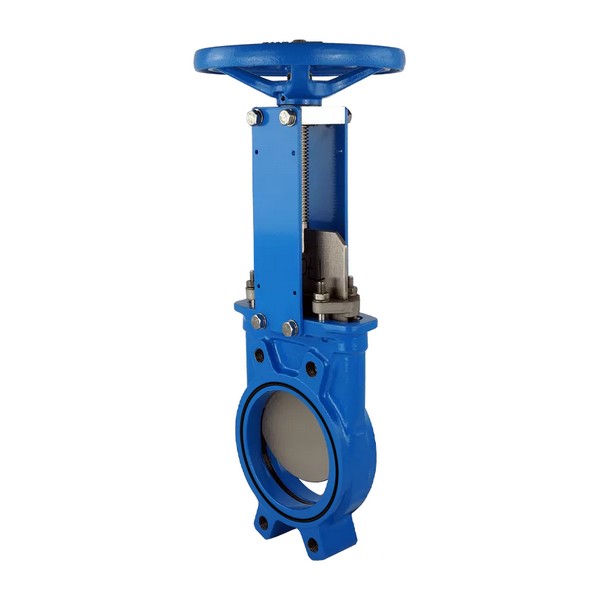

Knife gate latch DU 65 cast iron SCBF-PZ673X-10JC-65 with flywheel

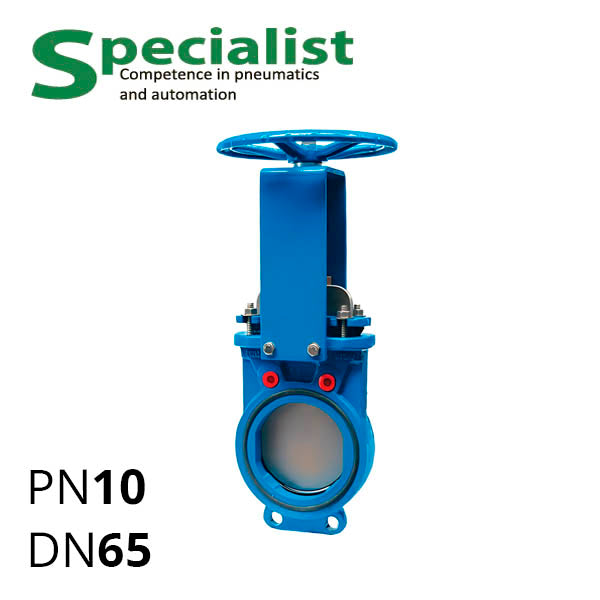

Model SCBF-PZ673X-10JC-65-M is a cast wedge valve flanged DN65 PN10 with a rising stem and handwheel for manual closure. This bidirectional knife valve DN 65 from cast iron is designed for operation with working media without pressure or under pressure 9.8 bar and temperature up to 80°C, including for gas, liquids, and bulk materials.

The company “Specialist” offers production of knife gate valves based on series from the online store, but with the necessary modifications for the client: with rubber coating of the wedge, stainless steel, more compact without a rising stem, with high-temperature rubber EPDM or Viton. We will select materials for your working environment.

Features of the standard gate SCBF-PZ673X-10JC-65-M with DN65

• Reinforced NBR. Rubber seal reinforced with steel wire around the entire perimeter of the seat under the wedge - helps retain shape, increases life span, and tightness.
• Rising stem. Serves as an indicator of the DN 65 valve position and also a more reliable construction.
• WCB. Although WCB is called cast iron, it is actually cast carbon steel — it is more impact-resistant and withstands high pressure, which is important for industrial shut-off valves.
• Standard flange connection: PN10, PN16, 10K, 150LB, TABLED, DIN.
• Working pressure: 10 kg/cm² for DN65. When converting pressure to other units 9.8 bar (10 bar) or 0.98 MPa (1 MPa). Designation PN 10.
