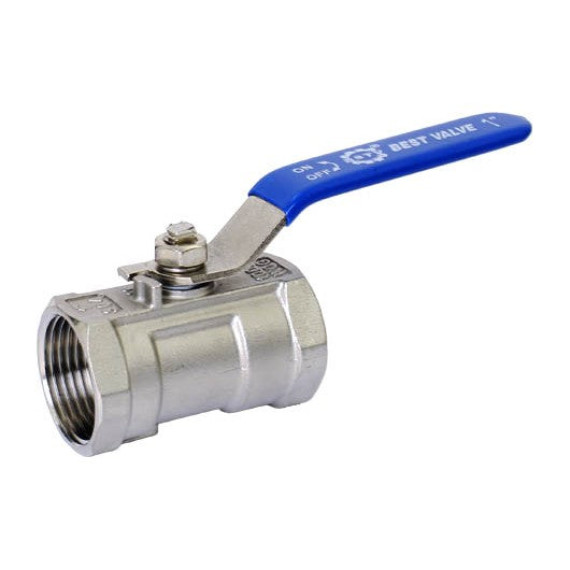

Ball valve coupling 1/2″ stainless steel DU15 with handle SCBV-Q601-16FA-15

Name: Ball valve coupling 1/2″ stainless steel DU15 with handle SCBV-Q601-16FA-15
Brand: Specialist
SKU: SCBV-Q601-16FA-15
Price: 358.62 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1/2

Model

Manufacturer

Specialist

from 358,62 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q601-16FA-15

Ball valve coupling 1/2″ stainless steel DU15 with handle SCBV-Q601-16FA-15

Diameter of conditional passage=15 Thread size=G 1/2

SCBV-Q601-16FA-15

358,62 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1\2"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Nominal diameter

TWO 15

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

Handled

Description

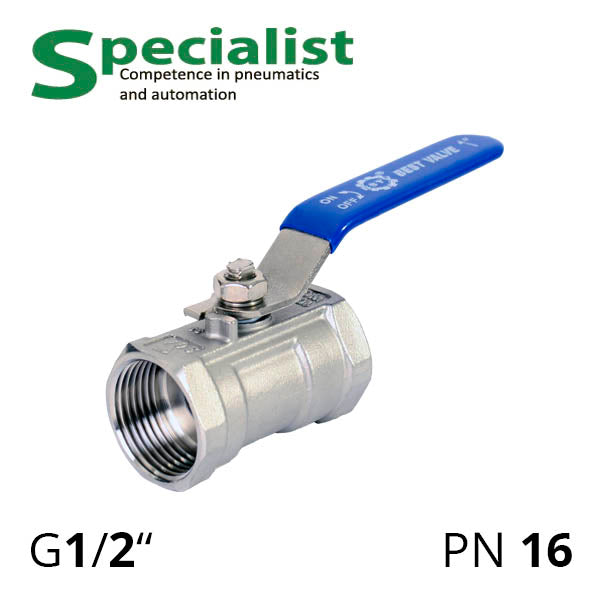

The SCBV-Q601-16FA-15 series is a ball valve FF size 1/2″, diameter — reduced bore, with manual drive, made from stainless steel AISI 304. These ball valves are allowed to be mounted on domestic hot and cold water pipes, for steam, for food (drinks, drinking water, syrup), industrial pipelines for a range of petroleum products (without sulfur, chlorine and other aggressive impurities, and substances not compatible with PTFE)

The reduced bore type of threaded ball valve SCBV-Q601-16FA-15 has a narrowing and smaller ball size compared to the pipeline diameter. The body is one-piece and non-detachable made from stainless steel 201. Markings on the shut-off valve:

1/2″ (corresponds to DN 15 mm)
304 (grade of stainless steel for the ball)
1000 WOG - designed for water, oils, and gaseous substances; maximum pressure - 16 bar (1.6 MPa) (depends on temperature).

The PTFE ball valve with Teflon seals withstands operating temperatures from minus 40 to 180 degrees Celsius (without liquid freezing).
